Maintenance work on the carrier
7.6 Transmission
25.11.2016
Maintenance manual 3 302 364 en 7 - 43
GMK 4100L-1

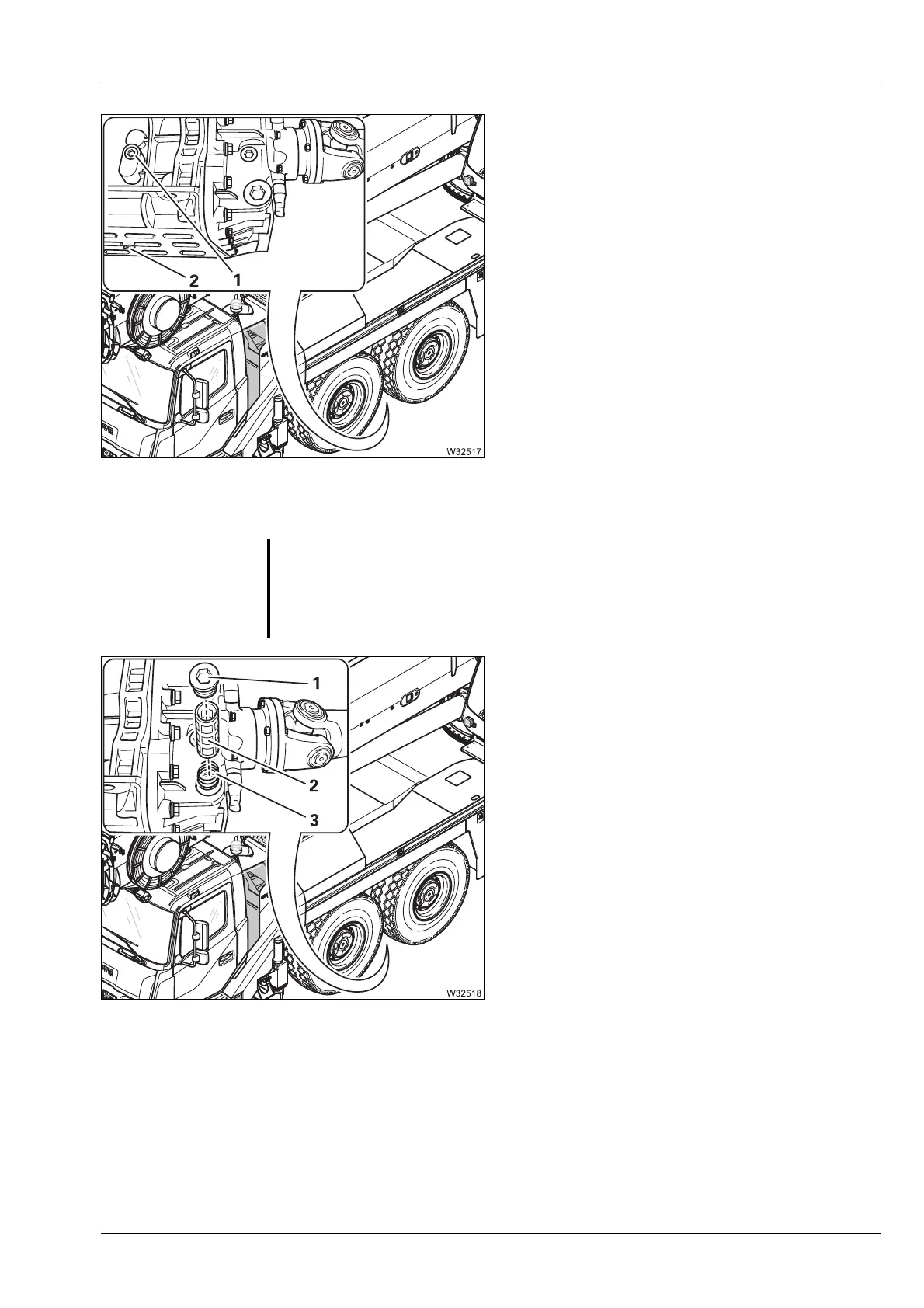

• Place a receptacle under the screw (2).
• Unscrew the screws (1) and (2) and allow the
oil to drain off.
• Clean the drain plugs.
• Replace the gasket and tighten the drain
plug (2) – torque 25 Nm (18.4 lbf ft).
Cleaning the filter
• Remove the drain plug (1).
• Take the filter (2) and the spring (3) out and
clean them.
Replace any damaged parts.
• Insert the spring and filter into the opening.
• Replace the gasket and tighten the drain
plug – torque 60 Nm (44.25 lbf ft).
s
G
Risk of injury due to spring tension
The oil filter bolt is spring-loaded. Release it carefully and be careful of the
spring tension.
