Manitowoc Grove GMK 4100L-1 User Manual

Maintenance work on the carrier
7.6 Transmission
7 - 44 3 302 364 en Maintenance manual
GMK 4100L-1
25.11.2016
Topping up the oil
• Fill the oil up to the lower edge of the
opening.
• Replace the gasket and tighten the drain
plug (1) – torque 25 Nm (18.4 lbf ft).
Checks after the
oil change
After changing oil, check for leakage:
• Start the engine and let it idle in neutral N

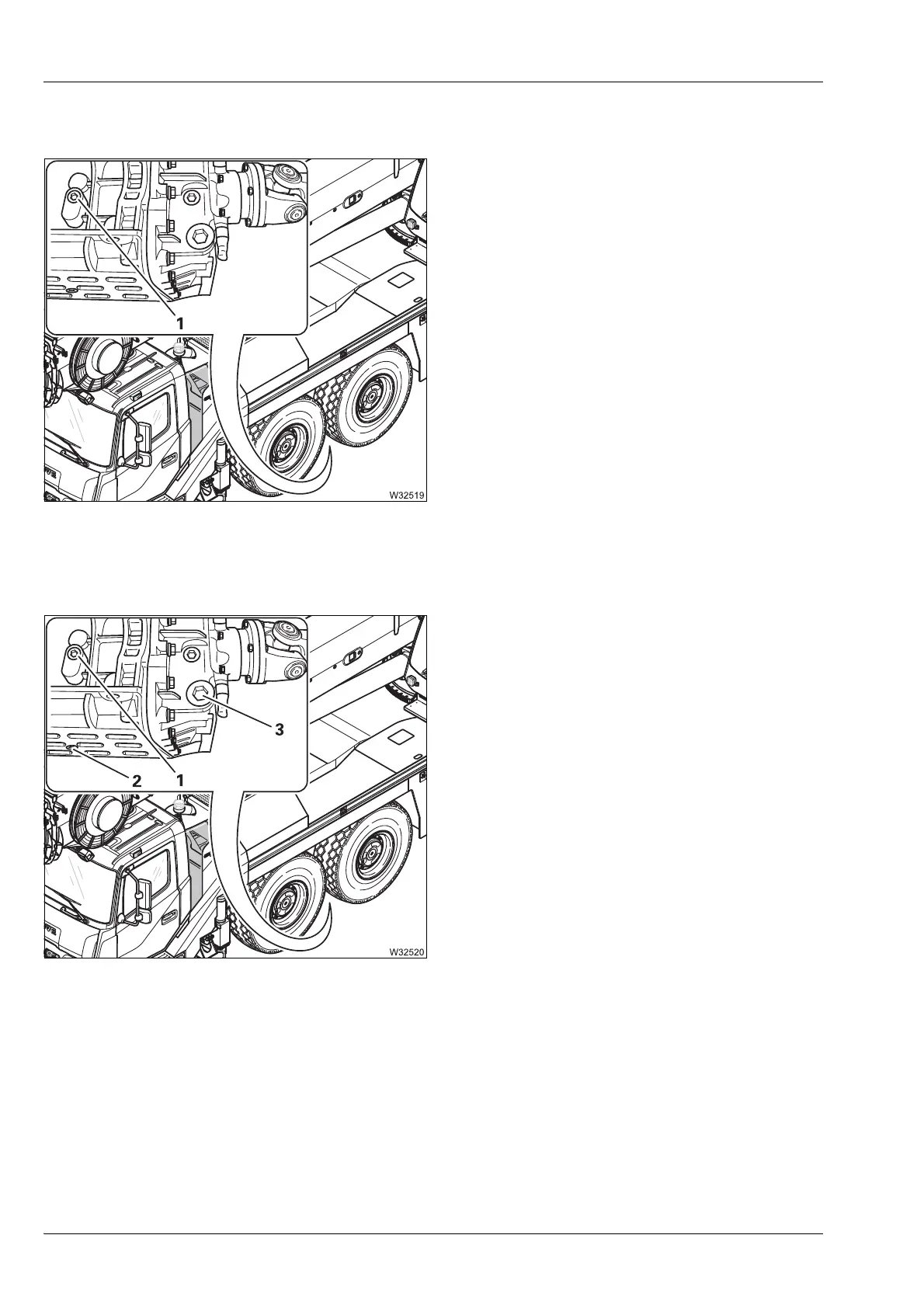

• Check the screw plugs (1) to (3) for leakage
• Check the hoses and connections on the oil
cooler.
