Manitowoc Grove GMK 4100L-1 User Manual

Maintenance work on the carrier
7.9 Axle lines
7 - 58 3 302 364 en Maintenance manual
GMK 4100L-1
25.11.2016
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection pit.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.

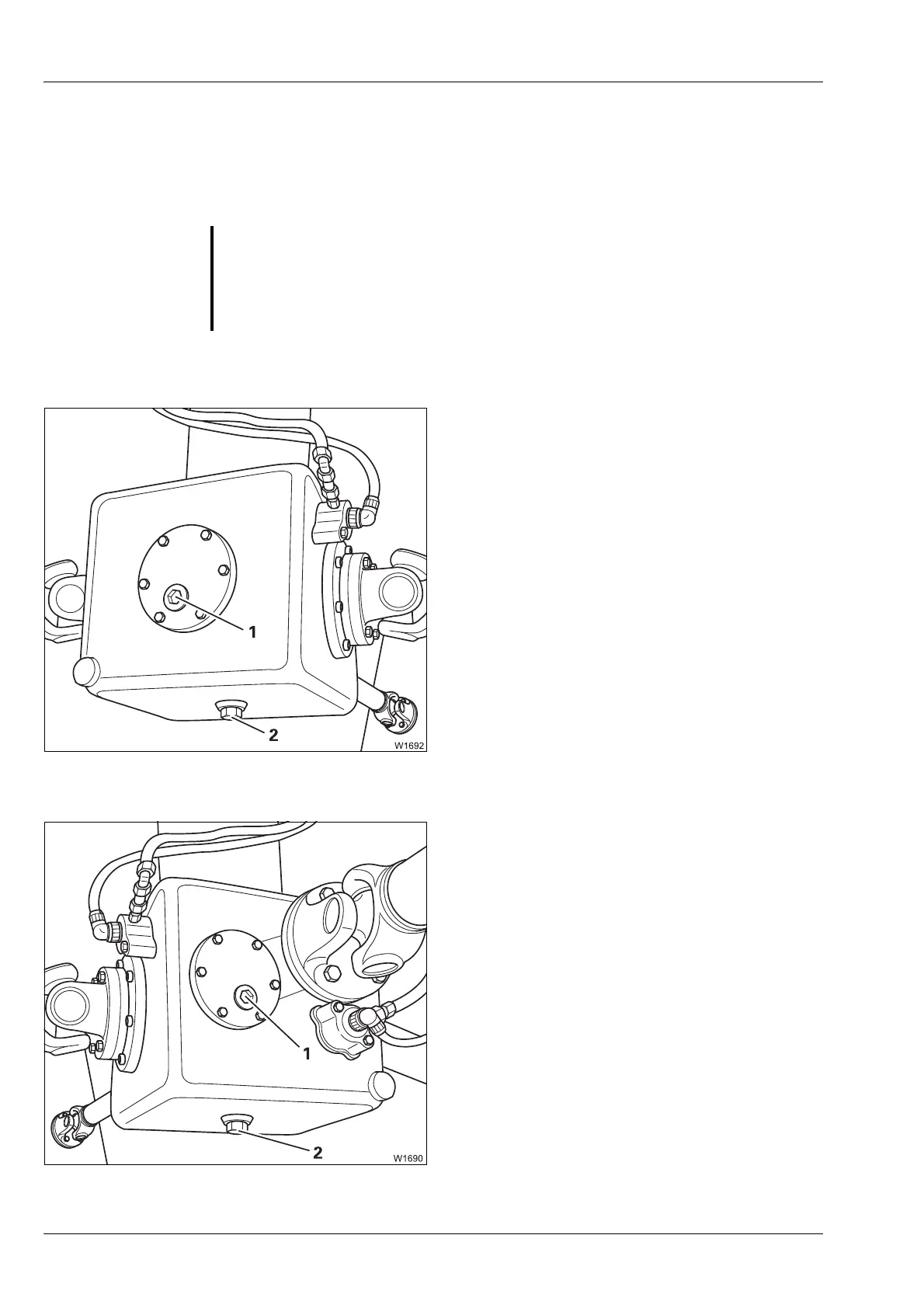

1st and 4th
axle lines
• Place a receptacle under the screw (2).
• Unscrew the screws (1) and (2) and allow
the oil to drain off.
• Fit a new gasket and tighten the drain
plug (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the drain plug (1).
2nd axle line This axle centre drive is present only with the 8 x 8 x 8 drive.
• Place a receptacle under the screw (2).
• Unscrew the screws (1) and (2) and allow
the oil to drain off.
• Fit a new gasket and tighten the drain
plug (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the drain
plug (1).
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any
consumables tha
t escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
