Maintenance work on the carrier
7.9 Axle lines
25.11.2016
Maintenance manual 3 302 364 en 7 - 59
GMK 4100L-1

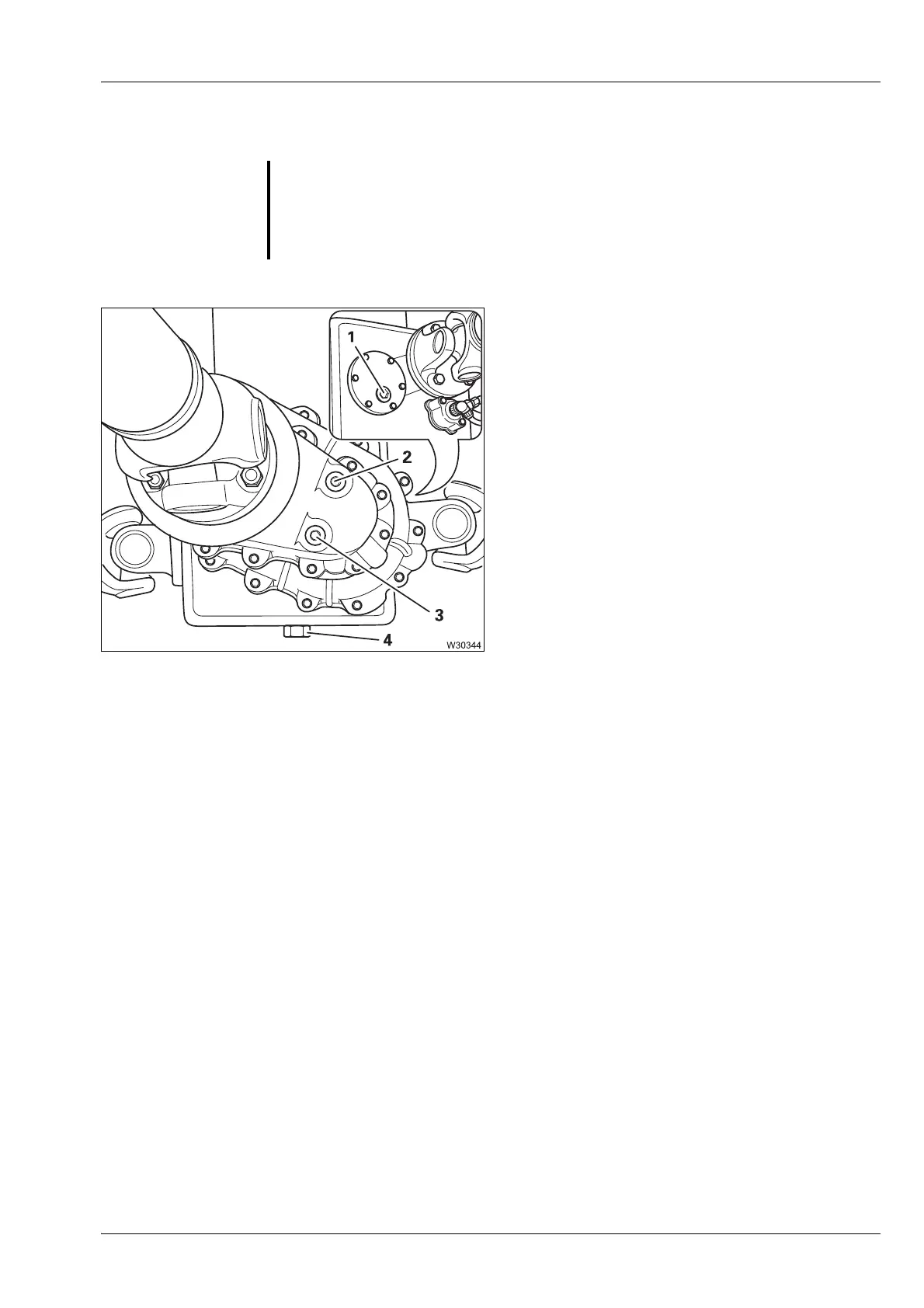

3rd axle line The drive has two oil chambers.
• Place a receptacle under screws (3) and (4).
• Remove the screws (1), (2), (3) and (4) and
let the oil drain off.
• Fit new gaskets and tighten the screws (3)
and (4).
• First add 1.5 ltr (0.4 gal) oil through the
hole (2).
• Add more oil through the hole (1), up to the
lower edge of the hole (1).
• Fit new gaskets and tighten the screws (1)
and (2).
S
Risk of oil overheating.
When topping up the oil, both openings must be opened so that both oil
tanks are filled equally. This prevents the oil tanks from being overfilled and
thus the oil from overheating.
