HYDRAULIC SYSTEM TMS800E SERVICE MANUAL
2-76
Published 01-29-2014, Control # 496-00
5. Inspect the barrel carefully for scoring. If barrel is
scored, it must be repaired or replaced.
6. Thoroughly rinse parts, allow to drain, and wipe with a
lint-free rag. Inspect all parts for serviceability.
7. Stone out minor blemishes and polish with a fine crocus
cloth.
8. Clean with solvent and dry with compressed air any
parts that have been stoned and polished.
Assembly
NOTE: Lubricate seals and rings with clean hydraulic oil.

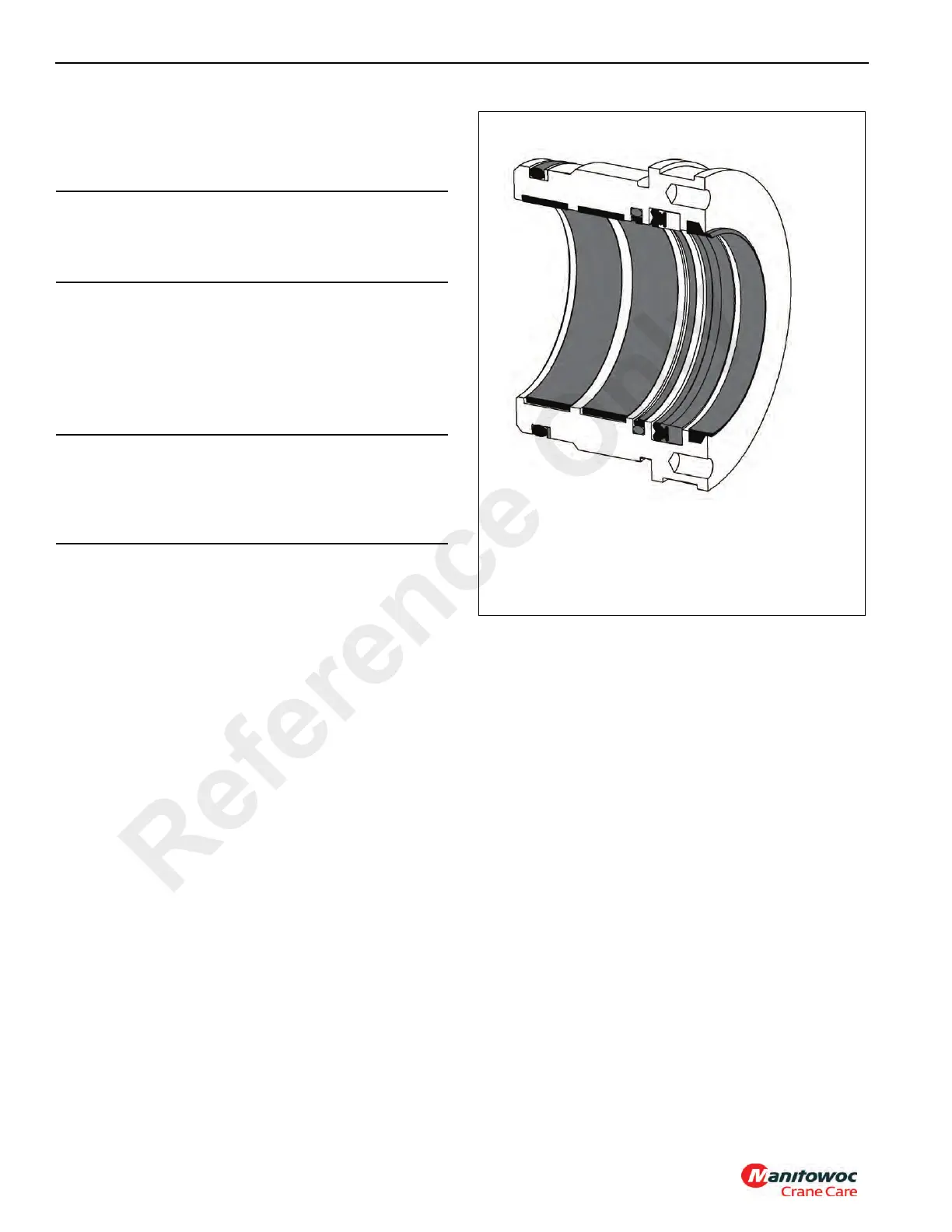

NOTE: For head and piston seal installation, see
Figure 2-52 and Figure 2-53.
1. Install the replacement wiper ring, rod seal, buffer seal
and wear rings in the inside of the head.
2. Install the replacement O-ring and backup ring on the
outside of the head.
CAUTION
Before installing new seals and rings, clean all surfaces
and carefully remove burrs and nicks. Parts displaying
excessive wear or damage should be replaced.
CAUTION
When installing new seals and rings, avoid stretching
seals or scratching the grooved or gland surfaces. Make
sure parts are clean before and during assembly. Make
sure seals and rings are installed in the proper order.
Reference Only
