HYDRAULIC SYSTEM TMS800E SERVICE MANUAL
2-84
Published 01-29-2014, Control # 496-00
1. Install the replacement wear rings, seal, and wiper ring
in the inside of the head (see Figure 2-58).
2. Install the replacement O-rings and the backup ring on
the outside of the head.
3. Lubricate the rod with clean hydraulic oil.
4. Install the cylinder head on the rod.
5. Install the seal and wear ring on the outside of the piston,
and the O-ring on the inside of the piston.
6. Lubricate all parts freely with clean hydraulic oil.
7. Remove the cover from the barrel. Insert the rod and
attached parts into the barrel with a slight twisting
motion.
8. Clean all oil from the threads of the head. Coat the
threads with Loctite 271. Using a spanner wrench, screw
the head into place in the barrel.
9. Check the inside of the port block for any sharp edges or
burrs and remove as necessary with emery cloth.
10. Install new O-rings onto the holding valve.
11. Lubricate the holding valve and O-rings with clean
hydraulic oil.
NOTE: The holding valve should turn by hand until
compression of the O-rings begins.
12. Carefully install the holding valve into the port block until
fully seated.
13. Install the rod end lug on the cylinder rod and secure
with the bolts, washers, and nuts.
14. Pressurize and cycle the cylinder with hydraulic oil
pressure. Test the cylinder at 207 bar (3000 psi). Check
for proper operation and any leakage. Make repairs as
needed.
CAUTION
Exercise extreme care when handling or setting down the
rod. Damage to the rod surface may cause unnecessary
maintenance and expense. Also, take care to avoid
damaging grooved or gland surfaces or rings or seals
during rod insertion.

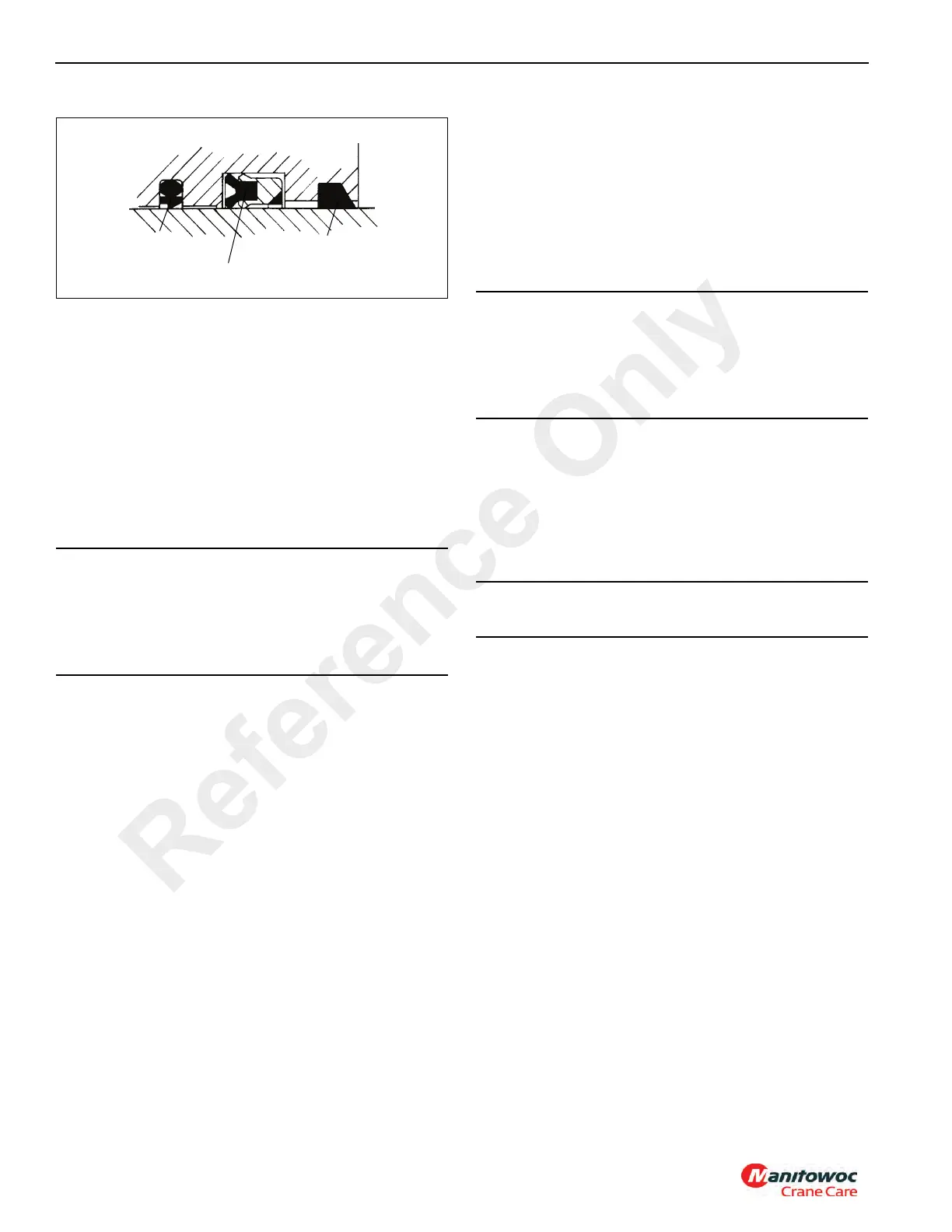

Wiper Ring
Deep Z Rod Seal
Buffer Seal
FIGURE 2-58
CAUTION
Do not damage the O-rings during installation of the
holding valve. If the holding valve turns freely then gets
hard to turn, then easy to turn, remove the holding valve
and check the O-rings. They have probably been
damaged by a sharp edge of a port.
CAUTION
Do not use air pressure to cycle or pressurize the cylinder.
