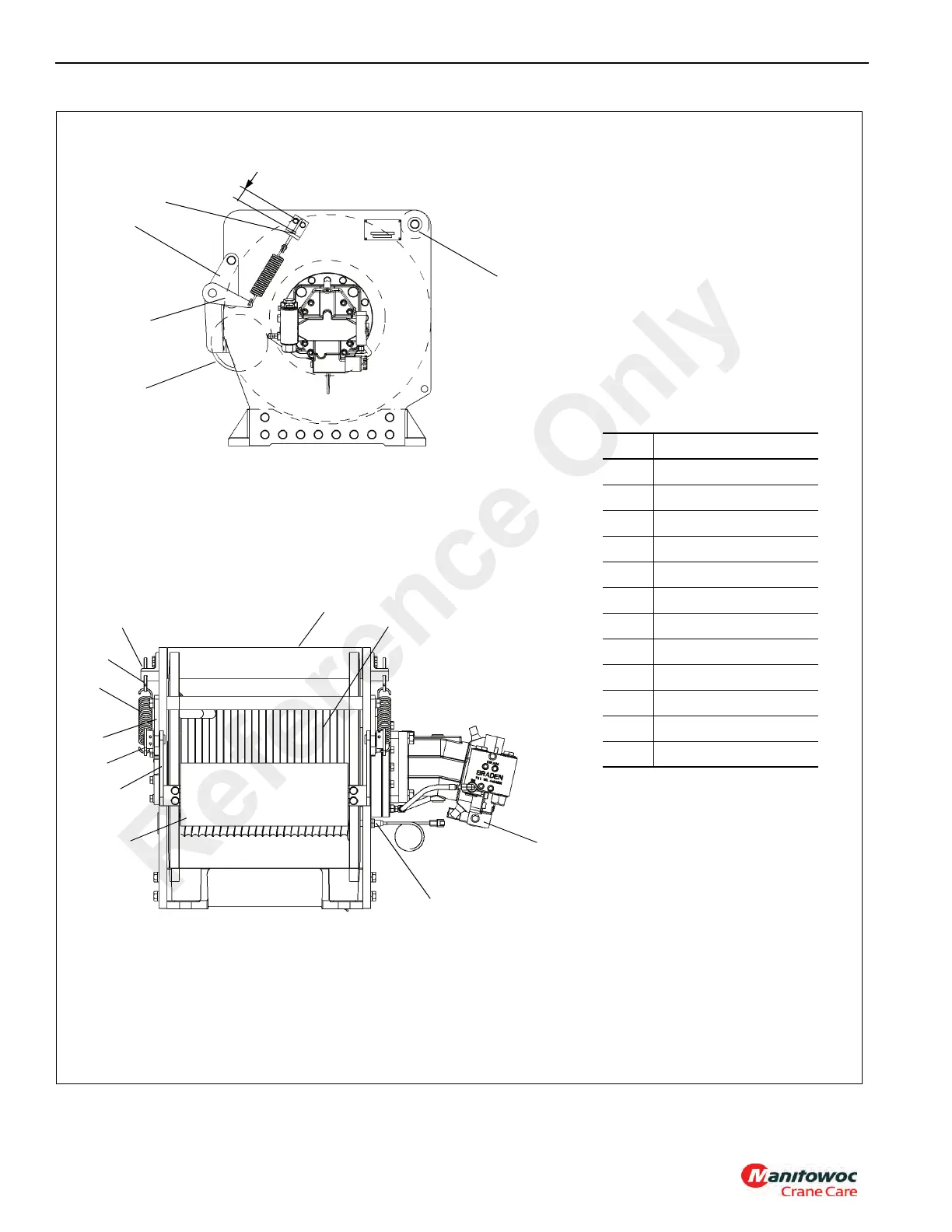

HOIST AND COUNTERWEIGHT TMS800E SERVICE MANUAL

6395-1

Item Description

1 Pivot Bracket

2Drum

3 Follower Roller

4Arm

5Spring

6 Spring Adjusting Rod

7 Lever

8 Idler Roller

9Nut

10 Bracket

11 Rotation Sensor

12 Hydraulic Motor

FIGURE 5-3

6395-2

3.0 cm (1.21 inch)

Reference Only
