TMS800E SERVICE MANUAL LUBRICATION
9
Published 01-29-2014, Control # 496-00
GROVE
15. Rear Aluminum Wheel Pilots
Lube Type - ASC
Lube Interval - When wheels are removed for service.
Lube Amount - Generously coat the wheel pilot or hub
pads with anti-seize (ASC) compound. Do not apply
anti-seize compound to the face of the wheel of the hub.
Application - Brush on; 8 places
16. Front Rear Axle Differential
Lube Type - SSGL-5
Lube Interval - Check lubricant level every 250 hours
and refill as necessary. Drain, fill, change filter, and
clean magnetic drain plug every 80,000 km (50,000 mi)
or 2 years, whichever interval occurs first.
Lube Amount - Capacity - 27 l (57 pt) Normal makeup -
less than 0.23 l (0.5 pt)
Application - Fill to bottom of fill plug threads.
NOTE: Lube level (Figure 9-1) close enough to the hole to
be seen or touched is not sufficient. It must be level
with the hole.
When checking lube level, also check and clean
housing breathers.
17. Rear Rear Axle Differential
Lube Type - SSGL-5
Lube Interval - Check lubricant level every 250 hours
and refill as necessary. Drain, refill, and clean magnetic
drain plug every 80,000 km (50,000 mi) or 2 years,
whichever interval occurs first
.
Lube Amount - Capacity - 17.5 l (37 pt) Normal makeup -
less than 0.23 l (0.5 pt).
Application - Fill to bottom of fill plug threads.
18. Rear Axle Brake Slack Adjusters
Lube Type - EP-MPG
Lube Interval - 1000 hours
Lube Amount - Until grease extrudes
Application - 4 grease fittings
19. Rear Axle Brake Camshafts
Lube Type - EP-MPG
Lube Interval - 1000 hours
Lube Amount - Until grease extrudes
Application - 4 grease fittings
CAUTION
Axle fluid levels shall be adjusted to bottom of fill plug
threads. Check with crane on level ground, at its normal
ride height, cold or room temperature oil only. A 30 minute
drain down time is required before checking unit if the unit
has been recently moved.
CAUTION
If the makeup amount is substantially more than 0.23 l
(0.5 pt) check for leaks.
CAUTION
Axle fluid levels shall be adjusted to bottom of fill plug
threads. Check with crane on level ground, at its normal
ride height, cold or room temperature oil only. A 30 minute
drain down time is required before checking unit if the unit
has been recently moved.
CAUTION
If the makeup amount is substantially more than 0.23 l
(0.5 pt) check for leaks.

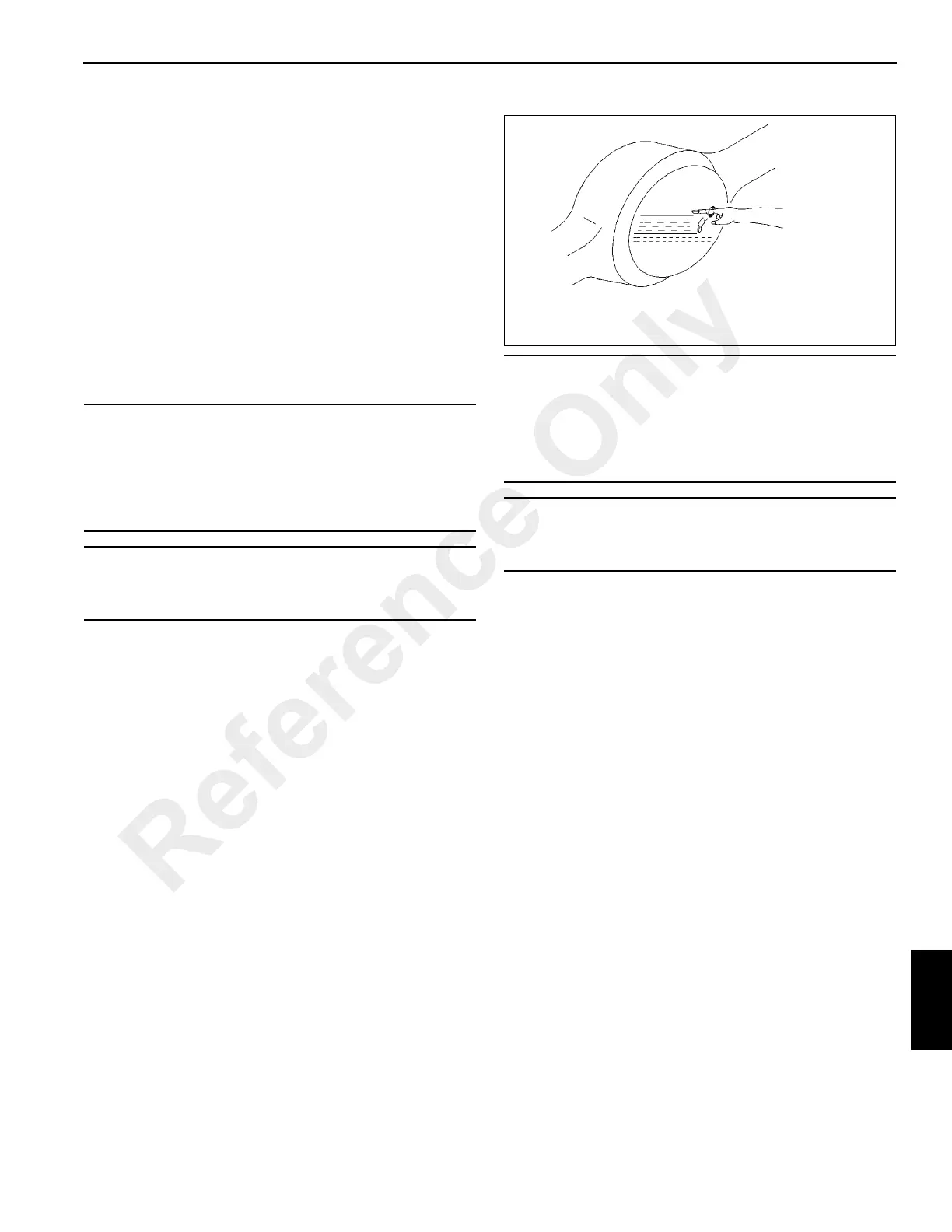

___ Correct: Lube level at
bottom of filler hole.
- - - Incorrect: Lube level
below filler hole.
FIGURE 9-1
6626
Reference Only
