There are two tabs available for this device, the second depends on the type of
encoder selected in the I
NTERFACE TYPE field.
2.4.1 Parameters for Easy Box U4E
• SIGN INVERSION: transducer signal sign inversion option and behaviour.
TRANSDUCER TYPE
MEASUREMENT VALUE
WHEN SENSOR IS PUSHED
SIGN
INVERSION
PENCIL PROBE LVDT-HBT DECREASING YES
WIRELESS BORE GAUGE M1WAVE-MINIWAVE (LVDT)
D
ECREASING NO
WIRELESS BORE GAUGE M1WAVE-MINIWAVE (HBT) INCREASING NO
PNEUMATIC (USED WITH U1AIR, U3AIR, U4AIR DECREASING YES
• RANGE: transducer measurement field (expressed in μm)
• A
RM RATIO: to set the arm ratio
• R
ESOLUTION: real measurement accuracy
• O
FFSET: additional constant applied to the value measured by the transducer

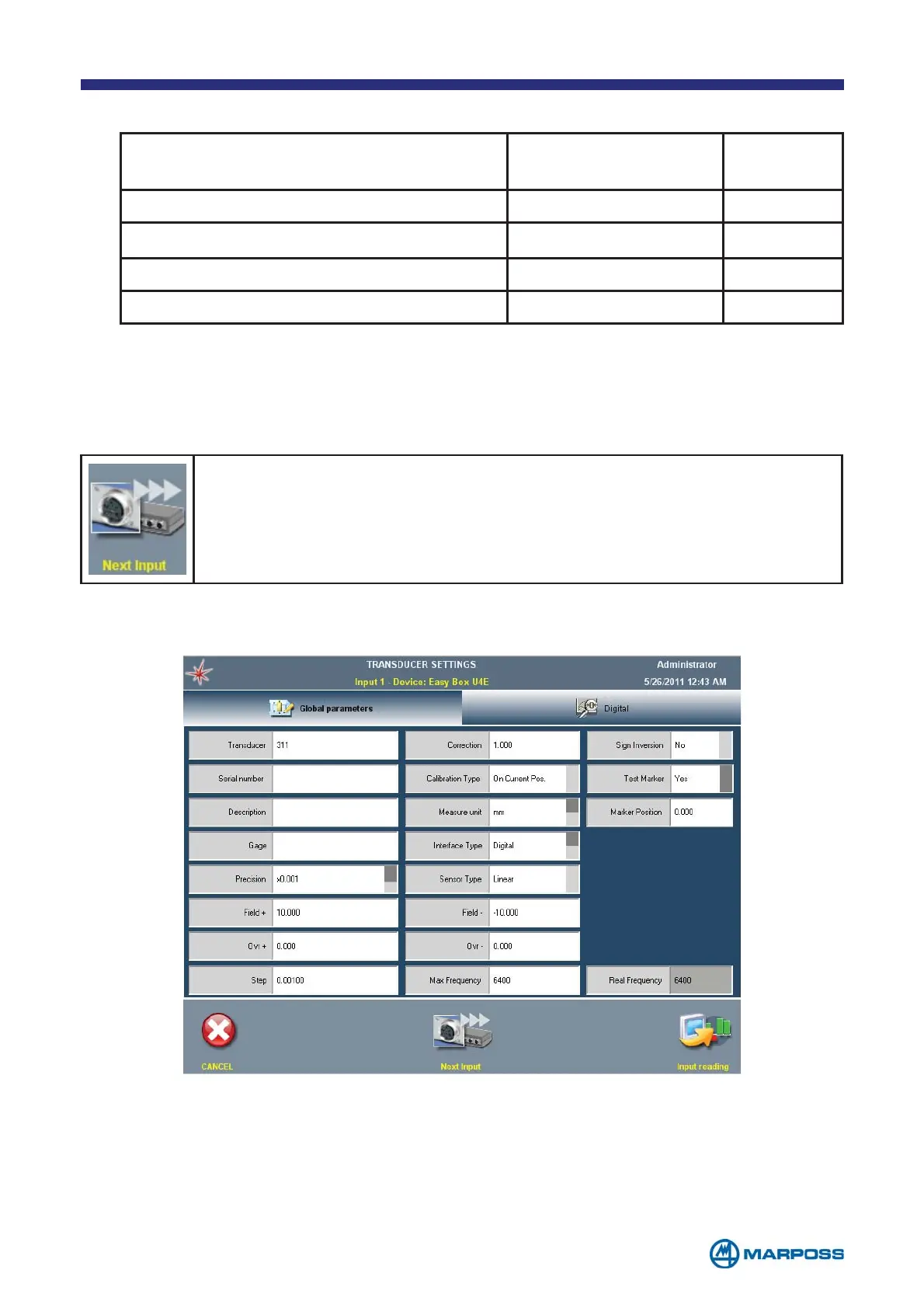

Tap on NEXT INPUT to setup the transducer related to the next input.
