- 53 -

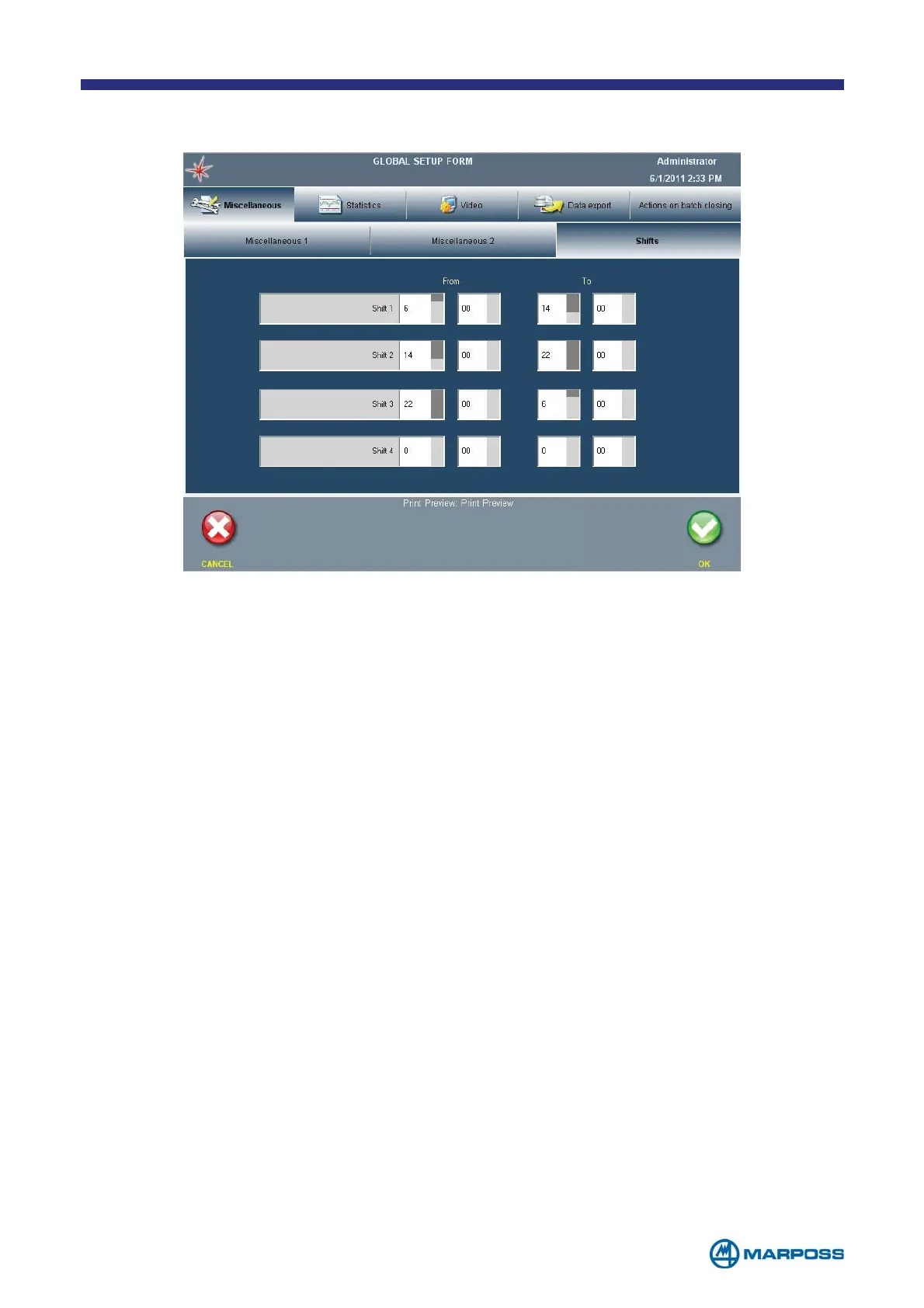

This page can be used to setup a maximum of four working shifts so the system can

perform the following functions when they expire:

• automatic batch closing (see chapter 4.2)

6.3 Shifts TAB
