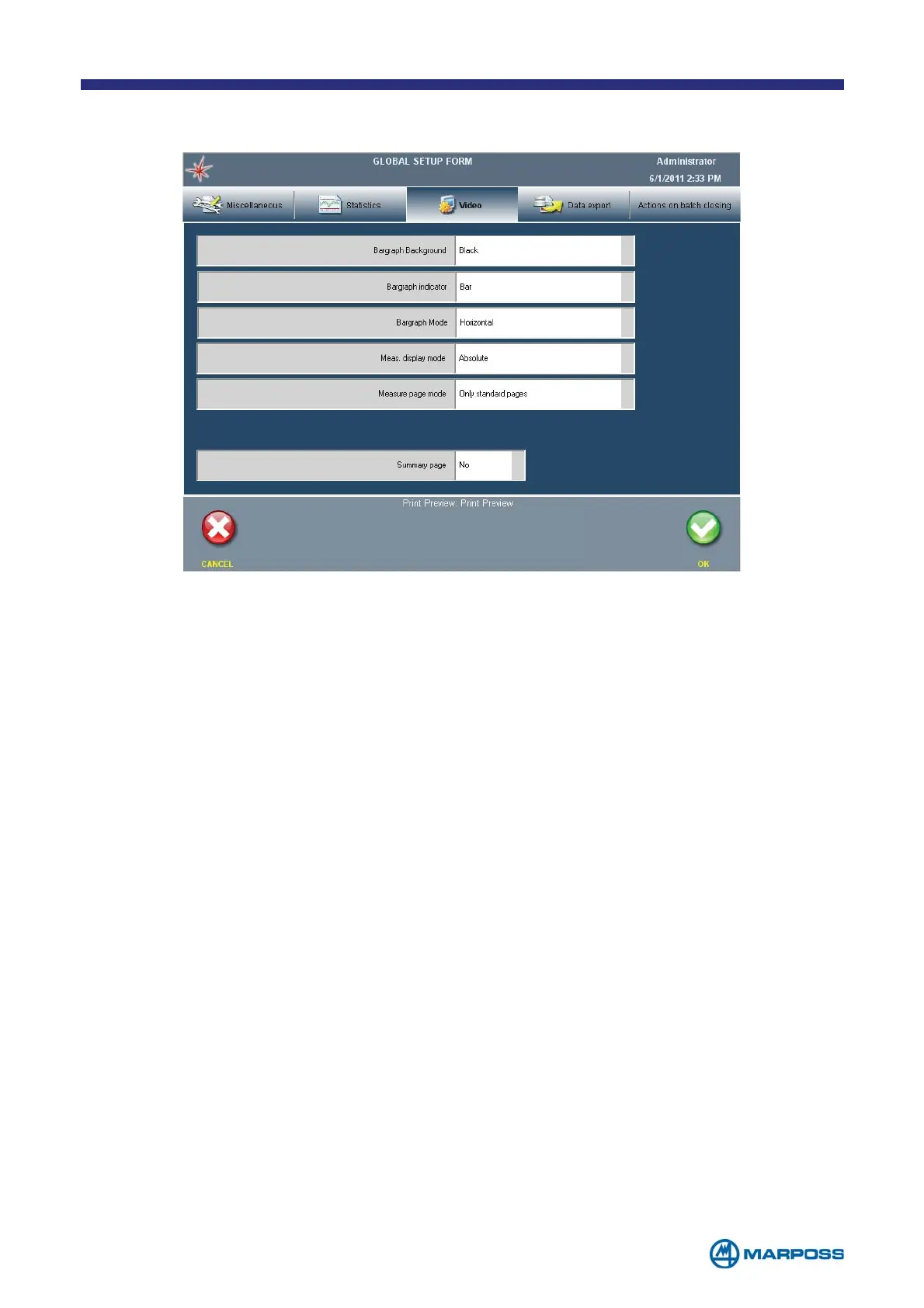

6.5 Video TAB
• BARGRAPH BACKGROUND: BLACK, COLOURED.
• B
ARGRAPH INDICATOR: BAR, CURSOR.
• ABSOLUTE/DISPLACEMENT MEASUREMENT DISPLAY MODE: The measurement is
displayed as an A
BSOLUTE value or DISPLACEMENT with respect to the centre of the
tolerance range.
• M
EASUREMENT PAGE TYPE (ONLY STANDARD PAGES/ALL PAGES): if the ALL PAGES option
is selected the system also displays the “led bars” page in vertical bars format.
• SUMMARY PAGE: YES, NO
