- 67 -
7.5 Protocol implementation method
The standard protocols, denominated DOP_STDxx, where xx is the id assigned to
the protocol, are distributed with the Merlin software installation packages. The type
of protocol to be used is selected in the M
ISCELLANEOUS 2 TAB on the GENERAL SETUP
page, using the following fields:
• O
UTPUT PROTOCOL: where it is possible to activate the data output protocol
• P
ROTOCOL NAME: protocol name

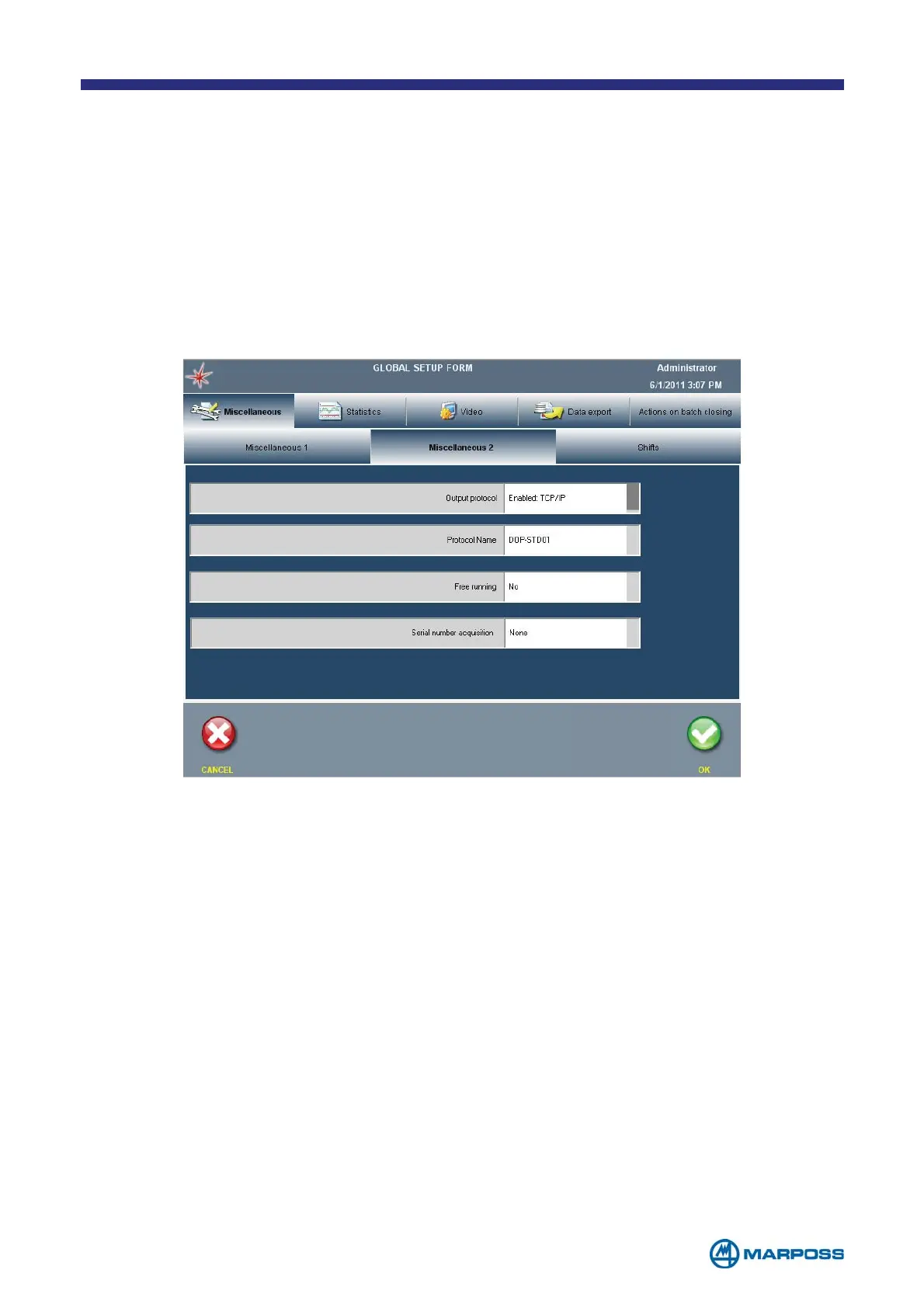

For example, to activate protocol N.3 on TCP/IP:
