- 36 -

Here is the list of parameters to program :

• C

LASS DEFINITION:

• D

ISABLED: (Default)

• U

NIFORM & FIXED: the system sets the classes programmed; only the class

name is left editable. All C

LASSES are created with the same size.

• F

REELY EDITABLE: name and value are freely editable. The CLASSES can have

different sizes.

• C

LASSES IN TOLERANCE & OUT OF TOLERANCES: the total amount of classes must

U32, and they can be inside or outside the tolerance limits.

Edit function allows to modify NAME and/or VALUE in the table.

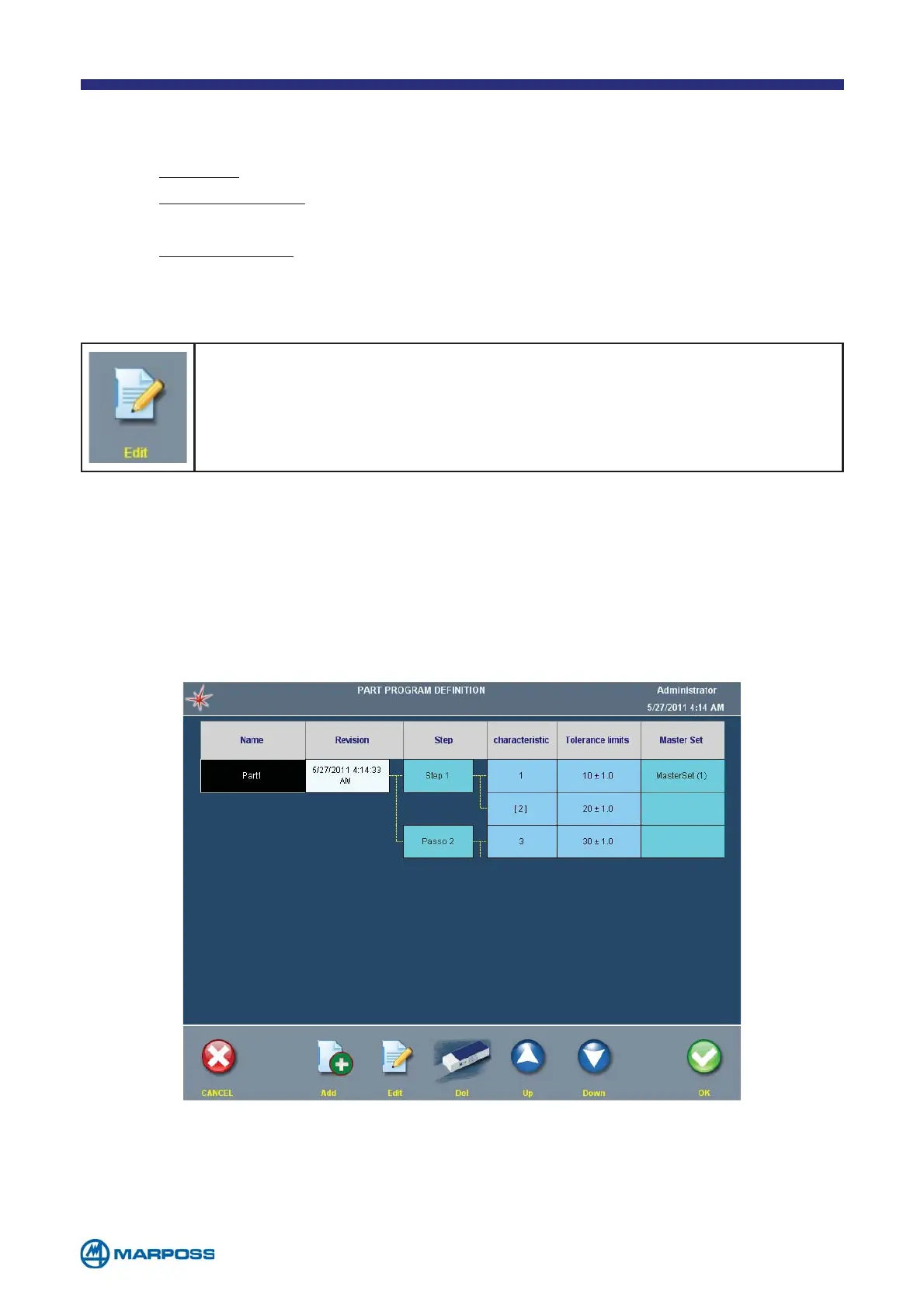

3.2.5 Part program structure

Once the CHARACTERISTIC has been defined it is possible to view the complete struc-

ture of the P

ART PROGRAM that has been created.

The following table includes all the information entered during the programming

phase: the P

ART NAME, the measurement STEP, the CHARACTERISTIC, the TOLLERANCE LIMITS

and the M

ASTER SET. The brackets in the CHARACTERISTIC “2” show that the measure has

been configured as A

UXILIARY.

This page enables the user to carry on adding new steps, new measurements and

new zeroing steps. To add a new element, select the element to be added by hi-

ghlighting it in the display and then tap A

DD.

The U

P and DOWN functions allow the user to move the selected element around the

tree structure.
