3.2.3 Step definition

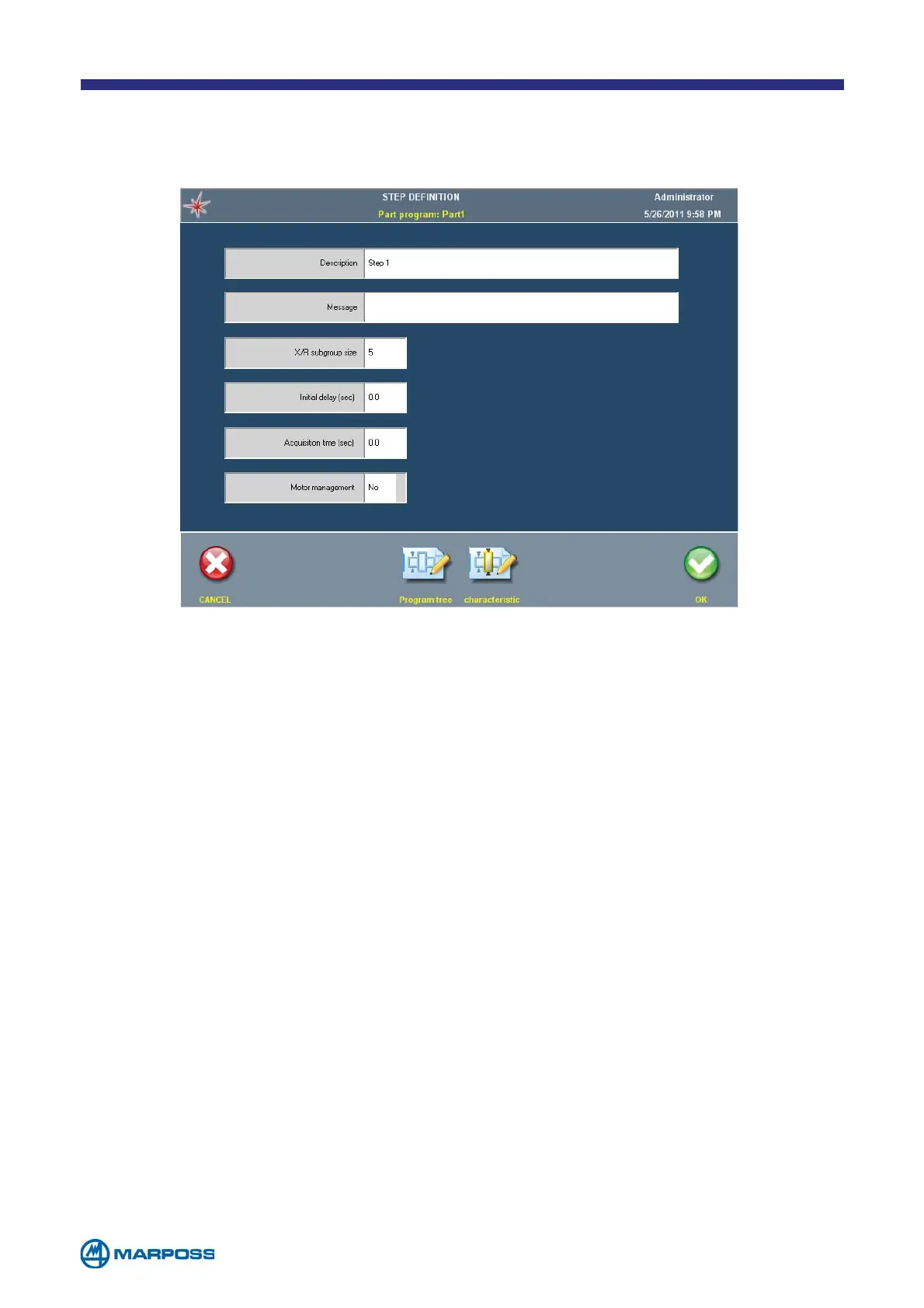

Tap on DESCRIPTION to insert a STEP description.
The configuration parameters are described below.
• D
ESCRIPTION: DESCRIPTION of the measurement STEP.
• M
ESSAGE: measurement STEP MESSAGE; this message appears in the page hea-
der highlighted in yellow, and it can be used to provide assistance to the ope-
rator.
• X/R S
UBGROUP SIZE: this parameter defines the size of the subgroup used in the
control charts (permitted values: 2 to 15).
• I
NITIAL DELAY: initial measurement delay setting (in sec.).
• A
CQUISITION TIME: data acquisition period (in sec.).
• M
OTOR MANAGEMENT: Enables a signal that can be used to control a motor
used to rotate the piece while the measurement is being performed; it can only
be used in I/O layouts (10-13).
