WRS – Installation Manual
4.2.1 Inserting the extension for probes (optional accessory)
The extension is inserted between probe and transmitter to increase the measuring depth of the system.
Proceed as follows to insert the extensions:
Extension for T25 - TT25 - T25P probe
• Remove the probe from the transmitter with the special wrench supplied with the equipment.
• Insert the extension (A1) with the relevant seal rings between probe and transmitter.
• Tighten the unit by means of the wrench supplied.

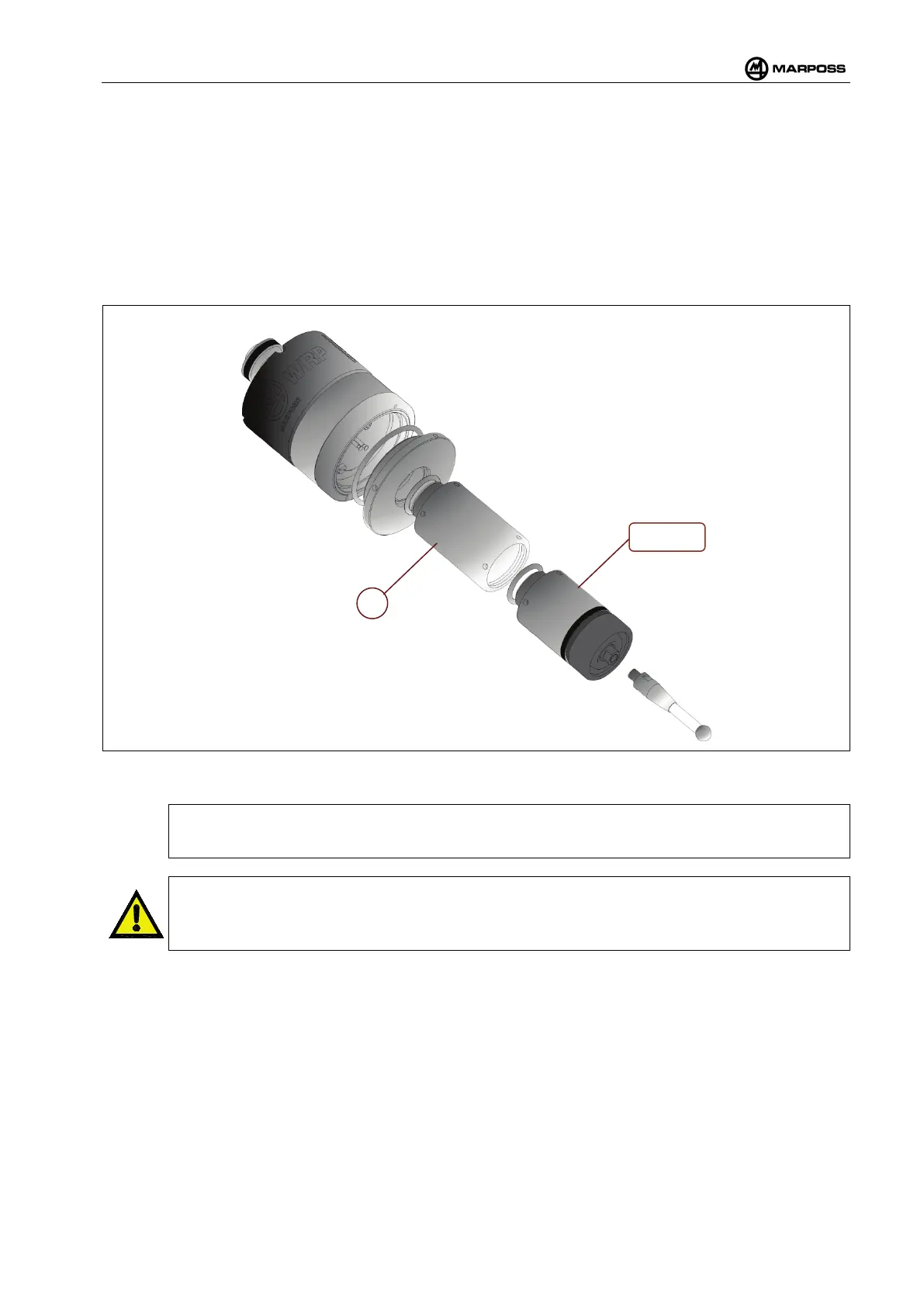

Figure 4-4. Insertion of the extension for T25 - TT25 - T25P probes.
N.B. :
There are no extensions for the TT30 probes.
WARNING
When inserting the extensio
n make sure that the seal rings are in very good conditions and
correctly positioned in their own seat.
After completing the operation, it is necessary to align the system (see section 4.3 on page. 26)
