marposs WRP45 - WRTS Transmitter Alignment - Lateral Washers

WRS – Installation Manual
30
4.7 Aligning and fitting the WRTS transmitter on the fastening flange
Here there is described the procedure for fitting and aligning the transmitter on the fastening flange.
4.7.1 Version with lateral washers

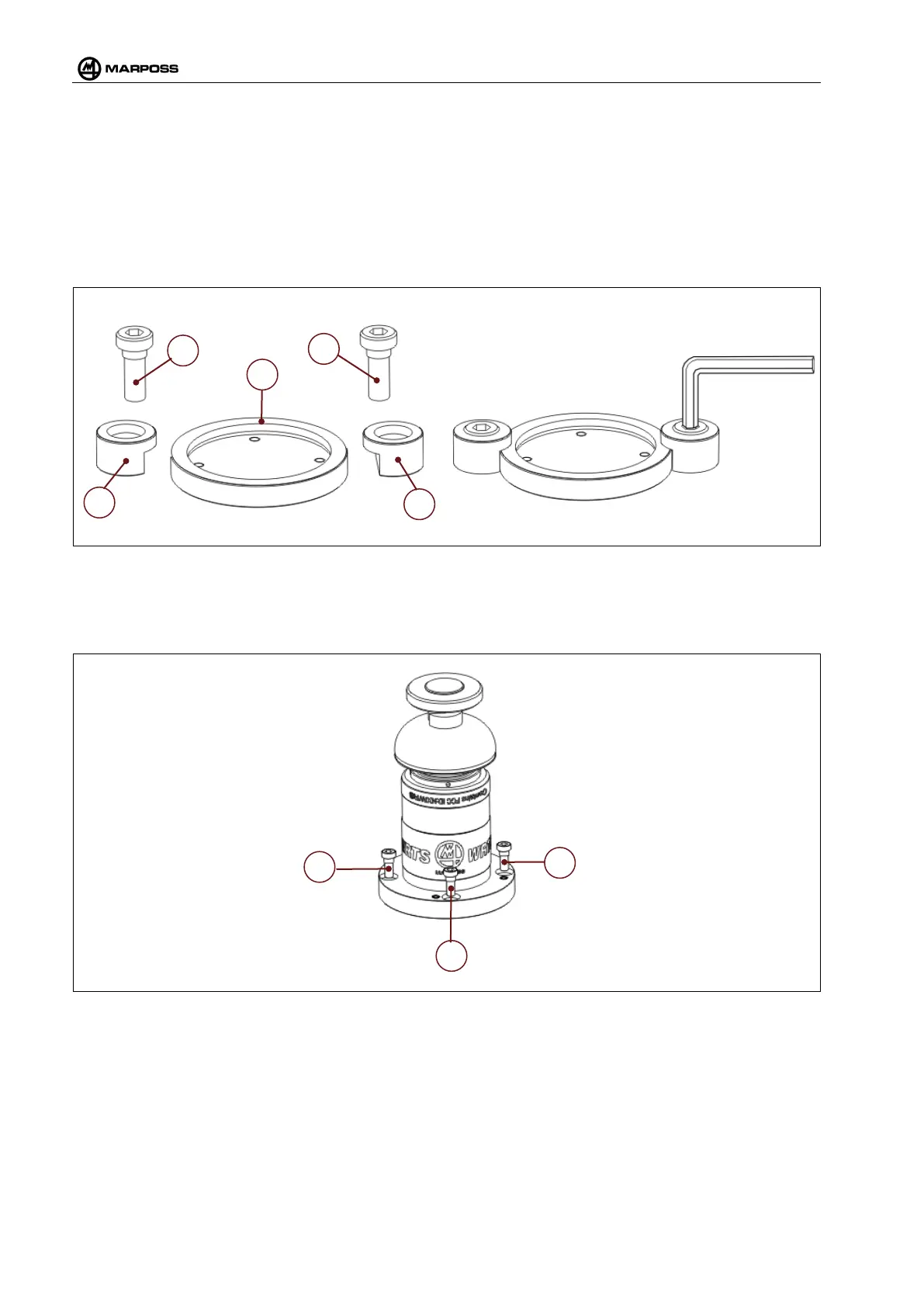

• Using the 2 fastening washers (A) (supplied with the equipment), fasten the fastening flange (C) with
the 2 screw (B) to the machine table (Figure 4-16).
Figure 4-16
• Fasten the WRTS onto the flange with the 4 screws (D) without tightening them (Figure 4-17) During
this operation see that there are no foreign bodies on the pairing surfaces.
Figure 4-17
After completing the operation, it is necessary to align the system (see section 4.7.3 on page 34).
B
B
A
A
C
D
D
D
