WRS – Installation Manual
4.11.2 WRI receiver/Heidenhain TNC 530 wiring diagram
The wiring diagram that appears in Figure 4-40 is based on a system using code number 687K009002 and
a Heidenhain controller.

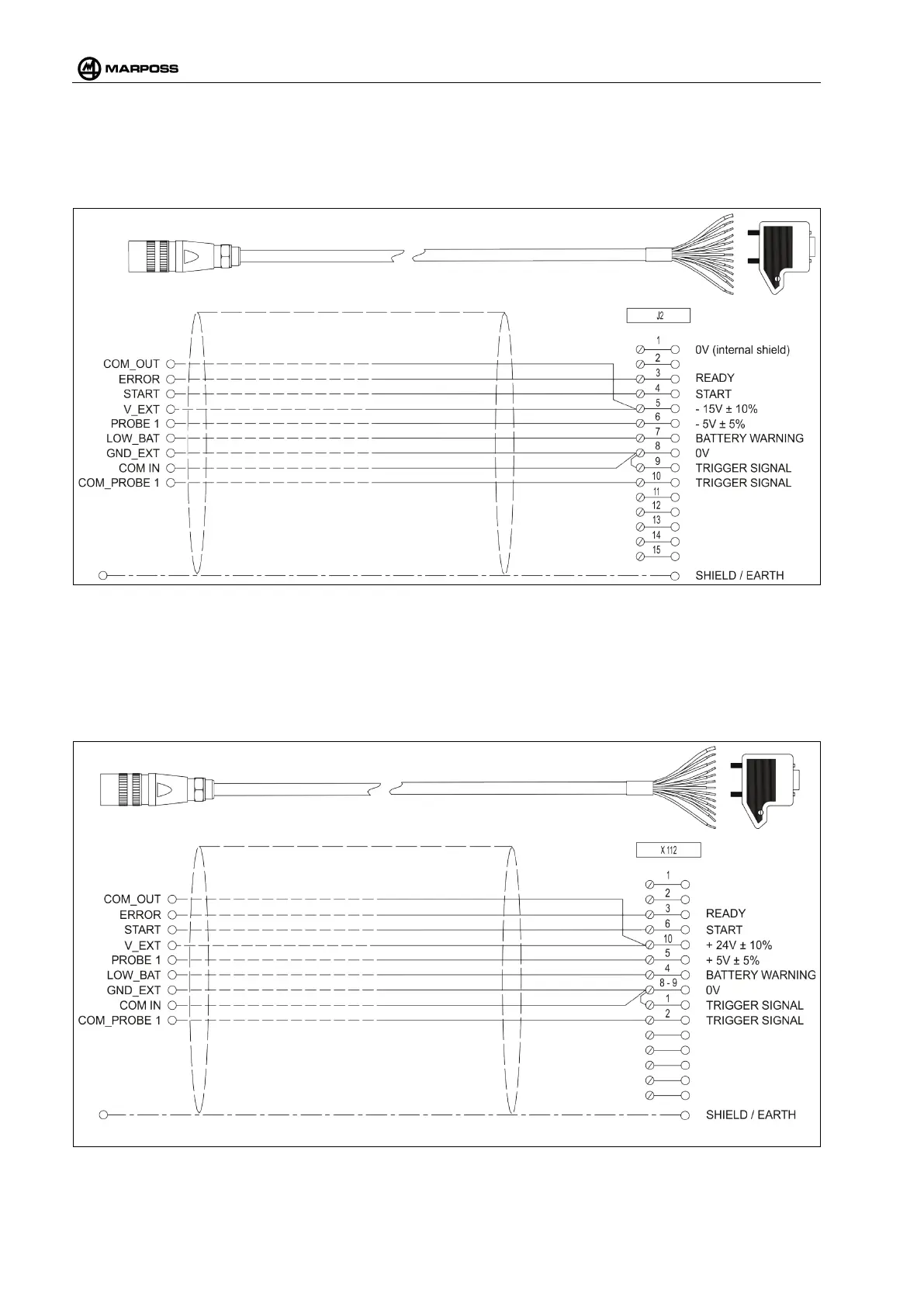

Figure 4-40. WRI receiver - Heidenhain TNC 530 wiring diagram
4.11.3 WRI receiver/Heidenhain TNC 530 HSCI - 620 - 640 wiring diagram
The wiring diagram that appears in Figure 4-41 is based on a system using code number 687K009002 and
a Heidenhain controller.
Figure 4-41. WRI receiver/Heidenhain TNC 530 HSCI - 620 - 640 wiring diagram
