WRS – Installation Manual
28
4.5 Fitting the adapter flange 2027885080 on a type 4390190xxx cone
When using a cone for type E83/E86 devices, first fit the adapter flange 2027885080 (A), then align and fit
the cone on the WRP60 transmitter (see chap. 4.6):
• Mount the flange (A) (Figure 4-14) on the cone using the 4 screws supplied with the flange
(suggested tightening torque: 5Nm).

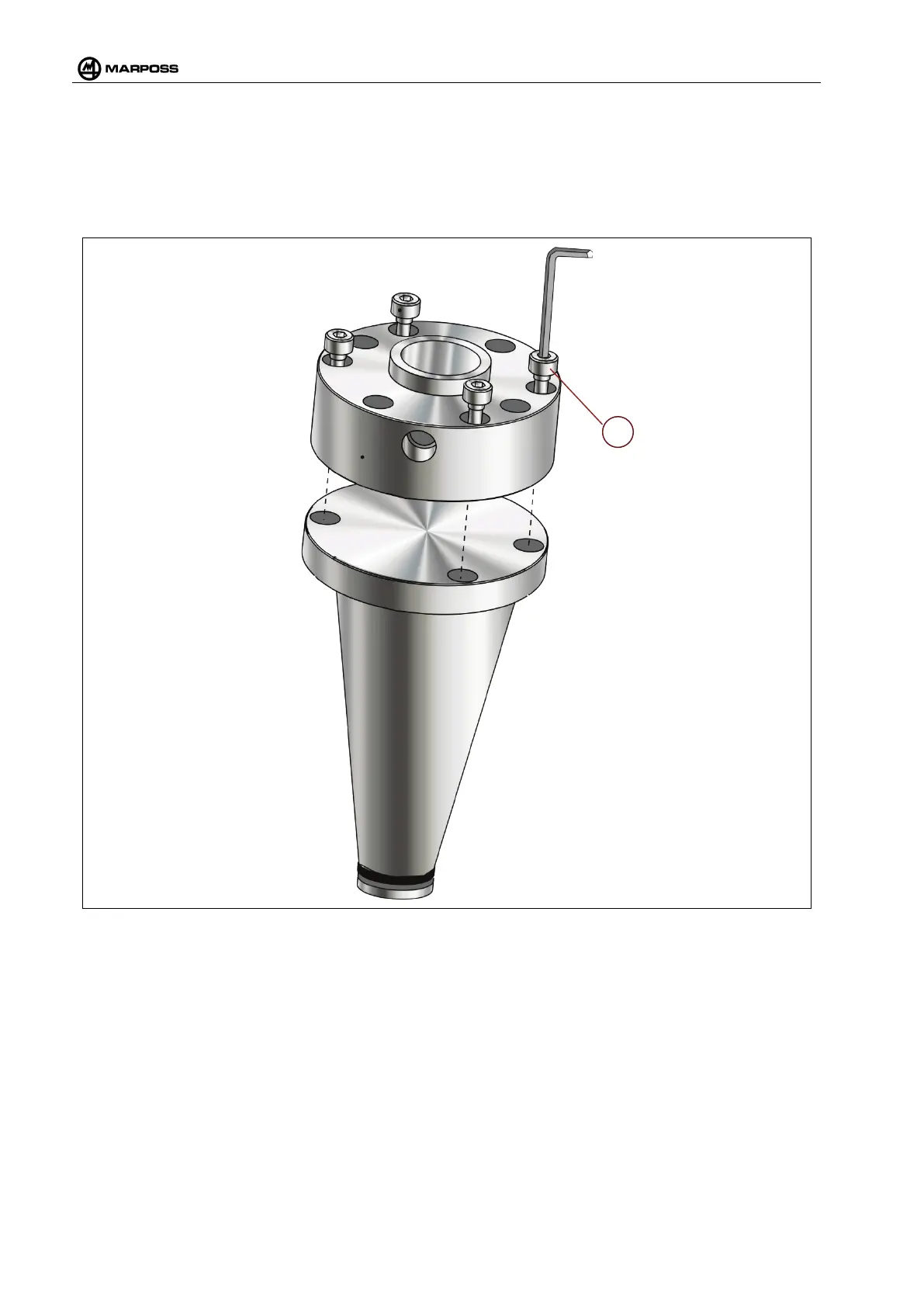

Figure 4-14. Fitting the adapter flange on a cone for E83/E86.
A
