WRS Installation Manual
14
3.2 Dimensions
[
N.B.:
The dimensions are expressed in millimeters

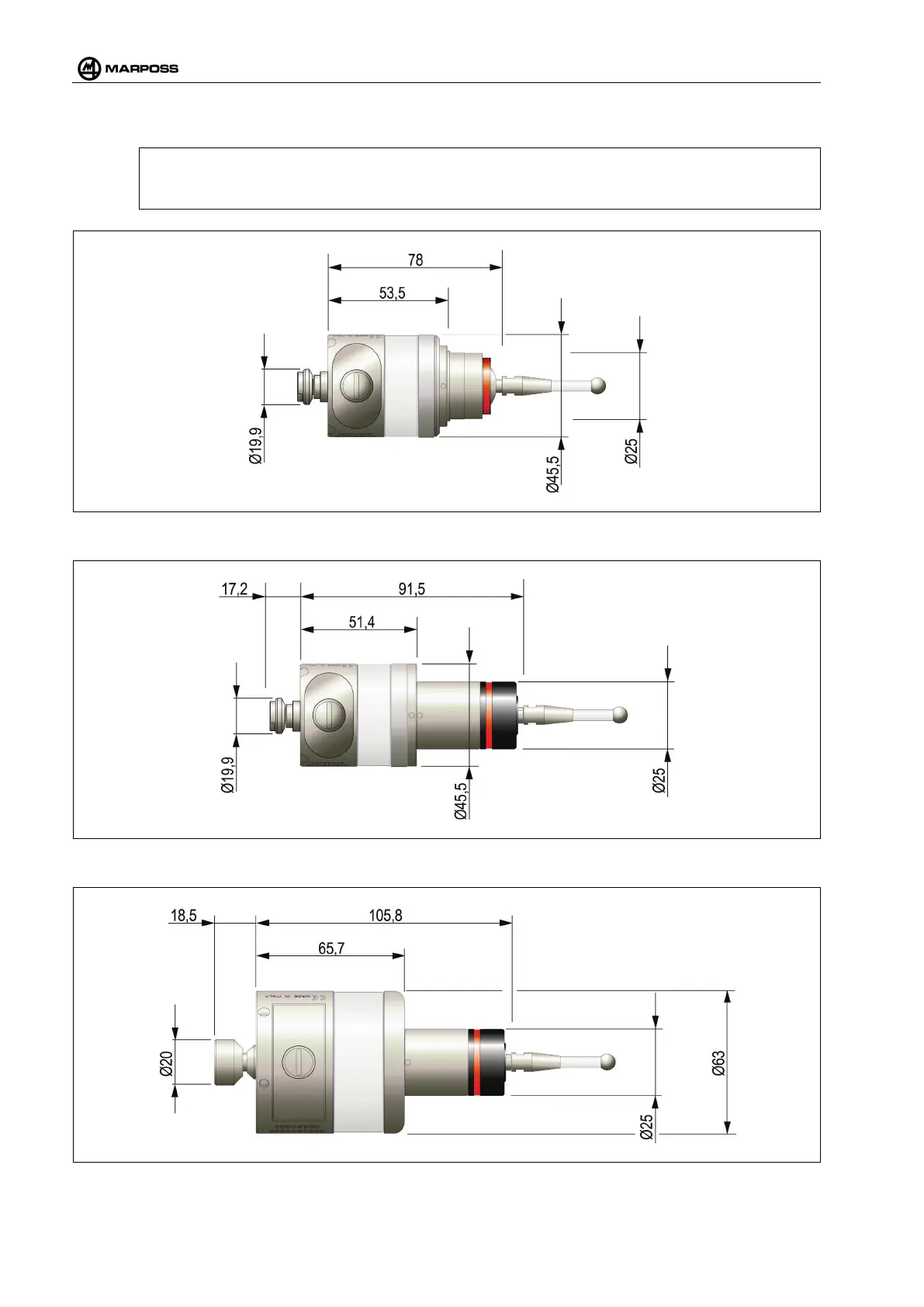

Figure 3-3. WRP45 dimensions with probe TT30.
Figure 3-4. WPR45 dimensions.with probe T25, TT25 e T25P.
Figure 3-5. WPR60 dimensions.with probe TT25, T25 e T25P.
