4.3 Fitting the adapter flange 2027885064 on a type 4390190xxx cone
When using a cone for type E83/E86 devices, first fit the adapter flange 2027885064 (A), then align and fit
the cone on the WRP45 transmitter (see chap. 4.4):
• Mount the flange (A) (Figure 4-12) on the cone using the 4 screws supplied with the flange
(suggested tightening torque: 5Nm).

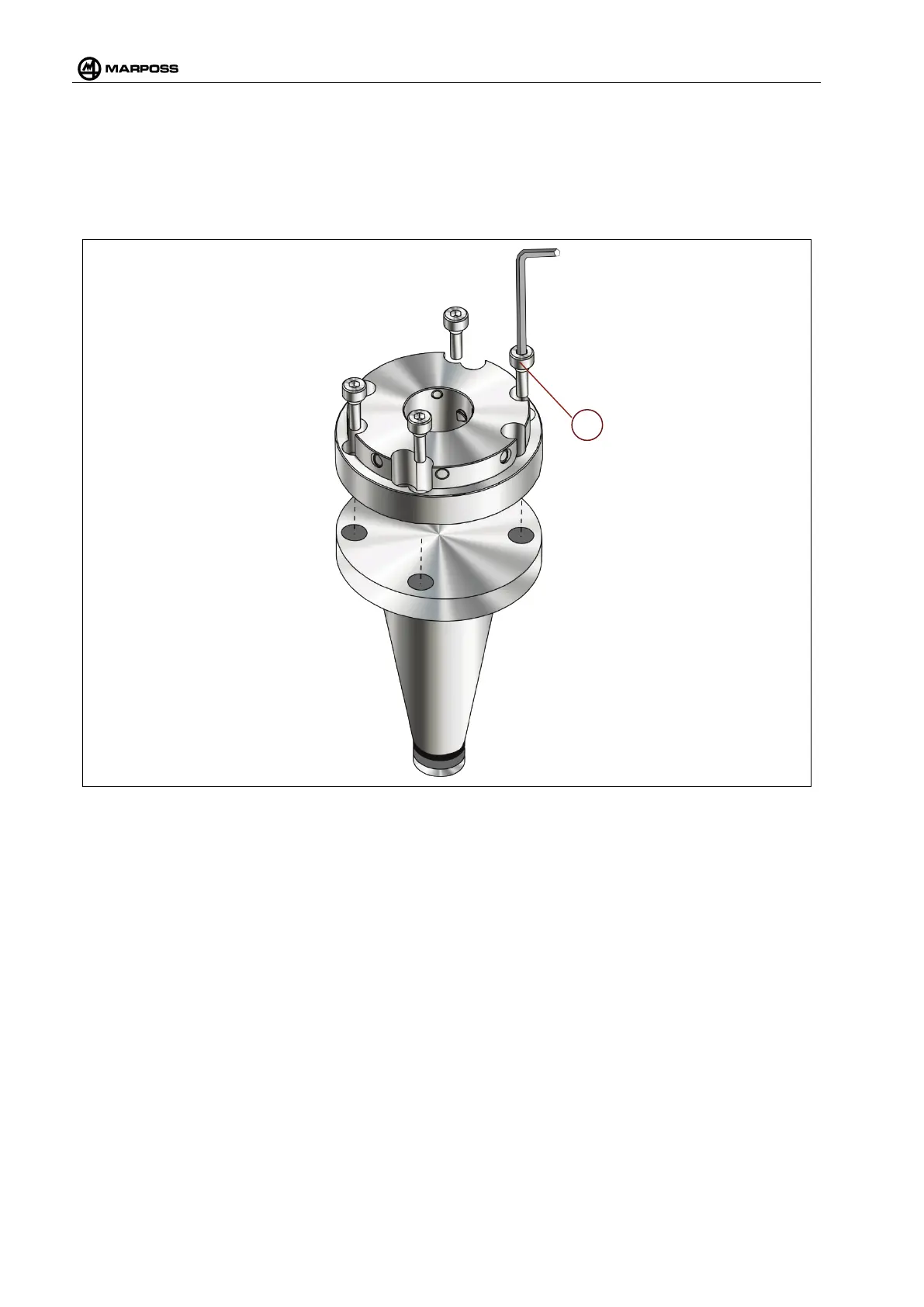

Figure 4-12. Fitting the adapter flange on a cone.
A
