marposs WRP45 - WRTS System Alignment Procedure

WRS – Installation Manual
32
4.7.3 WRTS system alignment procedure
• Act on the dowels (E) aligning the plane (F) of the contact.
• Verify the alignment with a comparator fitted either on the spindle or on the machine table.
• Once obtained an acceptable alignment (25/30 µm), tighten the screws (D).

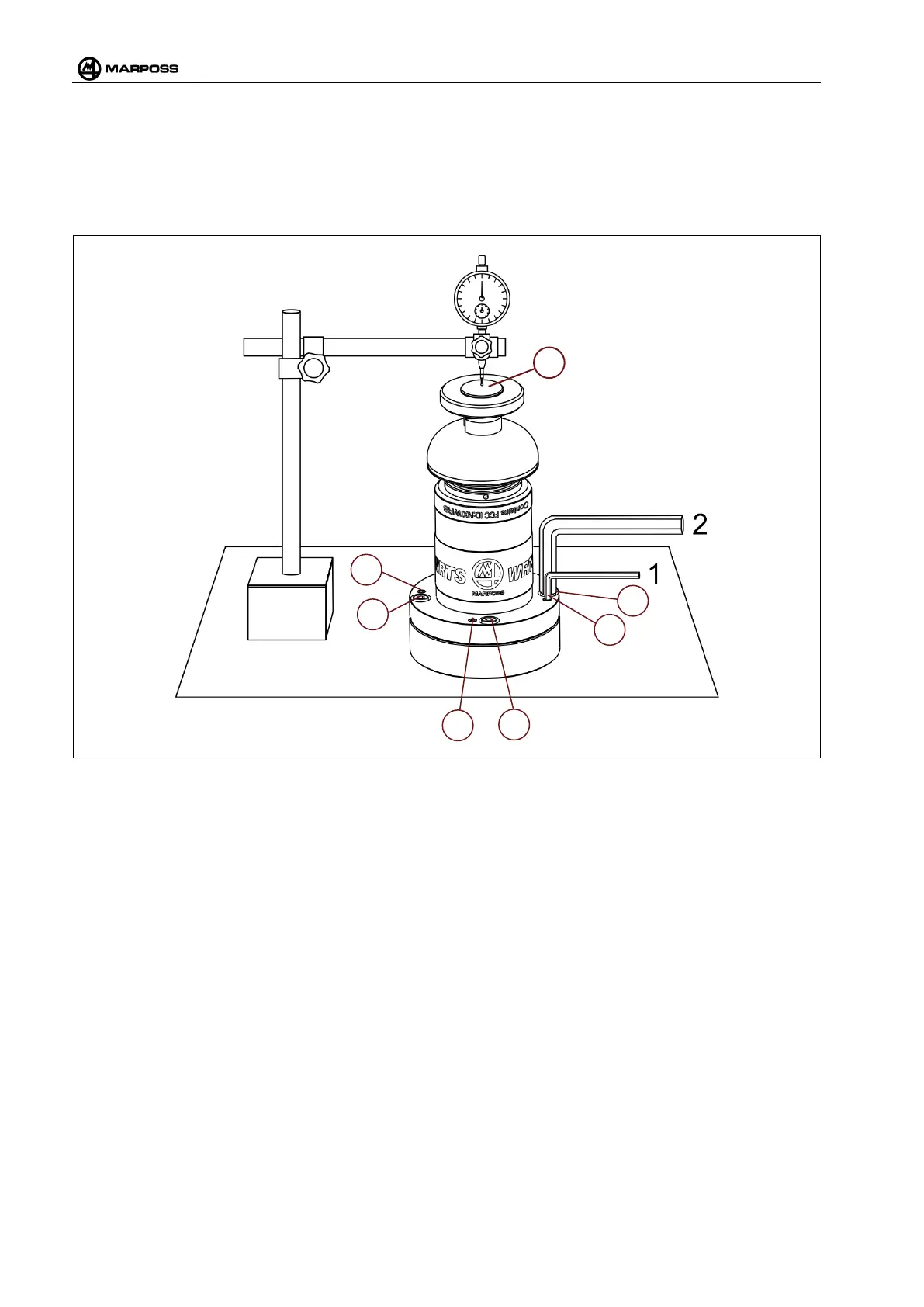

Figure 4-20. WRTS system alignment.
F
E
E
E
D
D
D
