WRS – Installation Manual
4.2.4 Assembling the tool setter/transmitter WRTS
Proceed as follows for fitting or removing the probe on/from the transmitter:
WARNING
When fitting the probe, make sure that the seal rings are in very good conditions and correctly
positioned in their own seat.
• Screw the flange (A) to the transmitter with the wrench supplied with the equipment
• Screw the probe (B) to the flange using the wrench supplied with the equipment.
After completing the operation, it is necessary to align the system (see section 4.7.3 on page 32).

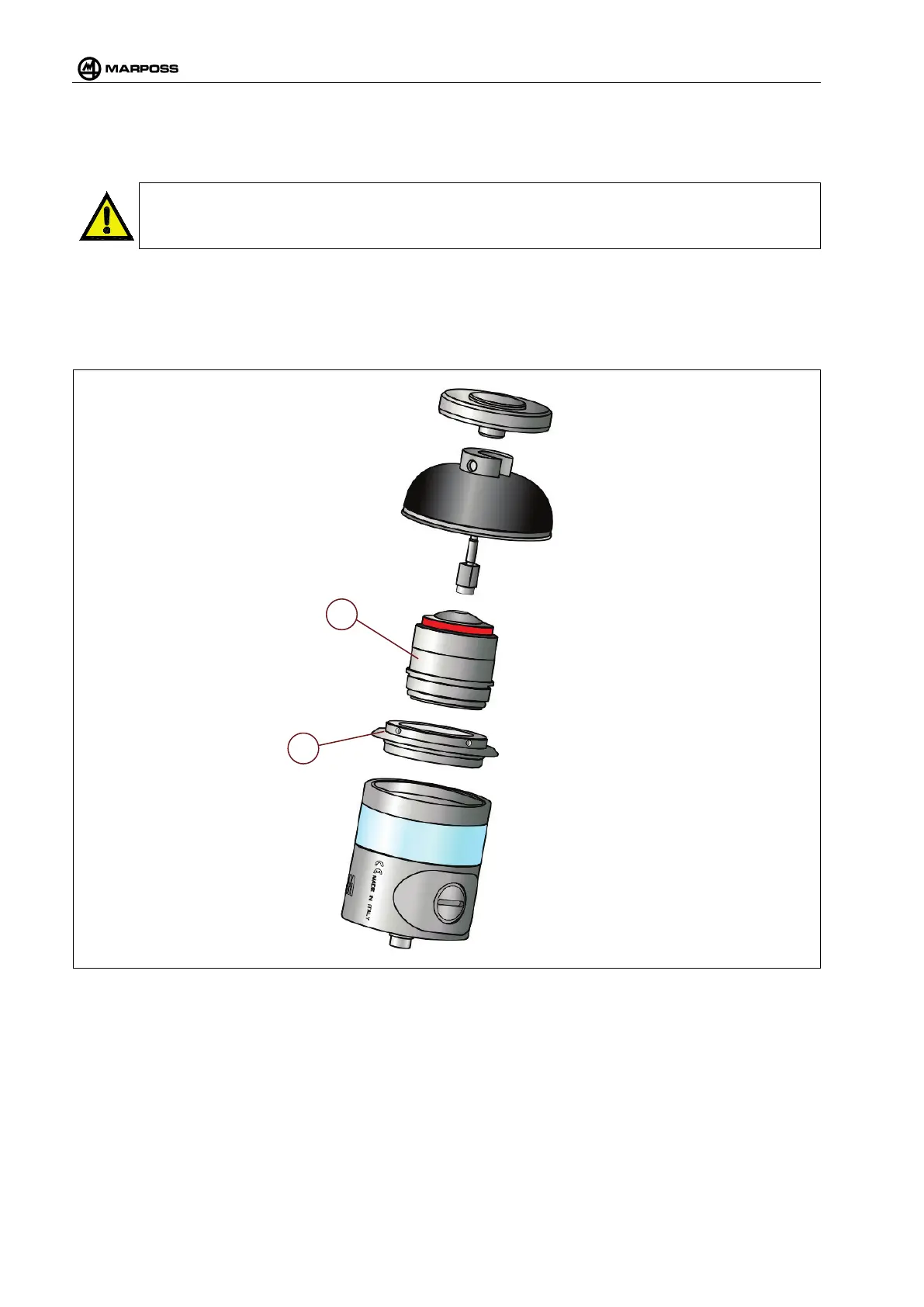

Figure 4-10. Fitting of tool setter/ WRTS transmitter.
