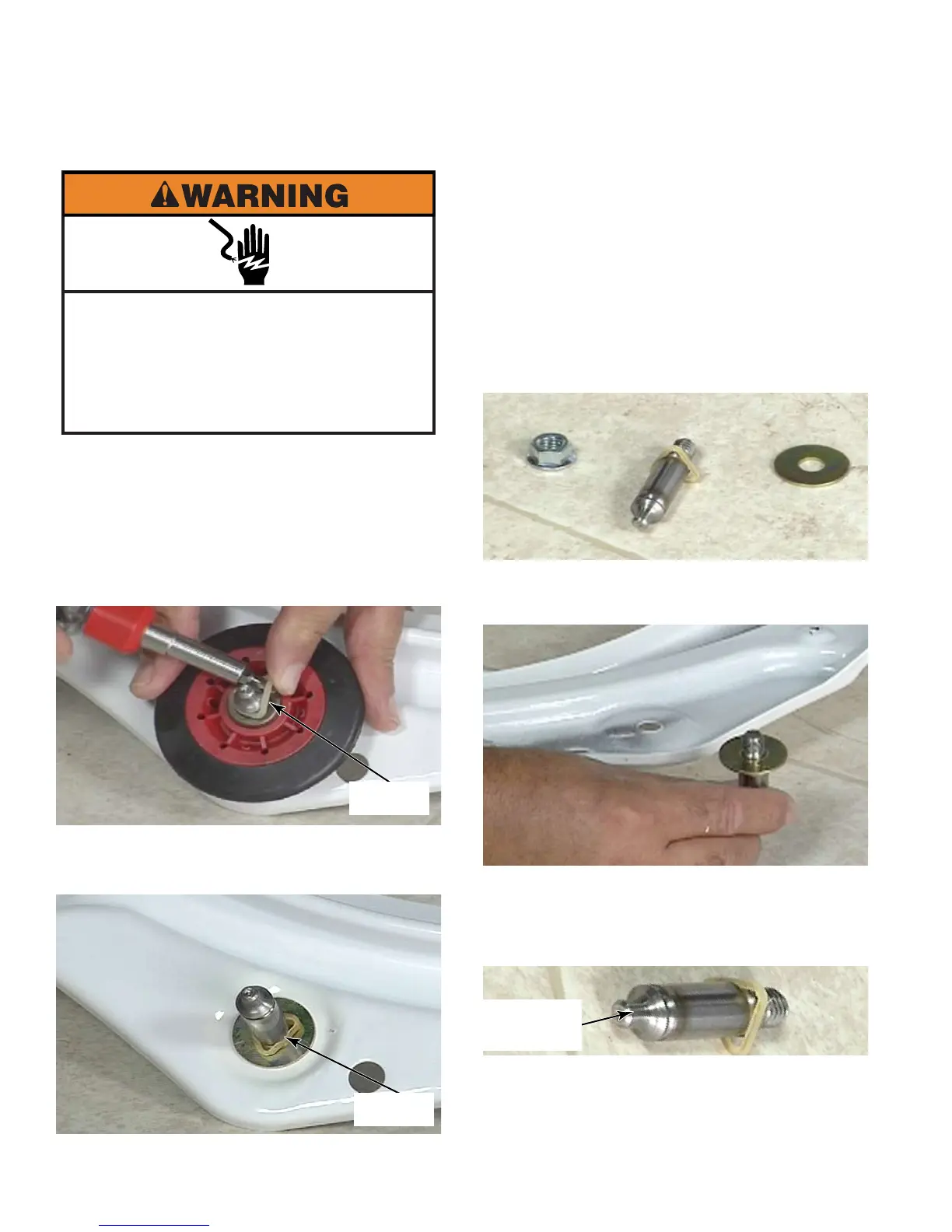

Remove front bulkhead (See page 4-18).
Two front support rollers are mounted to the
front bulkhead on shafts.
Remove tri-clip from shaft and slide support
roller off shaft.
There is another tri-clip behind the roller for
proper spacing.
1.
2.
3.
4.
When replacing a roller, always
replace both tri-clips to make sure that roller
will stay in position while running.
DO NOT lubricate this wheel or
shaft. Clean shaft with fine steel wool to
eliminate squeaks, or replace worn roller
supports.
Support roller shafts are secured to the front
bulkhead with 9/16” nuts and a washer.
The washer is installed on the roller side of
the shaft.
To support the roller shaft while
trying to remove the 9/16” shaft a Vice Grip
needs to be used to hold the nipple on the
front of the roller shaft.
5.
6.
Tri-Clip
Tri-Clip
Proper
Grip Area
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
