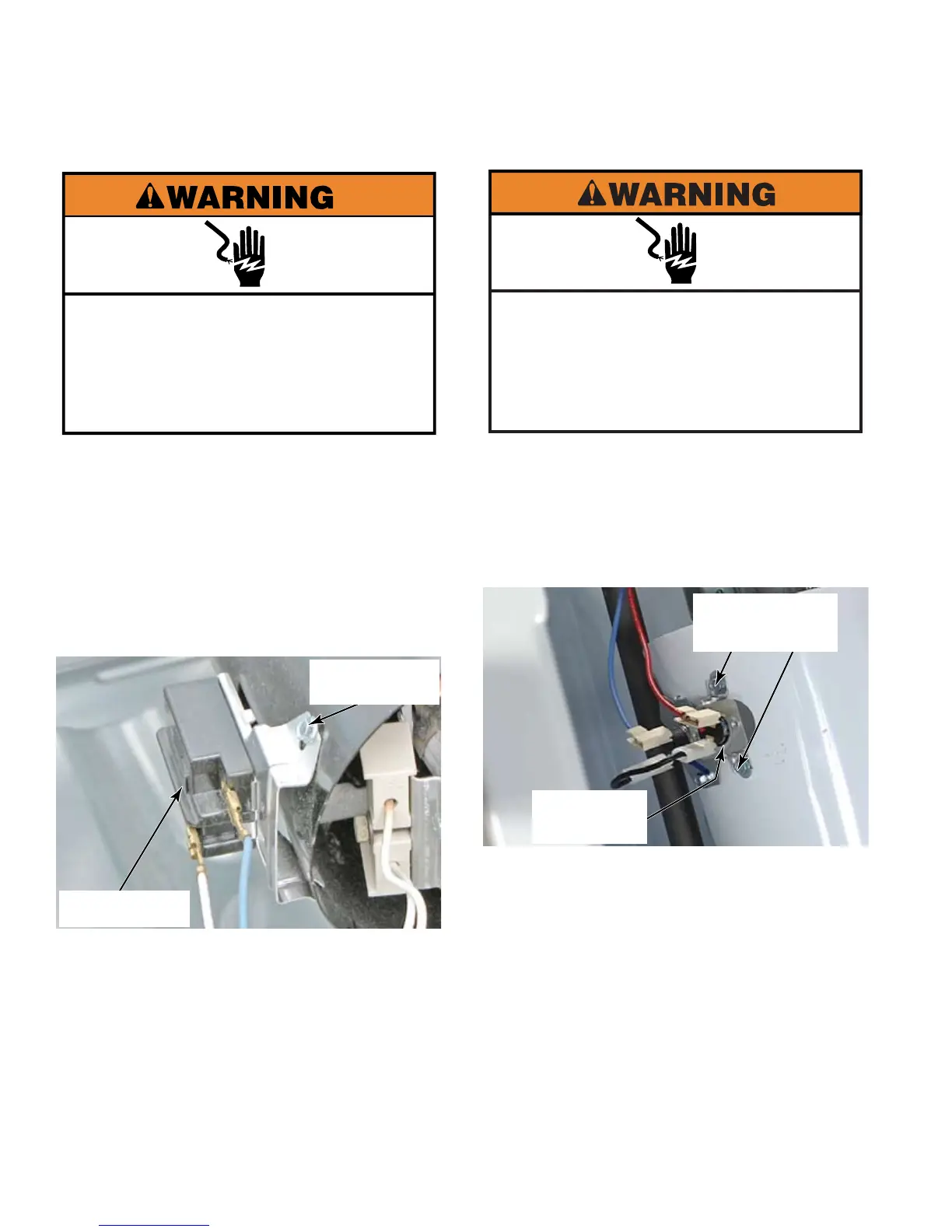

Maytag MDE25PN - Remove Flame Sensor; Remove High Temp Thermostat

4-38
Remove service panel (See page 4-16).
Remove the two wire connectors from the
spade terminals.
The spade connectors are on tight
and pulling hard on the wire or connector
without care may pull the flame switch male
terminal off the control and render flame
switch useless.
Remove the 1/4” hex head screw.
Rotate flame sensor down to release the tab
that secures the other side.
1.
2.
3.
4.

Remove service panel (See page 4-16).
Remove red and black wire connectors.
Remove two 1/4” hex head screws and
remove high temp thermostat.
The high temp thermostat and high
temp cutout (See page 4-39) should be
ordered and replaced as a set. The high
temp thermostat is resettable and cycles to
keep the temperature from getting too hot in
the burner.
1.
2.
3.


Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Flame Sensor
1/4” Hex Head
Screw
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Two 1/4” Hex
Head Screws
High Temp
Thermostat
