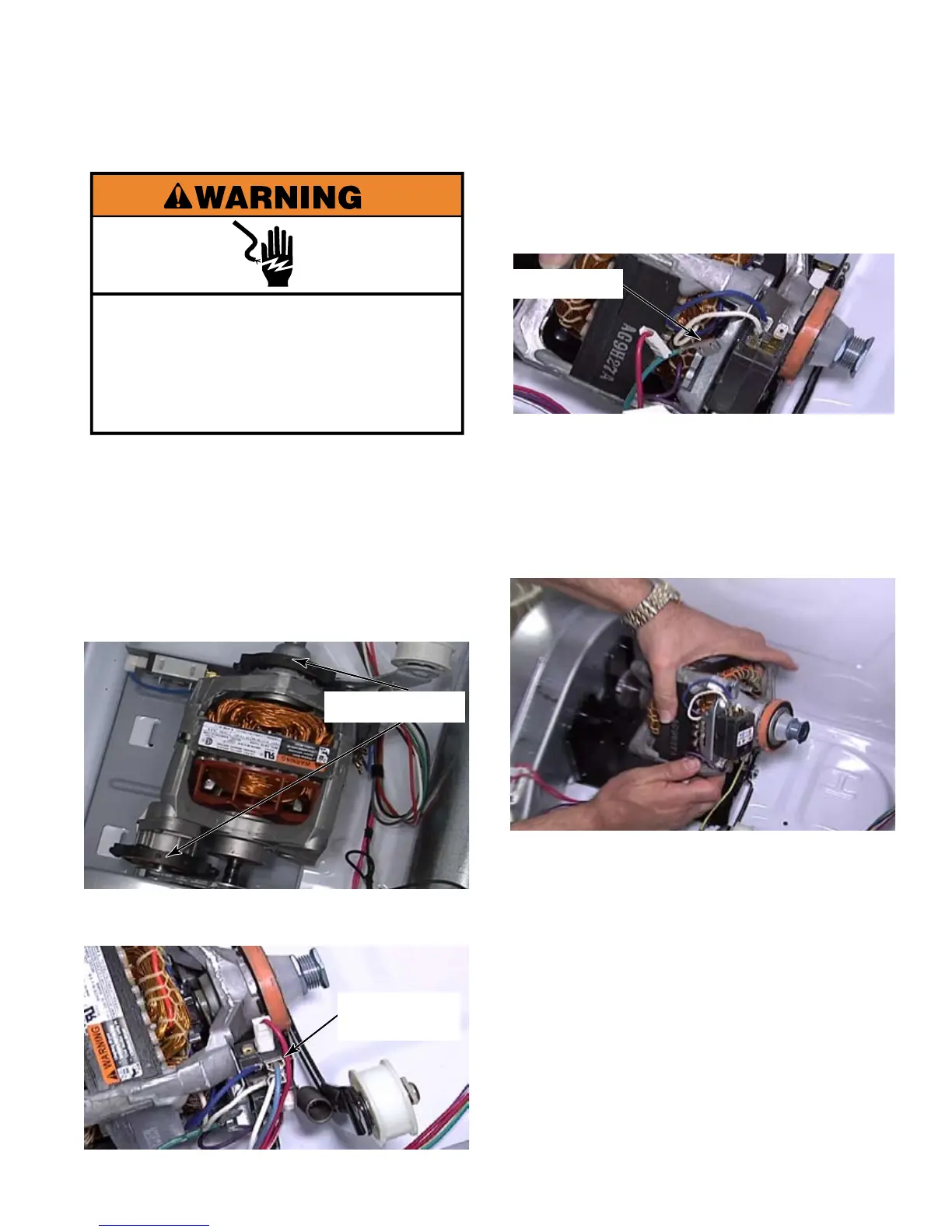

4-27
Remove the Earthing clip from the motor
frame. This will allow the motor to be rotated
enough to remove red wire with a white
stripe from the bottom of the motor switch.
There is a legend on the far side of
the motor switch to assist in placement of
the removed wires during reinstallation of
the motor.
Lift motor out of the cabinet with speed
increaser attached.
When replacing a complete
motor for a wiring or a bearing issue not
related to the speed increaser, it would be
prudent to remove and keep the speed
increaser assembly for future repair needs.
This could save the expense of replacing
another motor if a speed increaser fails.
5.
6.
Remove dryer drum (See page 4-22).
Remove blower wheel (See page 4-23).
Remove motor bracket clips by placing
a nut driver on the end tip of the clip and
pressing down and toward motor until clip
pops off the hook of the bracket. Remove
both front and rear clips.
Disconnect 3 motor wires; red, blue, and
white, from connectors on the motor switch.
1.
2.
3.
4.
Motor Brackets
Motor Wire
Connectors
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Earth Clip
To Next Page
