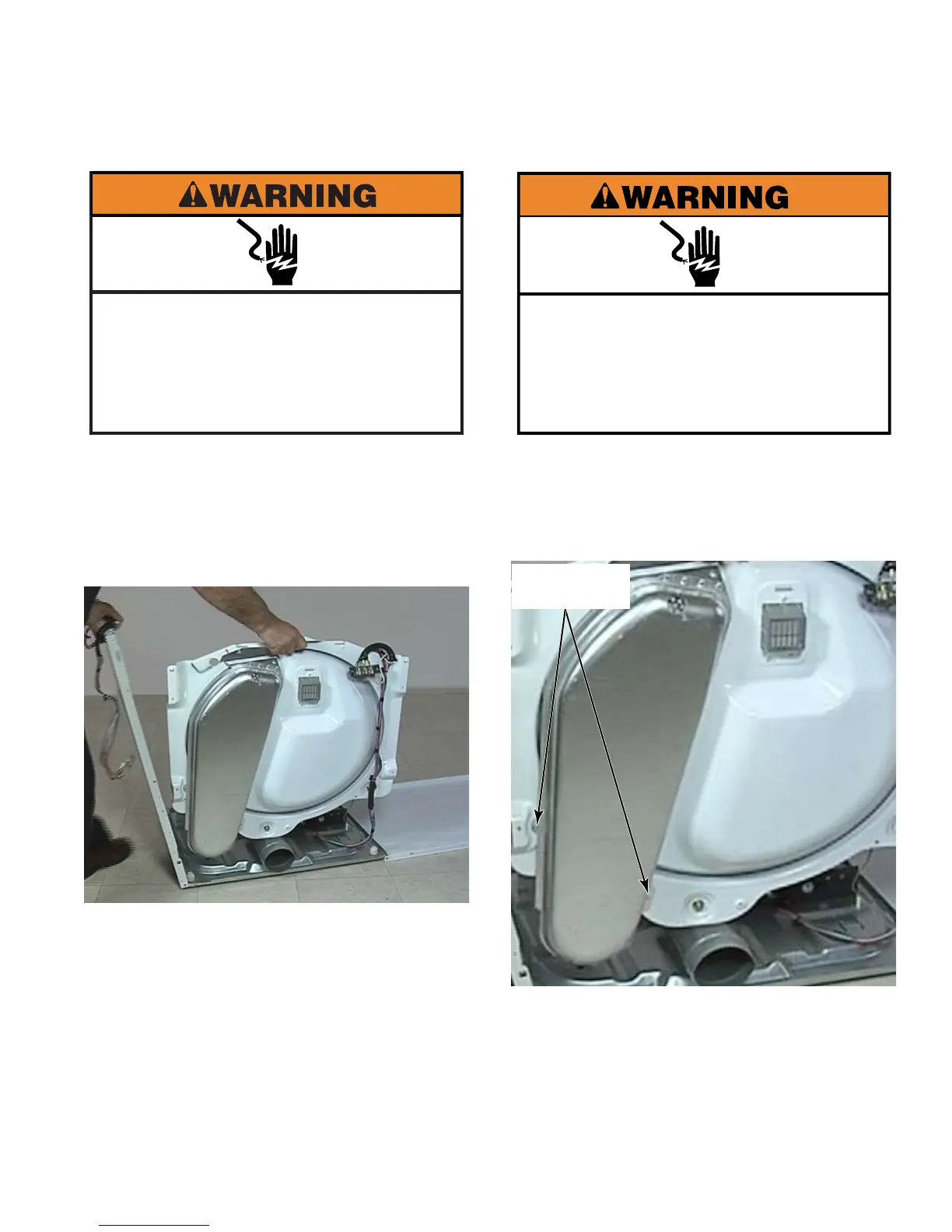

Maytag MDE25PN - Remove Rear Bulkhead; Remove Heat Plenum

4-33
Remove rear panel (See page 4-31).
Remove two 1/4” hex head screws that
secure heat plenum to back of rear
bulkhead.
Tilt lower edge of heat plenum out away
from rear bulkhead to release the tab on
the top of the heat duct from inside heat
plenum. Pull heat plenum away from rear
bulkhead.
1.
2.
3.

Two 1/4” Hex
Head Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove dryer drum (See page 4-22).
Remove side panels (See page 4-32).
Support rear bulkhead when removing side
panels.
Use a pair of pliers to squeeze two
Christmas tree clips to release wire ties
holding wiring harness to rear bulkhead.
1.
2.
3.
4.

Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
