Maytag MDE25PN - Remove Coin Vault Switch - PD Model

4-36
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove coin box.
Remove service access door from top of
metercase.

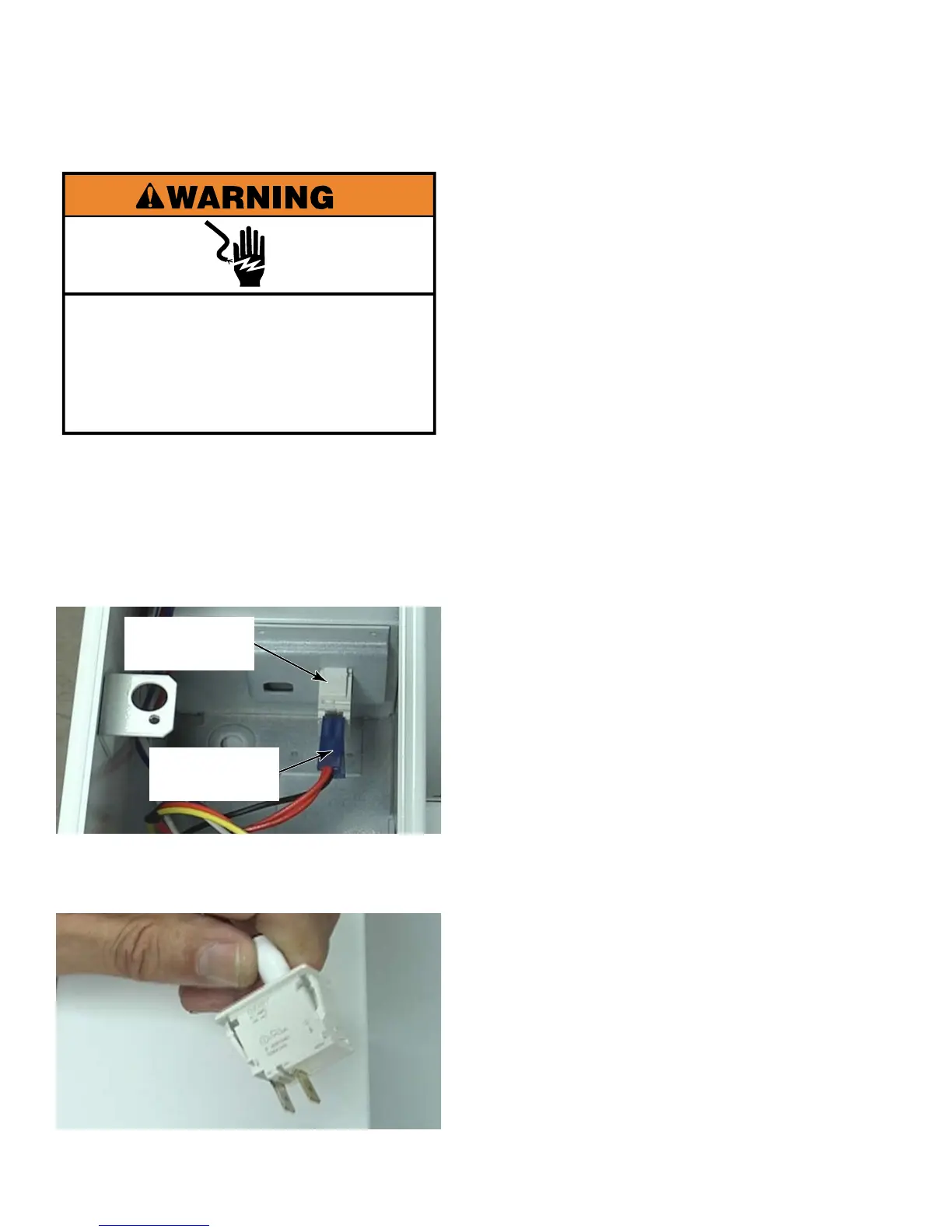

Remove two wire connectors from the
switch terminals.
Squeeze tabs on top and bottom of switch
from inside the service access area and
push switch into coin vault compartment.
1.
2.
3.
4.

2 Wire
Connectors
Upper Tab
On Switch
