5-12
Unplug dryer or disconnect power.
Turn off gas supply to dryer.

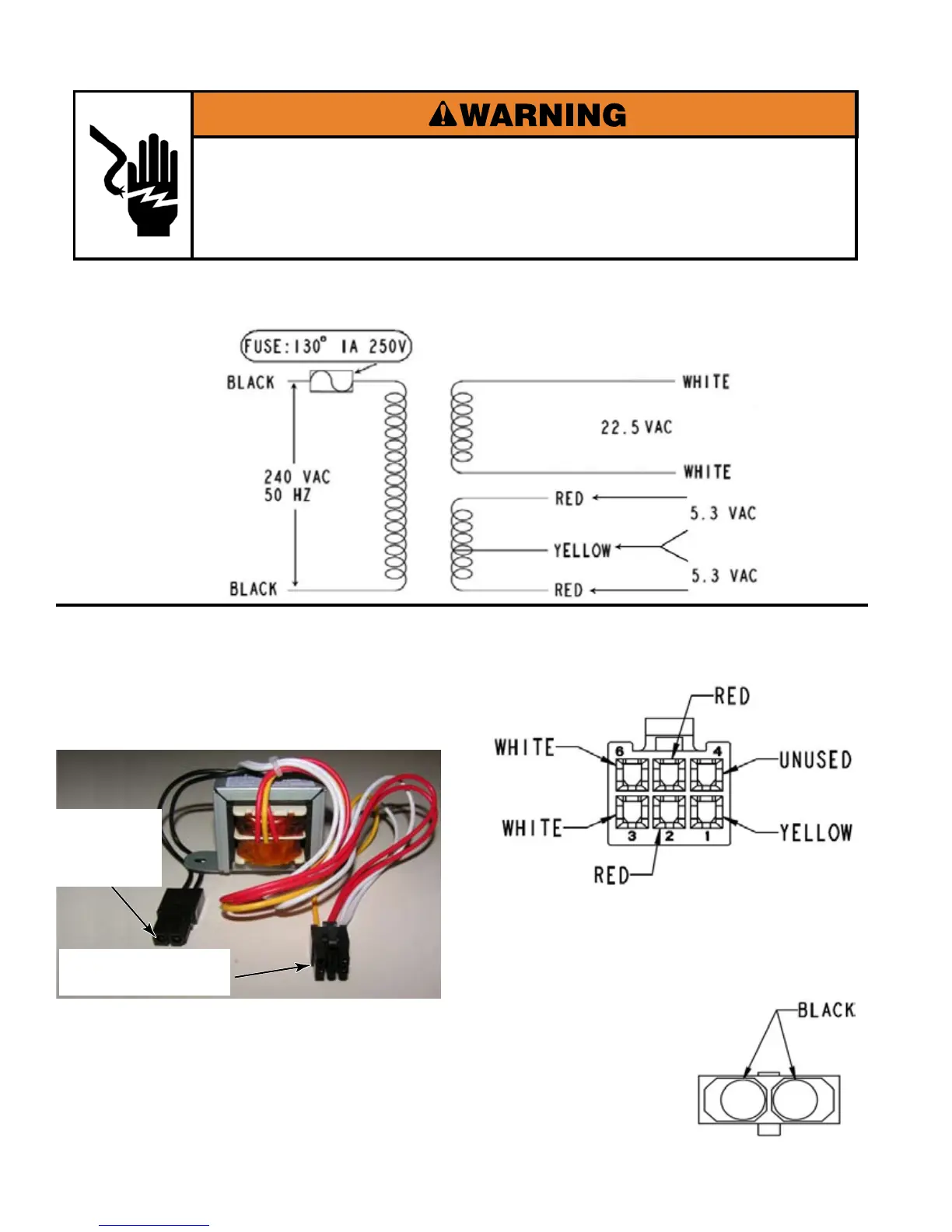

Remove transformer (See page 4-8).
Set the ohmmeter to the R X 1 scale.
Set digital ohmmeters to lowest scale.
Touch meter test leads to terminals in
transformer secondary 6-pin connector
(shown in next column).
1.
2.
3.
4.
5.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Yellow to Red = .8Ω
Red to Red = 1.2Ω
White to White = 2.4Ω
Touch the meter test leads to the following
terminals in transformer primary 2-pin
connector.
Black to Black = 29Ω.
6.
Primary
2-Pin
Connector
Secondary
6-Pin Connector
To Next Page
