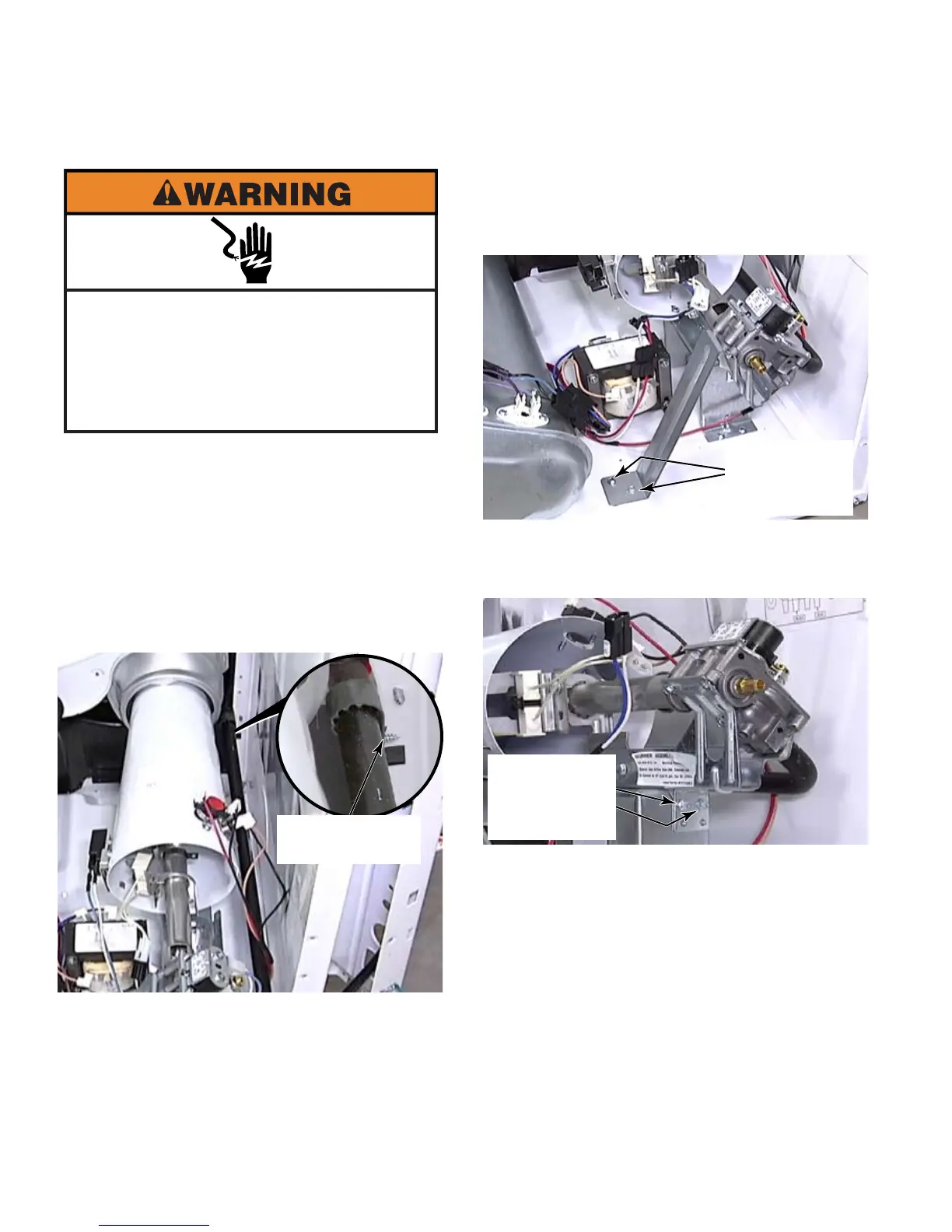

Maytag MDE25PN - Remove Gas Valve Assembly

4-42
Remove two 1/4” hex head screws that
secure the brace to base of the dryer and
twist to remove the brace from under the
gas valve.
Remove two 1/4” hex head screws that
secure the gas valve bracket to the burner
assembly.
Slide the gas valve along with the ignitor
and the gas pipe out off the dryer.
 It is recommended that the ignitor
be removed prior to removal of the gas
valve assembly to avoid damage to the
ignitor.
6.
7.
8.
Shut off the gas supply to the dryer.
Disconnect gas line from rear of the dryer.
Remove service panel (See page 4-16).
Loosen the 1/4” hex head screw that runs
left to right through the bracket that secures
the gas pipe to the rear panel.
 It may be necessary to remove the
drum in order to locate this 1/4” hex head
screw (See page 4-22).
Disconnect the wires to the ignitor, and the
valve coils.
1.
2.
3.
4.
5.

Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Gas Pipe
Securing Screw
Two 1/4” Hex
Head Screws
In Brace
Two 1/4” Hex
Head Screws
In Bracket
