4-41

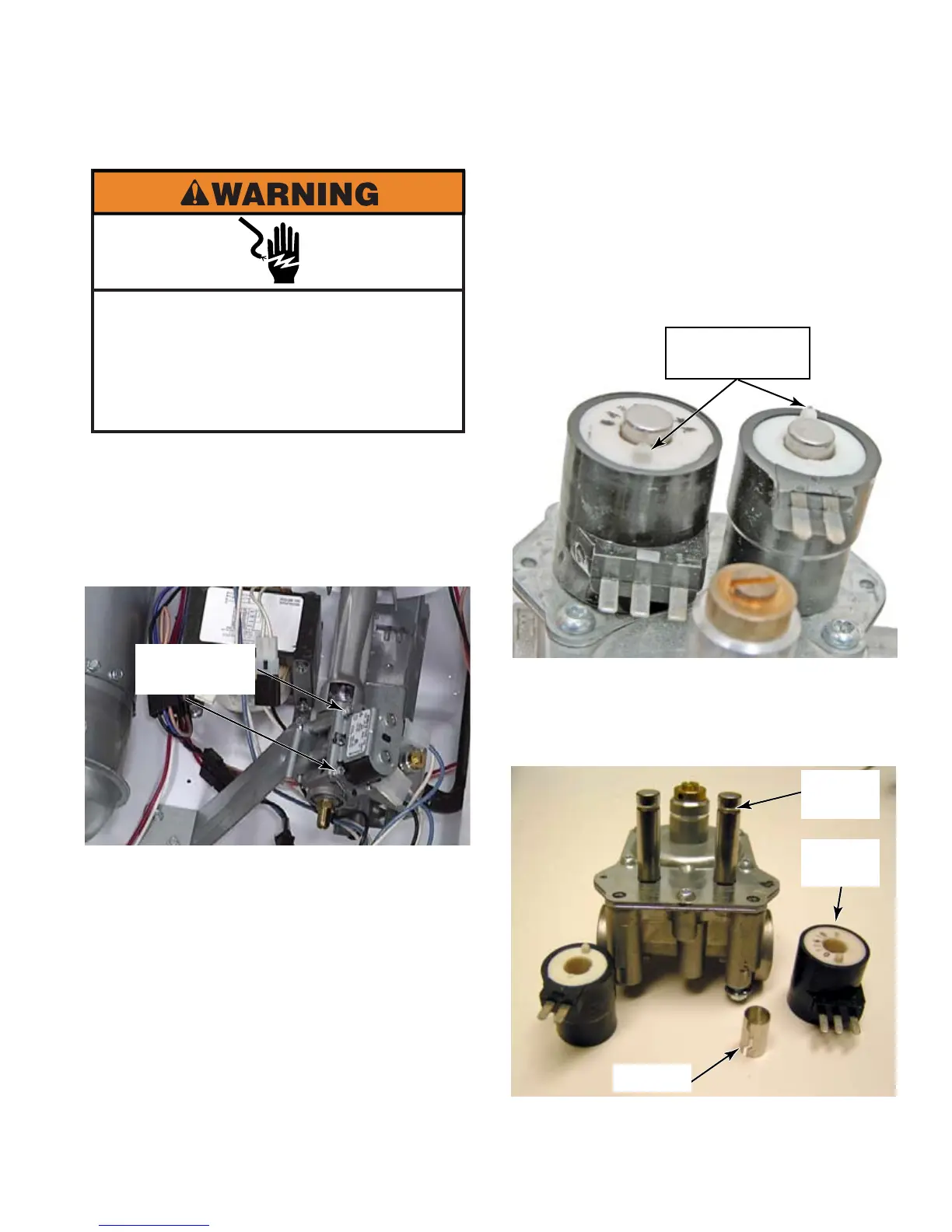

Lift bracket off coils.
When reinstalling or replacing coils
make sure that the positioning pins on the
coils are fitted into the matching holes in the
coil bracket before tightening the bracket
in place. Also make sure that replacement
coils are rated for 50Hz.
Lift coils off posts. There is a sleeve on one
post, make sure to save it for reinstallation
or replacement of the coils, because new
coils do not come with a new sleeve.
4.
5.
Remove service panel (See page 4-16).
Disconnect wire connector from each coil
Remove two screws that secure the coil
bracket.
1.
2.
3.
Coil Bracket
Screws
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.
Sleeve
Sleeved
Post
Sleeved
Coil
Coil Positioning
Pins
To Next Page
