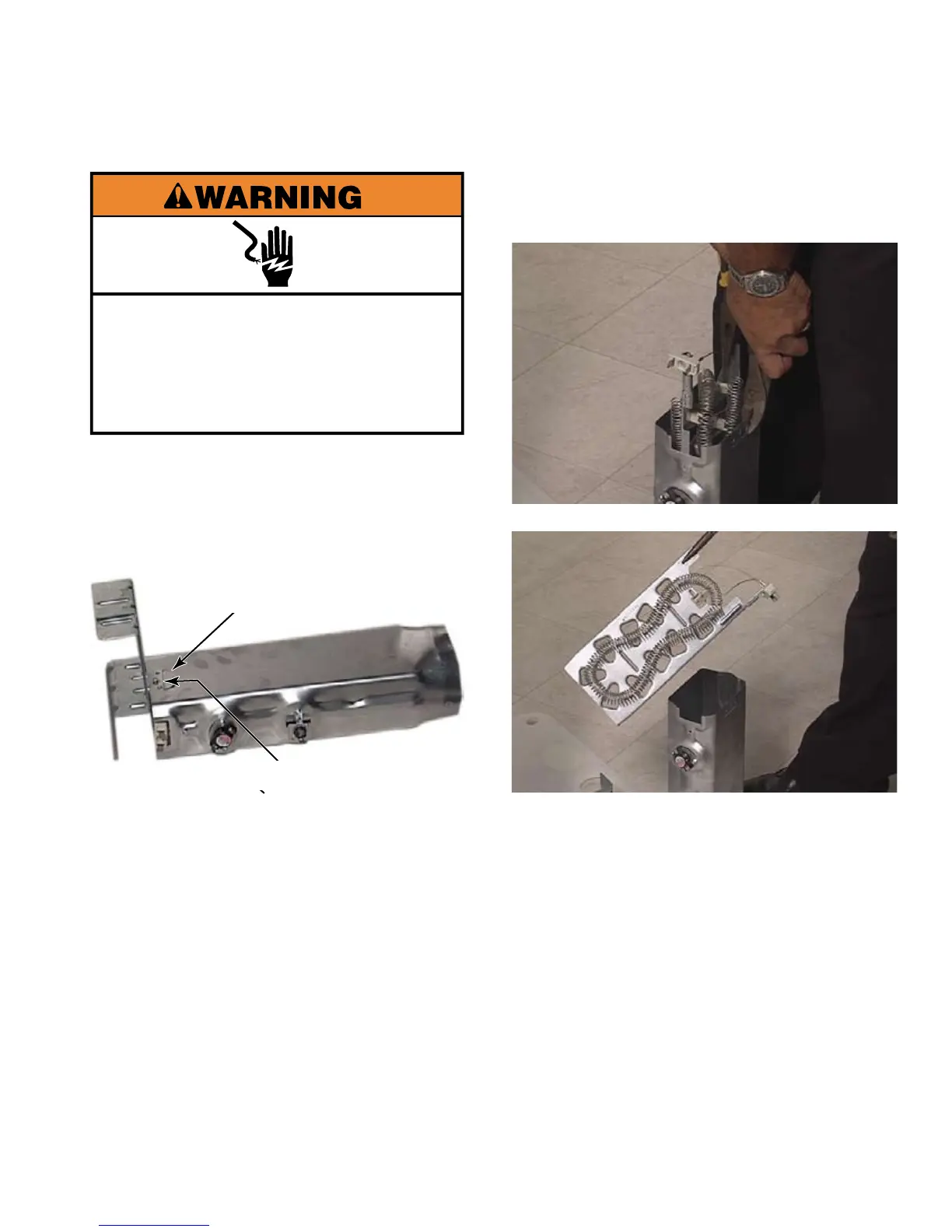

To service the element, remove electric heat
assembly (See page 4-44).
Remove two 1/4” hex head screws from the
bottom and side of housing.
Slide mounting bracket tab out of slot in the
housing and remove it.
1.
2.
3.
Use a pair of pliers to hold the housing and
another pair of pliers to pull heater coil up
out of the housing.
4.
Two 1/4” Hex Head Screws
Mounting Bracket Tab
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
