OUTLINE
03-00–2
DRIVELINE/AXLE SPECIFICATIONS
id030000100200
End Of Sie
Item Specification
Front axle
Bearing type Angular ball bearing
Rear axle
Bearing type Angular ball bearing
Front drive shaft
Front drive shaft joint type
Wheel side Bell joint
Differential side Tripod joint
Front drive shaft diameter (mm {in})
LH: 27.0 {1.06}
RH: 30.0 {1.18}
Joint shaft diameter (mm {in}) 45.0 {1.77}
Rear drive shaft (AWD)
Rear drive shaft joint type
Wheel side Bell joint
Differential side Double offset joint
Rear drive shaft diameter (mm {in}) 24.0 {0.94}
Rear differential (AWD)
Rear and front wheel torque distribution unit Electronic control coupling
Reduction gear Hypoid gear
Differential gear Straight bevel gear
Ring gear size (Inches) 7.35
Final gear ratio 2.928
Gears:
Number of teeth
Drive pinion 14
Ring gear 41
Differential oil
Ty p e
Grade API service GL-5
Viscosity SAE 80W-90
Amount
(Approximate quantity)
(L {US qt, lmp qt}) 1.0 {1.1, 0.9}

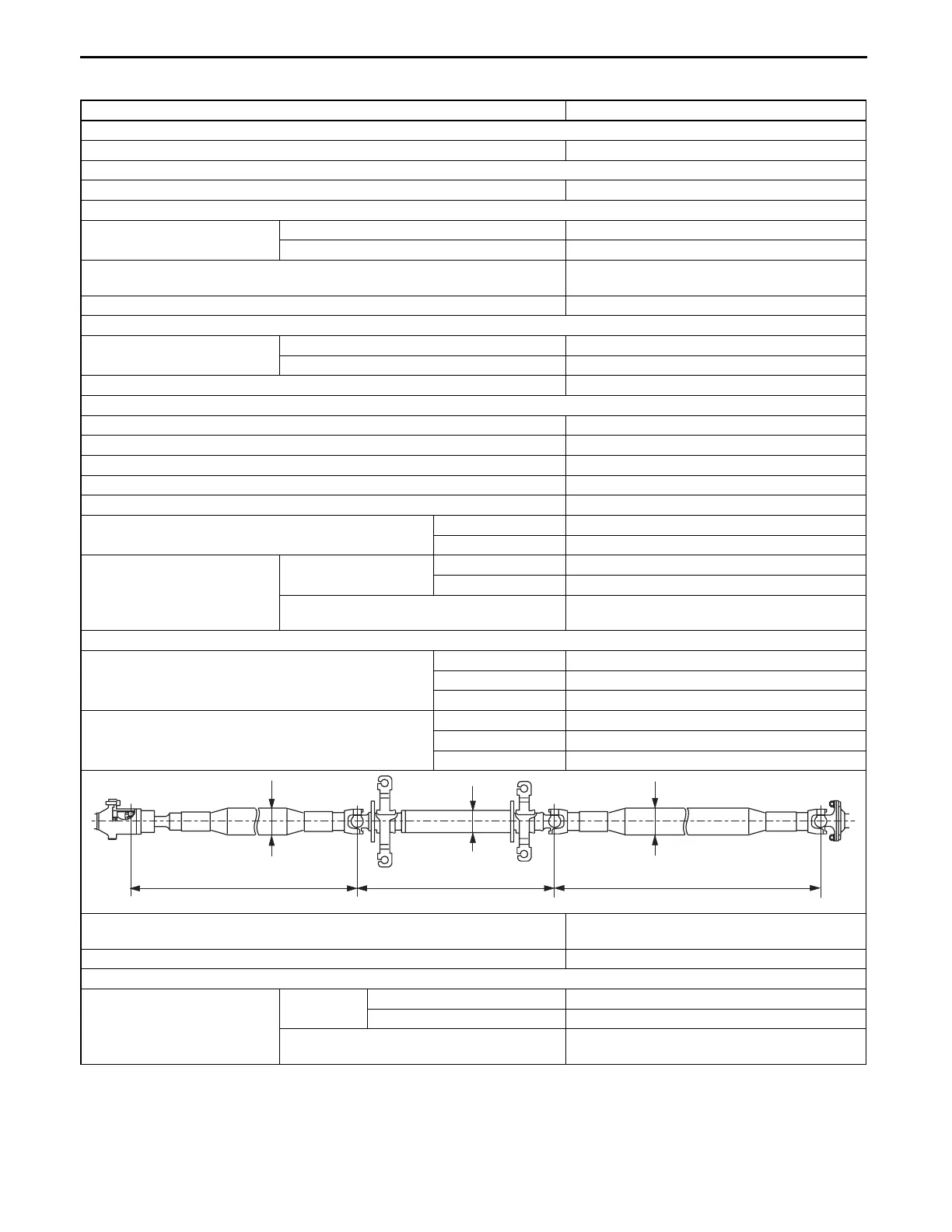

Propeller shaft (AWD)
Length (mm {in})
L1 658.0 {25.91}
L2 570.6 {22.46}
L3 815.9 {32.12}
Outer diameter (mm {in})
D1 75.0 {2.95}
D2 63.5 {2.50}
D3 75.0 {2.95}
Joint type
Constant velocity joint
and cross-shaped joint
Constant velocity joint Double offset joint
Transfer (AWD)
Transfer oil
Ty p e
Grade API service GL-5
Viscosity SAE 75W-140
Oil capacity
(approx. quantity)
(L {US qt, Imp qt}) 0.532 {0.562, 0.468}
L1 L2 L3
D1
D2
D3
