AUTOMATIC TRANSAXLE SHIFT MECHANISM
05-18–4
Down Switch
Outline
• The down switch detects a down-shift operation in the M range and sends a down-shift request signal to the
TCM.
Operation
• The down switch is an on/off type switch that turns on when the selector lever is in the M range (–) side
position.
End Of Sie
NG: SHIFT LOC K SYSTEM
SHIFT LOCK SYSTEM OUTLINE
id051800100700
• To make operation smoother and to simplify internal construction, the shift lock system directly determines
movement of the slider block with the slider pin.
• The shift lock unit consists of the interlock cable, interlock cam, and lock unit.
End Of Sie

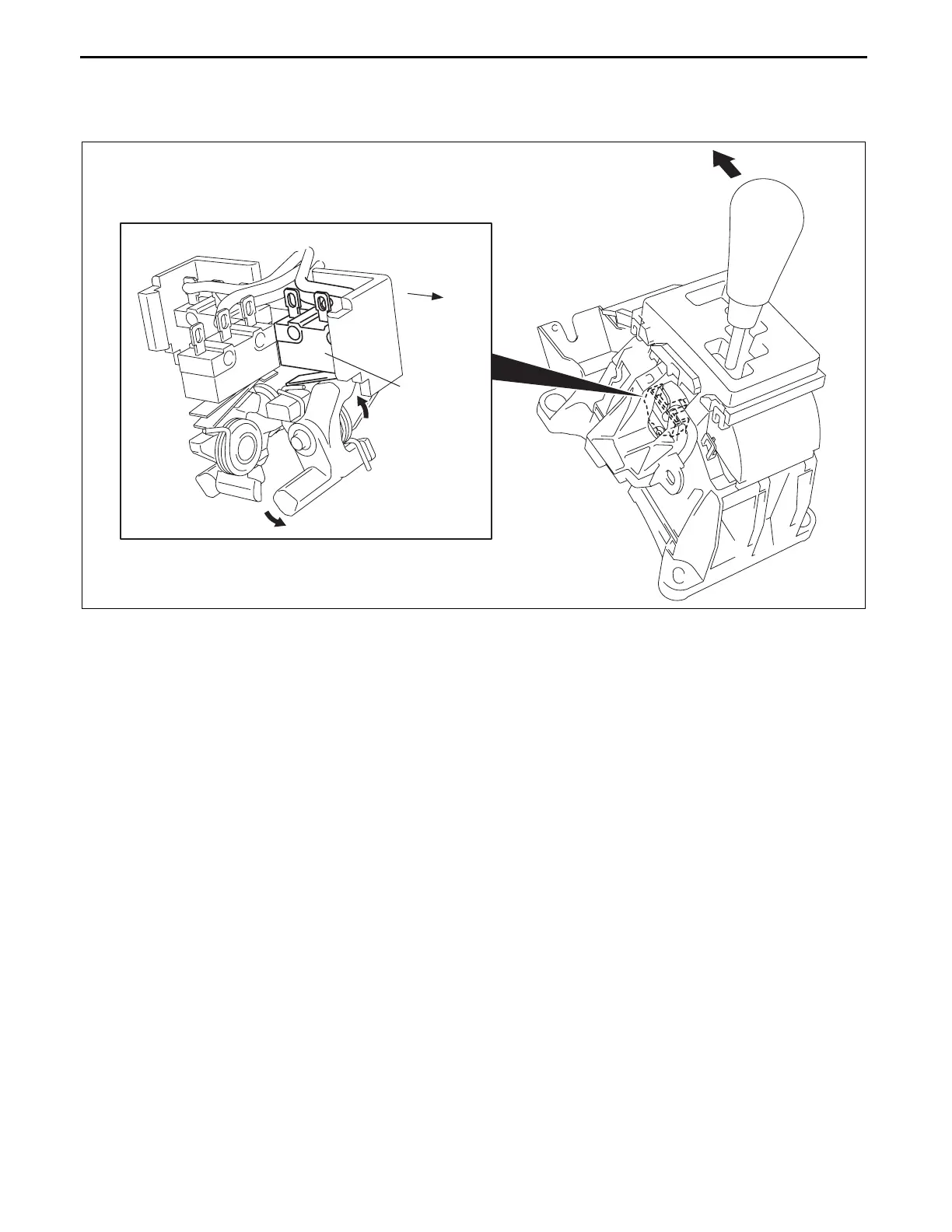

DOWN
SWITCH
FRONT
SIDE
ac9uun00000330
