LUBRICATION [MZI-3.5]
01-11–2

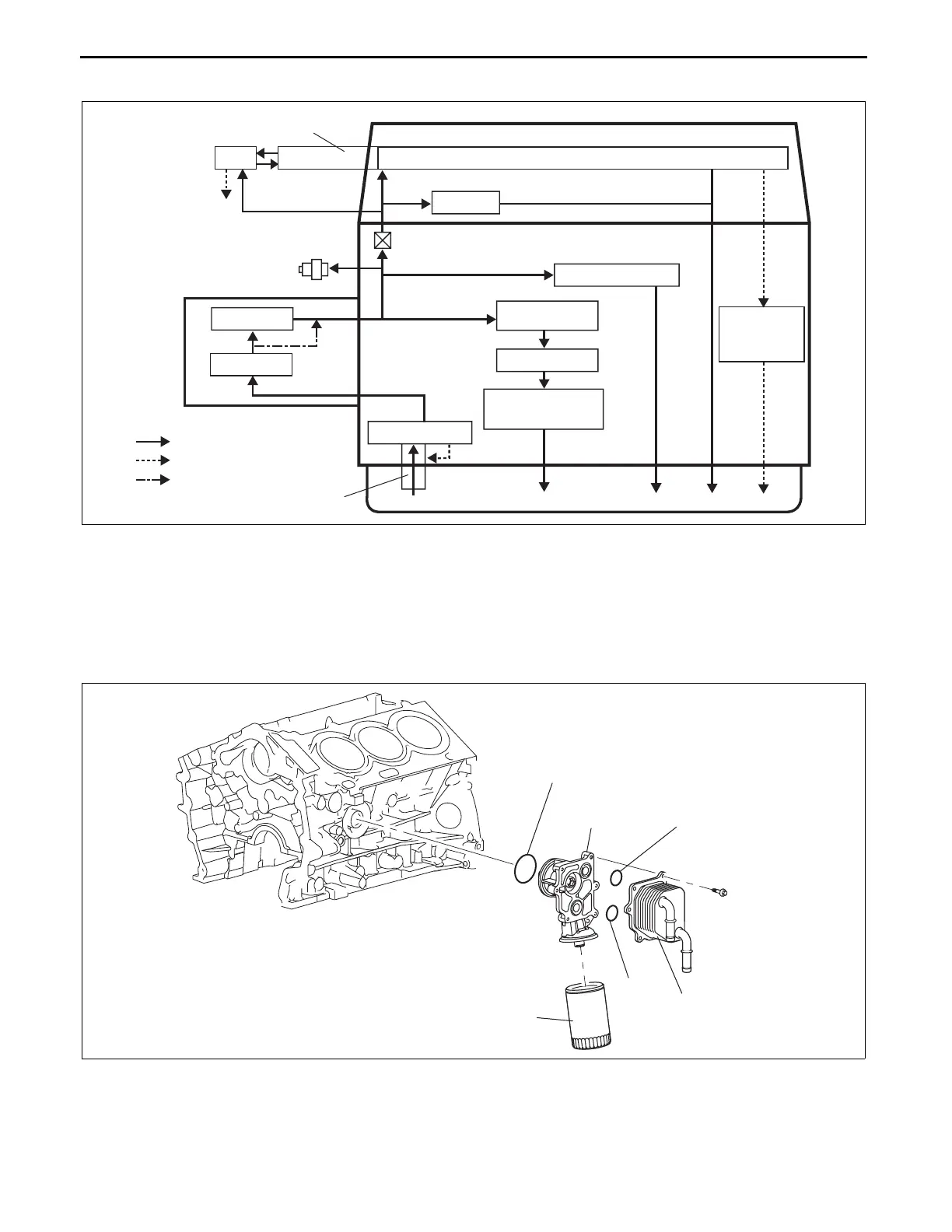

LUBRICATION SYSTEM FLOW DIAGRAM [MZI-3.5]
id0111e1100300
End Of Sie
NG: OIL FILTER
OIL FILTER, OIL COOLER CONSTRUCTION [MZI-3.5]
id0111e1118100
• The oil filter component is installed on the left surface (vehicle front) of the cylinder block.
• A full-flow paper element type oil filter has been adopted.
• A water-cooled type oil cooler has been adopted to reduce the engine oil degradation.
End Of Sie
NG: OIL PAN
OIL PAN
OIL STRAINER
OIL PUMP
OIL COOLER
OIL FILTER
OIL PRESSURE SWITCH
MAIN BEARING
CRANKSHAFT
CONNECTING ROD
BEARING
TAPPET
CAMSHAFT
OIL BYPASS PASSAGE
TIMING
CHAIN
CHAIN TENSIONER
ORIFICE
OIL PASSAGE
OIL RELIEF PASSAGE
OCV
VARIABLE VALVE
TIMING ACTUATOR
TO OIL PAN
ac9uun00000468
OIL FILTER
OIL COOLER
OIL FILTER BODY
O-RING
O-RING
O-RING
ac9uun00000471
