LUBRICATION [MZI-3.5]
01-11–3
01-11
OIL PAN CONSTRUCTION [MZI-3.5]
id0111e1100400
• An aluminum alloy oil pan has been adopted for noise reduction.
• An oil pan baffle plate has been adopted inside the oil pan to stabilize engine oil diffusion by crankshaft rotation
and oil level when the vehicle rolls.
• A silicon sealant with excellent sealing qualities has been adopted.
End Of Sie
NG: OIL PUMP
OIL PUMP CONSTRUCTION [MZI-3.5]
id0111e1100600
• The oil pump is directly driven by the crankshaft to
reduce engine noise.
• A trochoid gear type oil pump has been adopted
to ensure stable discharge function.
• The oil pump cannot be disassembled. If there is
an oil pump malfunction, replace it as a single
unit.
• The oil pump regulator, which adjusts the oil
pressure, is built into the oil pump body.
End Of Sie

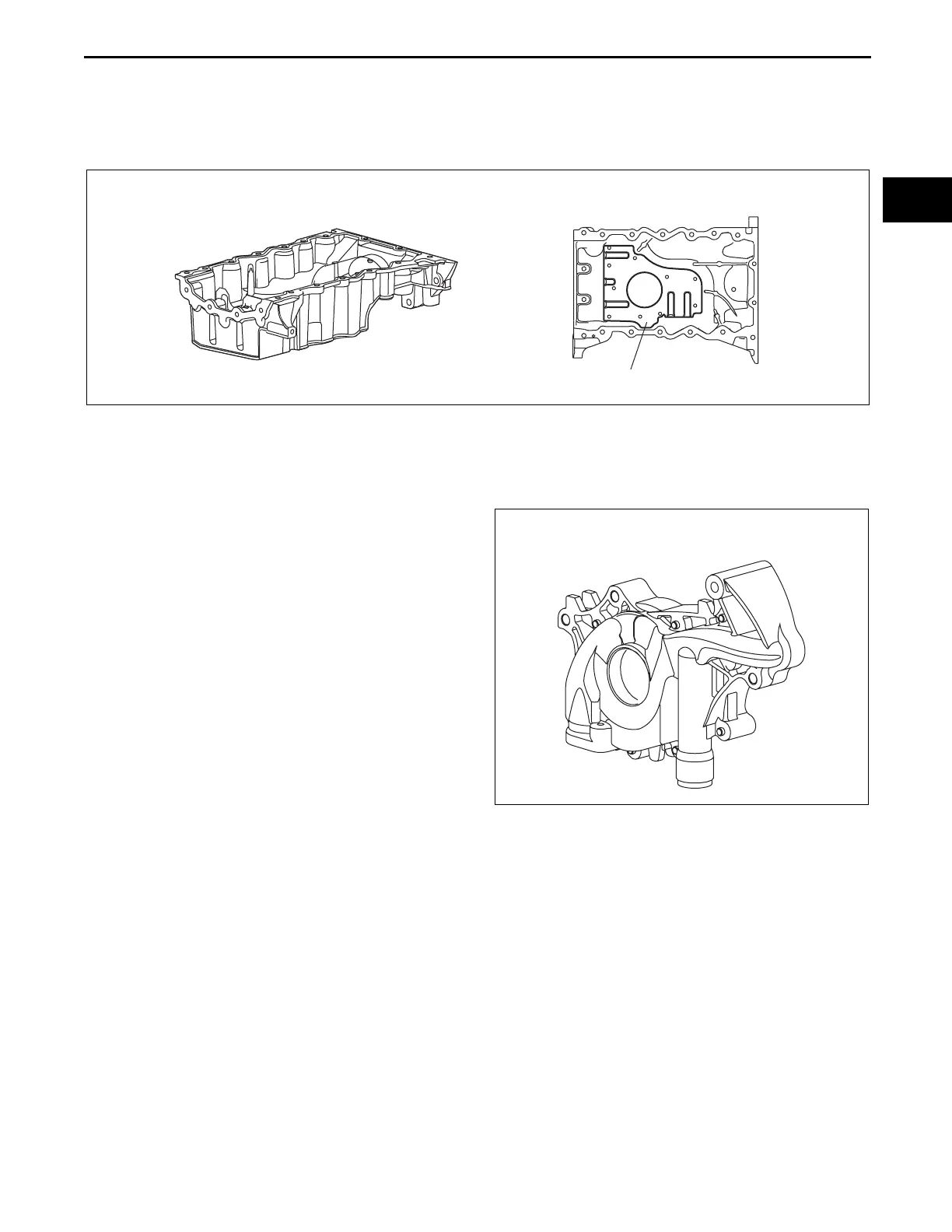

EXTERNAL VIEW
OIL PAN BAFFLE PLATE
ac9uun00000469
EXTERNAL VIEW
ac9uun00000470
