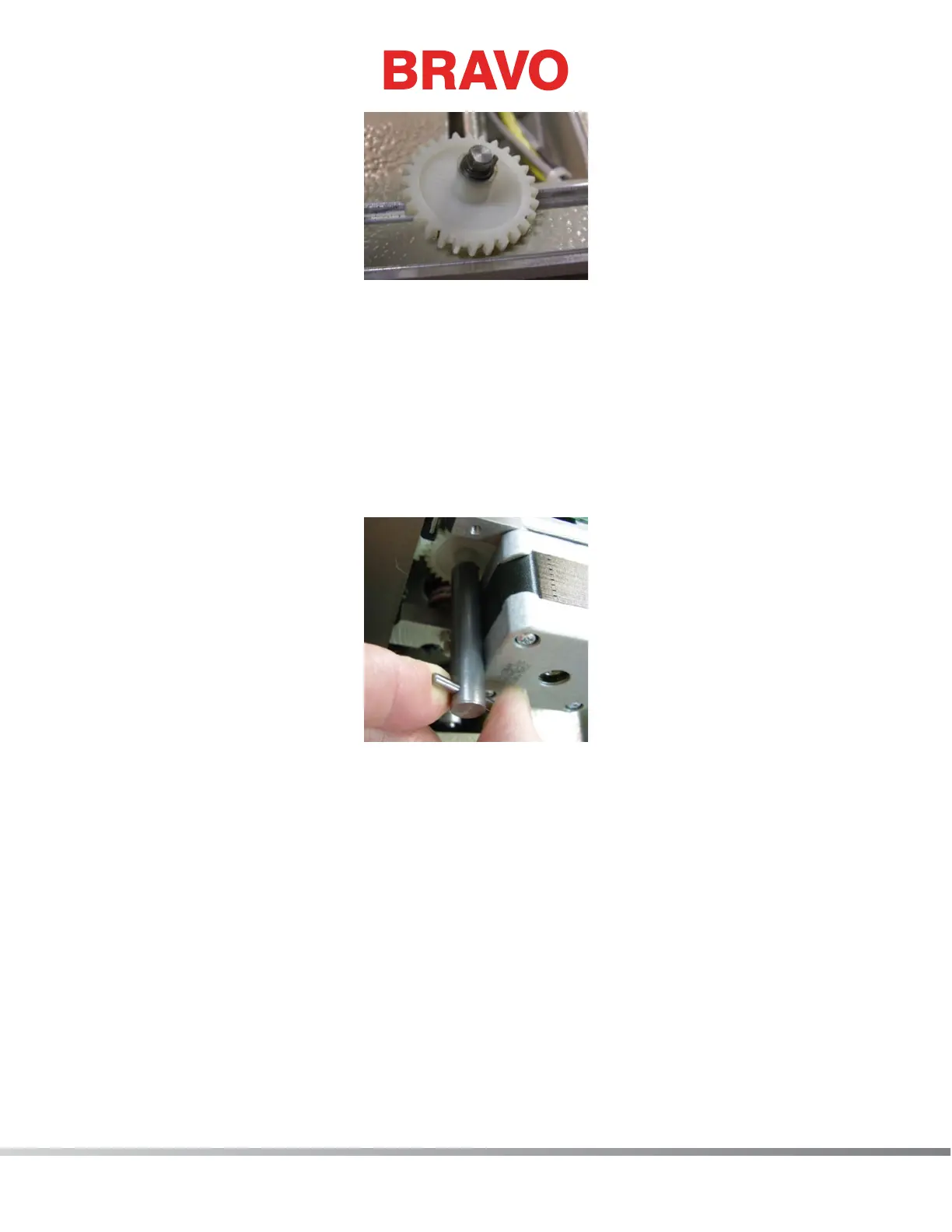

Figure 3.
5. Remove the retaining ring, washer and broken gear from shaft.
6. Assemble the new gear and re-install the washer and retaining ring.
7. Apply #222 Loctite to the threads of the Feeder Drive Gear Shaft.
8. Using the tool, carefully thread the shaft back into the drive base making sure the gear teeth are
aligned with the gear on the Thread Feeder Assembly.
9. Using the T-handle on the tool, nger tighten (using tips of thumb and forenger only) the shaft
only.
Figure 4.
10. Replace the Color Change Cover to complete the instructions.
