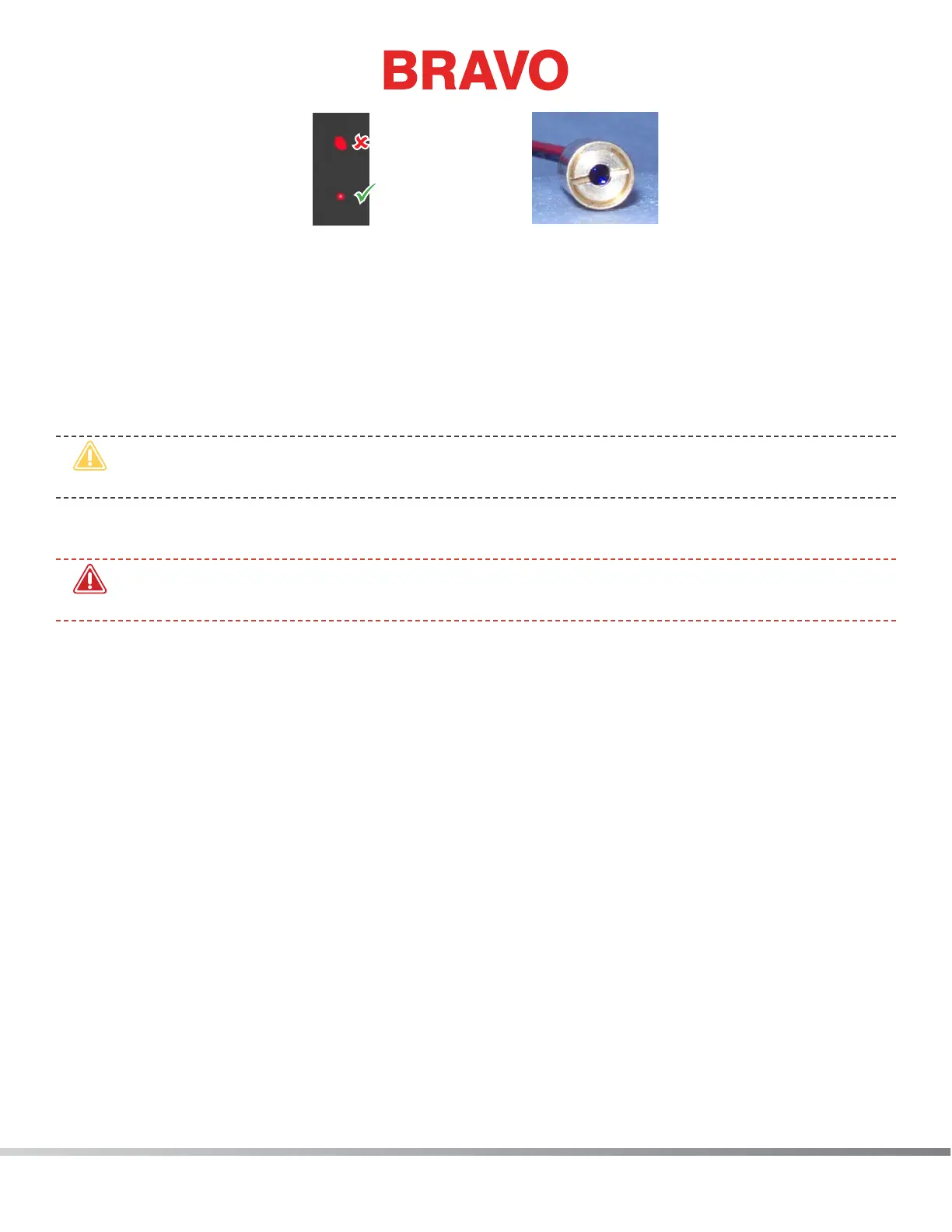

Figure 1 - Laser LensFigure 2 - Laser Light Focus
6. Adjust the focus of the laser light by aiming it at a wall or a similar at surface about from a
distance of about 10 feet and using a screw driver to adjust the size of the reected light on the
wall. DO NOT look directly at the laser light source while it is energized!!
a. To tighten the focus of the laser beam, turn the lens clockwise.
b. To loosen the focus of the laser beam (make the dot bigger, less concentrated), turn the lens
counter-clockwise.
•
CAUTION!! DO NOT over tighten or loosen the laser lens too far or you will damage the internal
components.
7. When the laser is adjusted properly, turn the machine OFF.
•
WARNING!! DO NOT proceed past this step until the machine is turned OFF!!! Failure to turn
the machine off may result in personal injury or damage to the machine.
8. Install the laser assembly using the procedures provided in Laser Pointer Assembly section.
