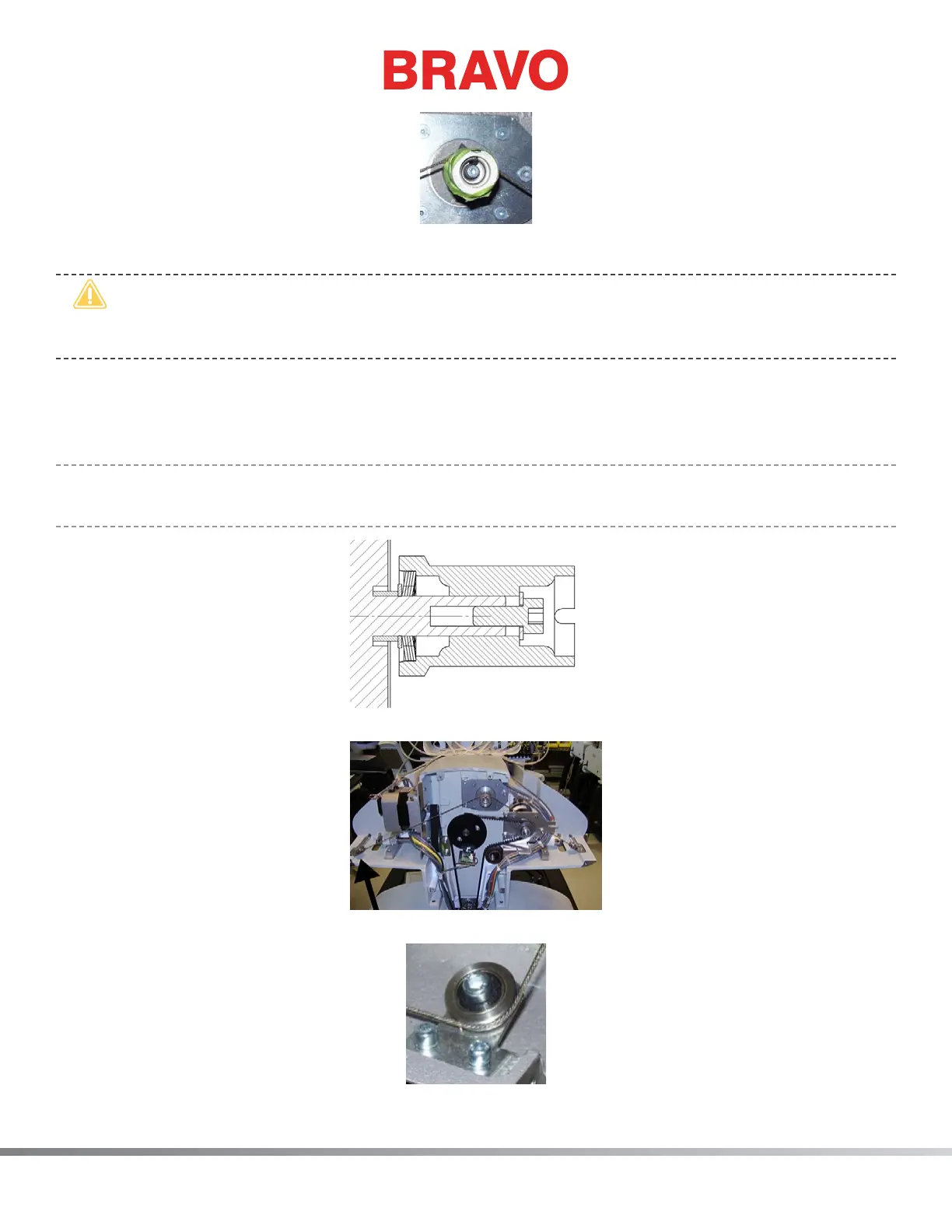

Figure 1 - X-Cable Spool (Taped and Installed)
•
CAUTION!! DO NOT remove the tape from the x-cable spool when you install it until the cables
are tightened up. The cable will become unwound and will be extremely difcult to rewind with
the precise lengths needed to install it on the machine.
6. Install the x-cable spool assembly on the x-motor shaft with an 8mm bushing, 5/16IDx.031 THK
shaft spacer, four 8mmIDx18mmOD external star washers, one.173IDx.375OD D-Shaped washer,
and one M4x10mm cap head socket screw. Tighten the screw to 11 in-lbs (1.2Nm) of torque.
•
The four external washers are already inside the X-Cable spool assembly. Handle with care to
prevent the washers from falling out.
Figure 2 - Assembly Drawing
Figure 3 - Right Rear Pulley
Figure 4 - Right Rear Pulley Close Up
