X-Beam Assembly
•
This repair requires timing and other adjustments and should be done only by an authorized
service technician.
The only two reasons to remove the x-beam assembly for repair would be if the two steel rails inside the
x-beam are damaged because of fretting corrosion due to improper adjustment or lack of lubrication.
Replacement Parts Needed:
(Only if defective - replace them where indicated in the below procedures.)
• X-Beam w/Rails Assembly
Replacement/Repair Procedures:

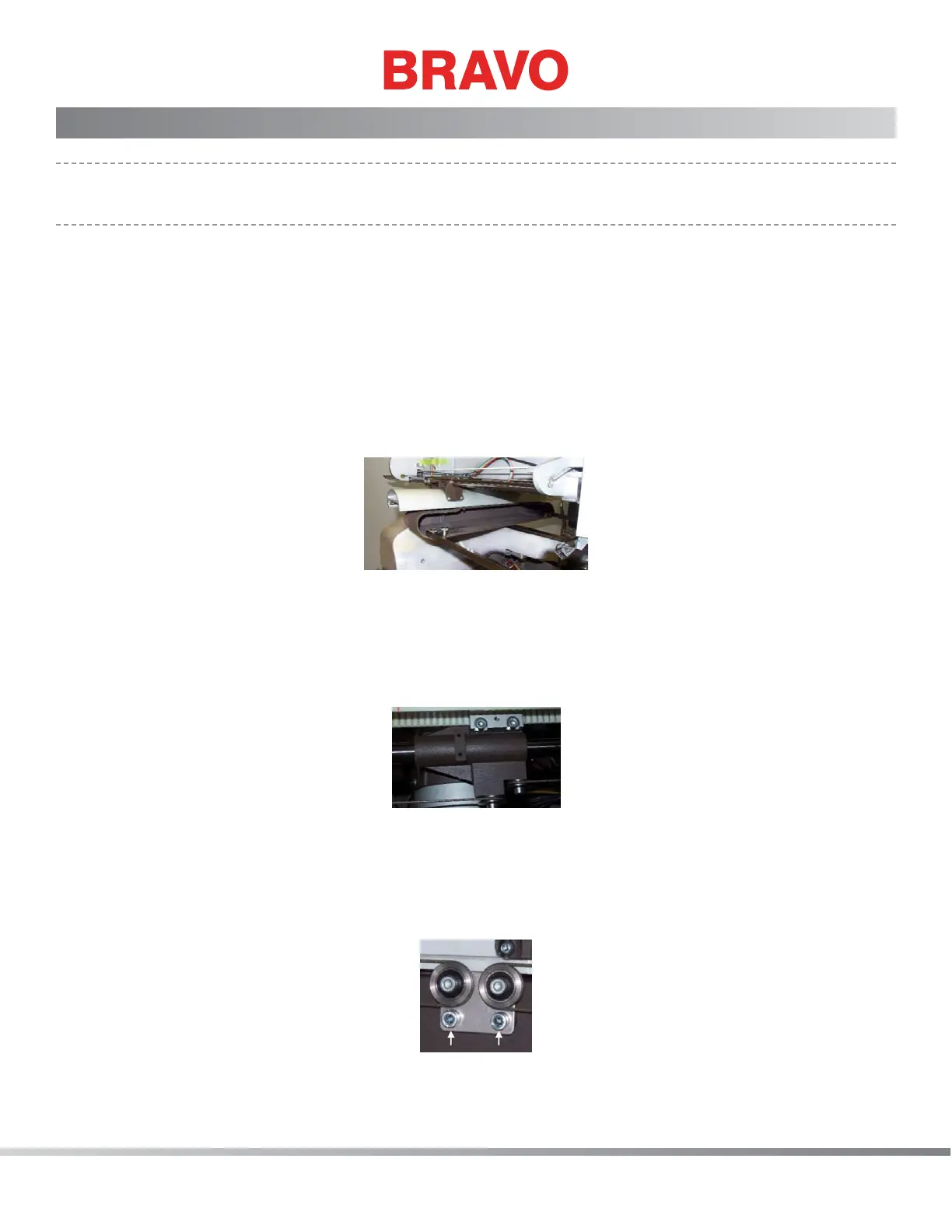

Figure 1 - X-Beam and Carriage Installed on Machine
1. Color change to Needle #16.
2. Turn the machine OFF.
3. If the machine has a hoop installed, remove it from the machine.
Figure 2 - Cable Bracket Removal
4. Remove the two screws holding the cable bracket on the rear of the x-carriage.
5. Remove the cap on either side of the beam and slide the x-carriage out of the beam.
6. Disconnect the x-home sensor optical switch harness from the X/Y home PCB.
Figure 3 - Bearing Block Assembly Installed on Machine
