Reciprocator
•
This repair requires timing and other adjustments and should be performed by an authorized
service technician.
Replacement Parts Needed:
• Reciprocator Repair Kit
Replacement Procedure
1. Remove the needle case as described in the Needle Case Removal section.
2. Remove the left and right upper arm covers.
3. Locate the reciprocator assembly as shown below.

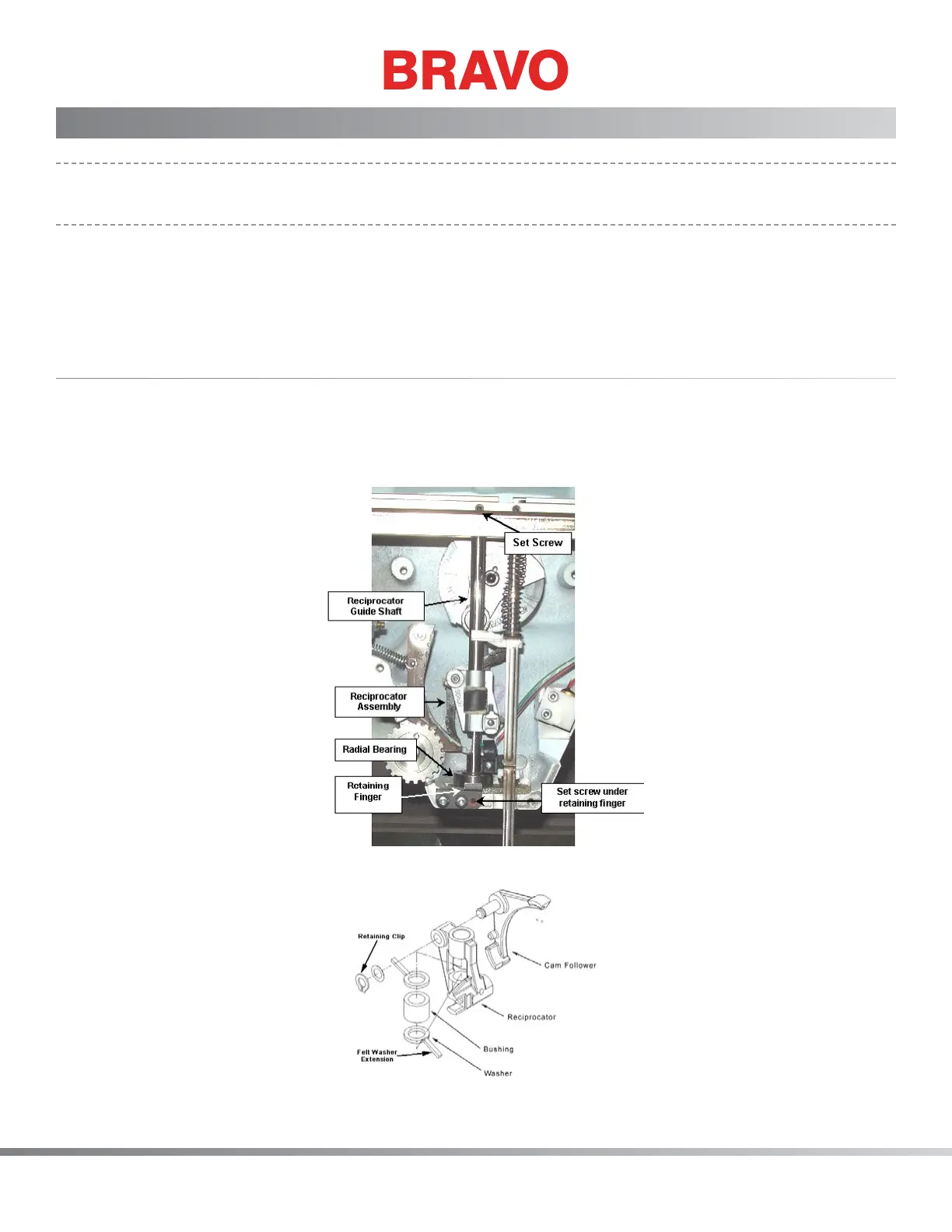

Figure 1 - Reciprocator Assembly Installed
Figure 2 - Reciprocator Assembly
