Oil Needle Bars (Upper)

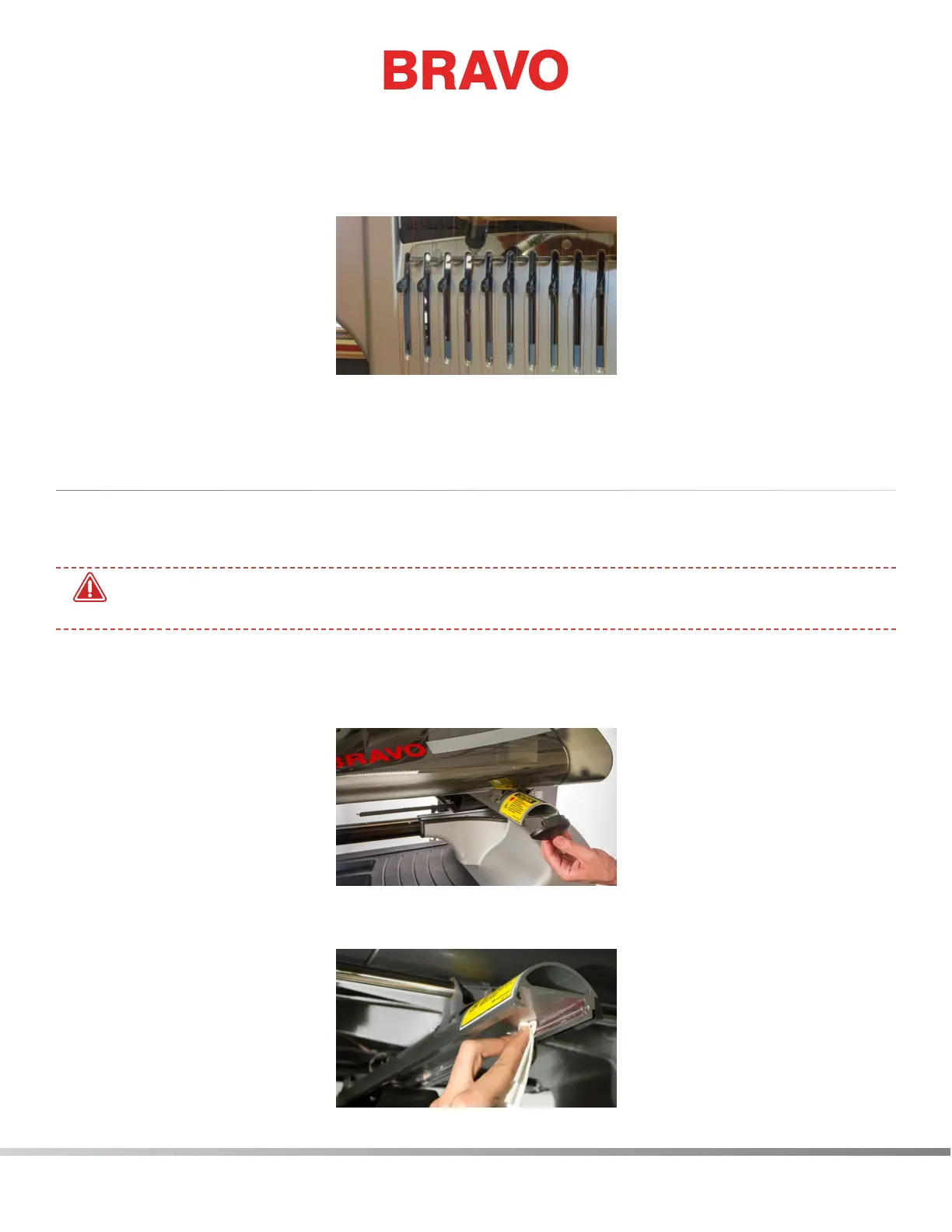

13. Using a small oiler bottle, apply one (1) drop of sewing machine oil to each of the sixteen (16)
needle bars by guiding the oiler applicator through the vertical slots of the needlecase cover just
below the take up lever arms as shown in the image.
14. Close out of the Head Timing Tab.
This completes the weekly maintenance procedure.
Monthly Maintenance
X-Drive Rails
•
WARNING!! If you currently have a hoop or clamping system on the machine, please remove it.
Failure to fully remove a clamping system can result in damage to the machine.
1. Move the x-beam all the way forward and all the way to the left using the hoop and the arrow
keys on the keypad.
2. Remove the end cap cover on the right side of the x-beam as shown in the image.
3. Wipe any lint, dust, and old grease from the front and back steel rails inside the x-beam as shown
in the image.
