46 of 271

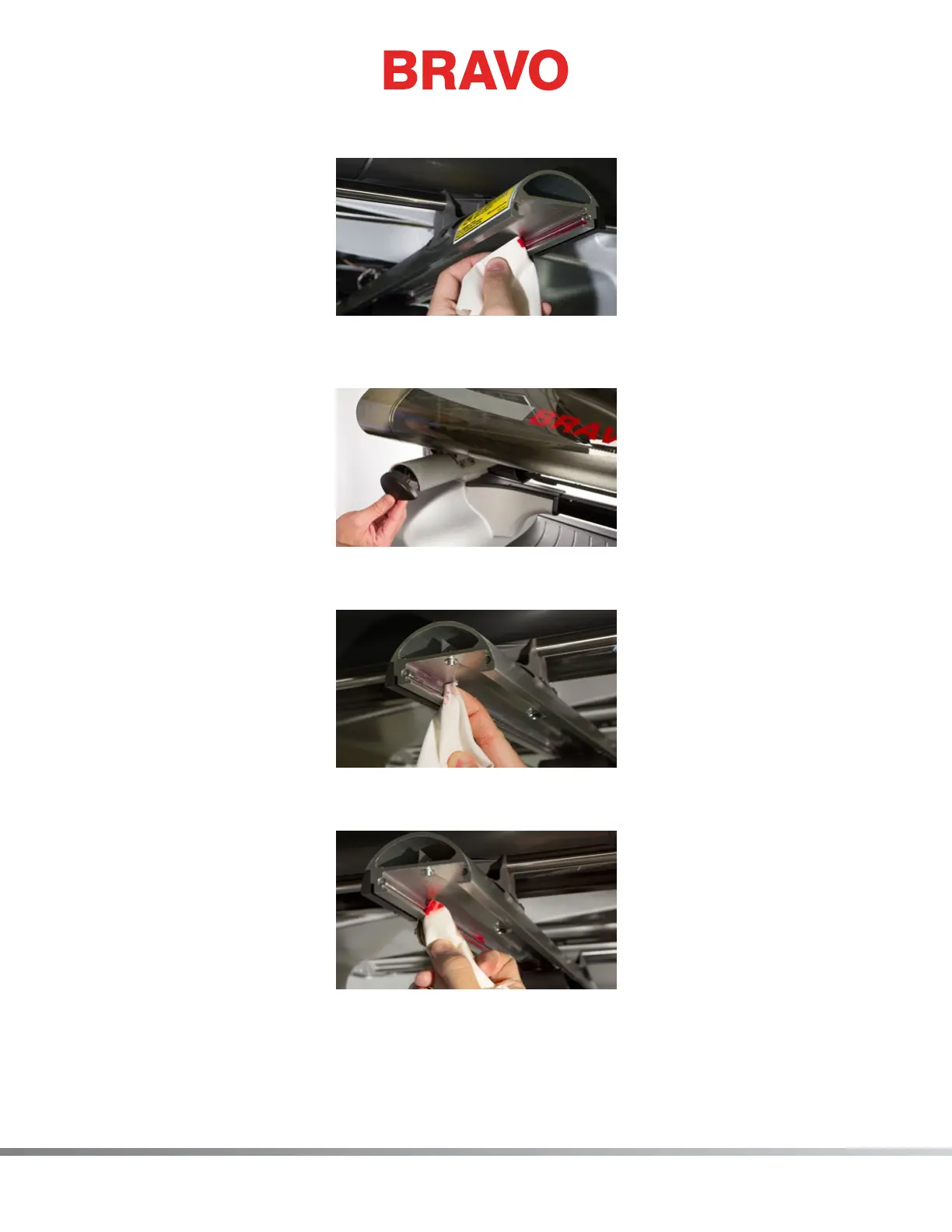

4. Using a clean piece of cloth, apply a thin lm of HP grease to the front and back steel rails inside
the x-beam as shown in the image.
5. Replace the end cap cover that was previously removed.
6. Remove the end cap cover on the left side of the x-beam as shown in the image.
7. Wipe any lint, dust, and old grease from the front and back steel rails inside the x-beam as shown
in the image.
8. Using a clean piece of cloth, apply a thin lm of HP grease to the front and back steel rails inside
the x-beam as shown in the image.
9. Replace the end cap cover that was previously removed.
10. Press the hoop and the center key on the keypad of the machine to move the arms back to center.
