19. Run the color change harness from the back side into the right access hole to the main PCB and
connect it at the color change connector socket located at J34 on the main PCB.

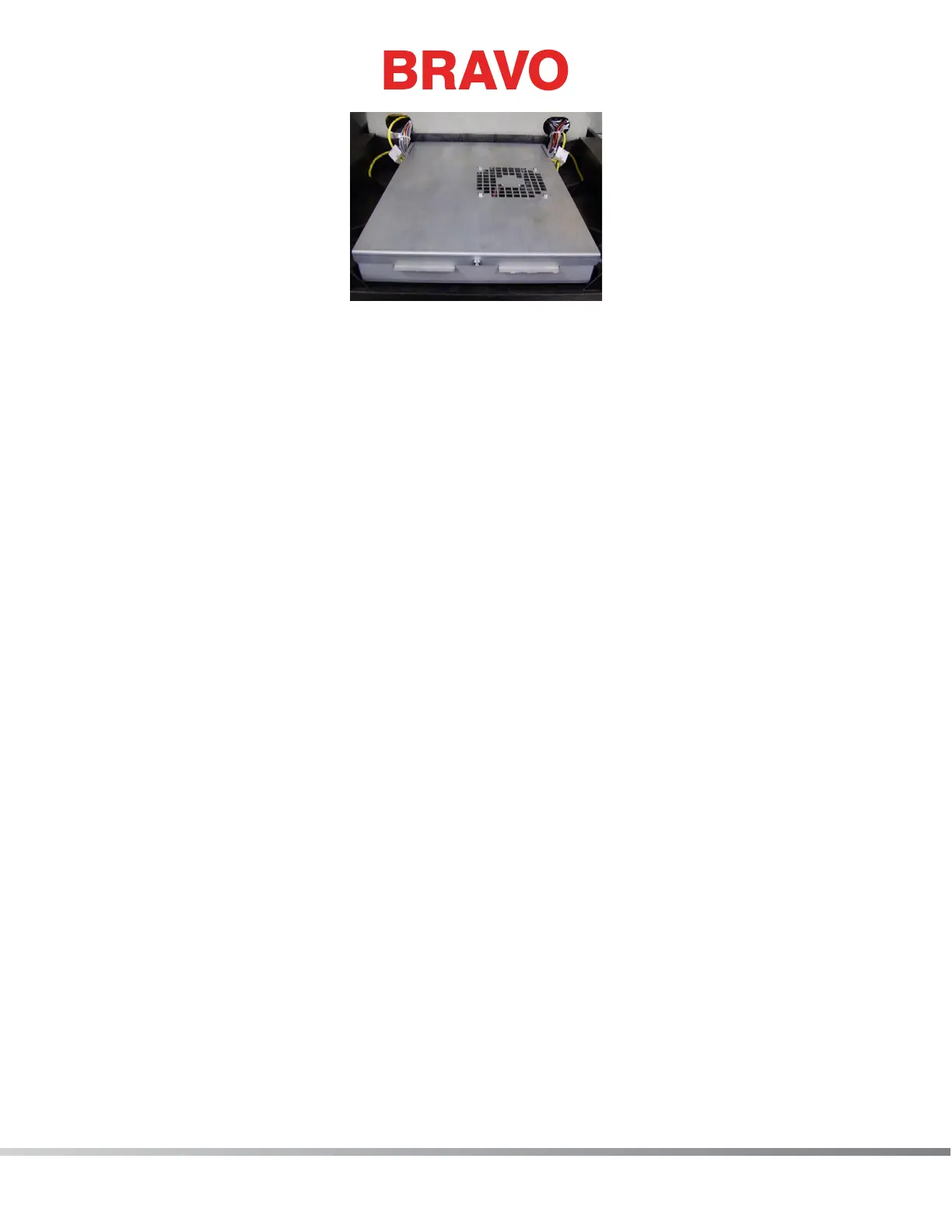

20. Install the covers in the reverse order that you removed them.
21. Turn the machine ON.
22. Do a short functional test and execute several color changes to ensure that the harness is properly
connected and works properly.
