Melco Bravo - Page 73

To Next Page

To Previous Page

73 of 271

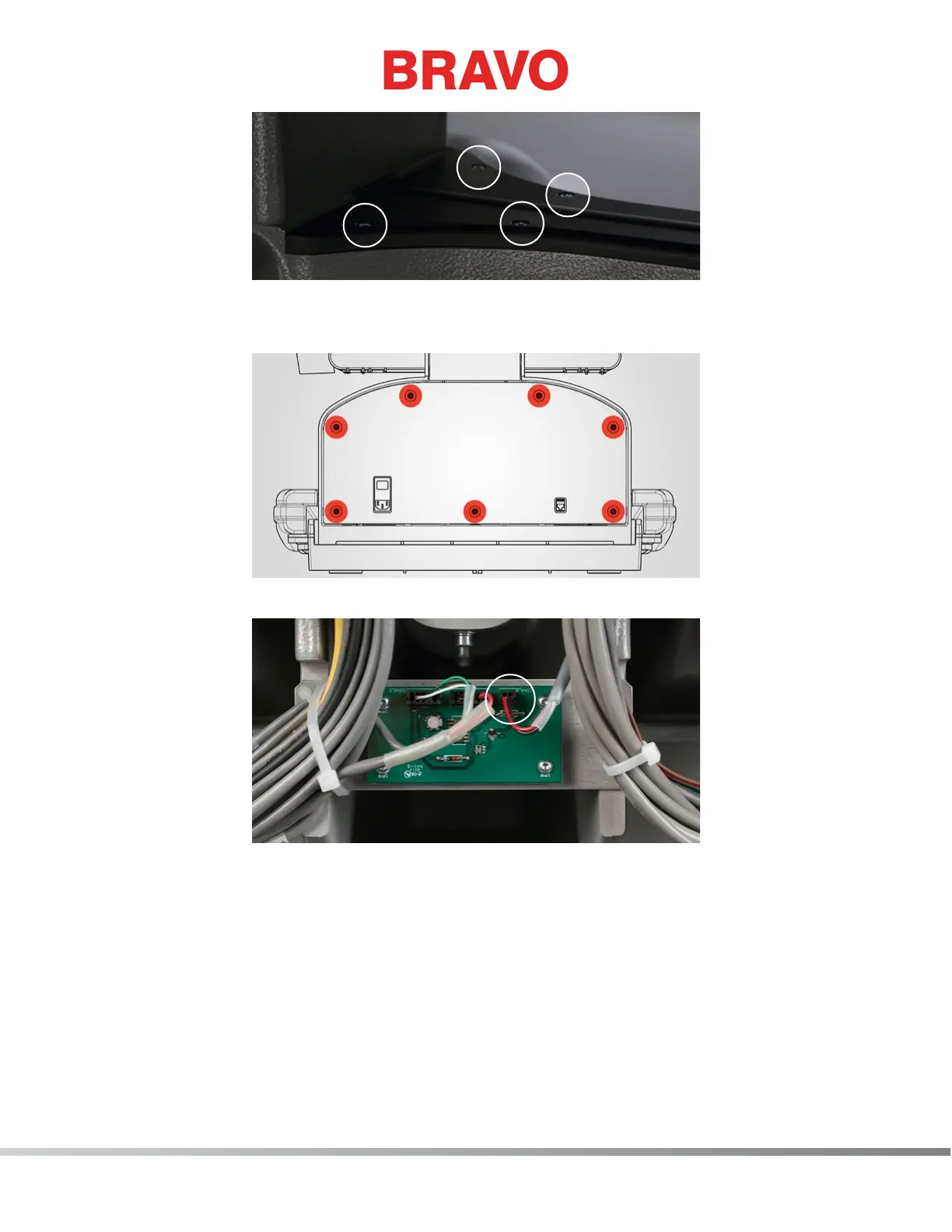

4. Disconnect the thread clamp solenoid assembly harness

5. Remove lower arm rear cover (7 M4 Socket head cap screws)

6. Disconnect the thread clamp harness from the thread clamp PCB

7. Install the new thread clamp harness following previous steps in reverse order
