61Z8047A
IA,a
IB,a
IC,a
MAIN:
Inom C.T.prim.,end a
MAIN:
Hardware fault
306 018
MAIN:
General starting
[ 036 000 ]
MAIN:
Meas. value rel. IN
[ 011 031 ]
c
c
[ 019 020 ]
MAIN:
Current IN,a p.u.
[ 005 141 ]
MAIN:
Current IN,a prim.
[ 005 121 ]

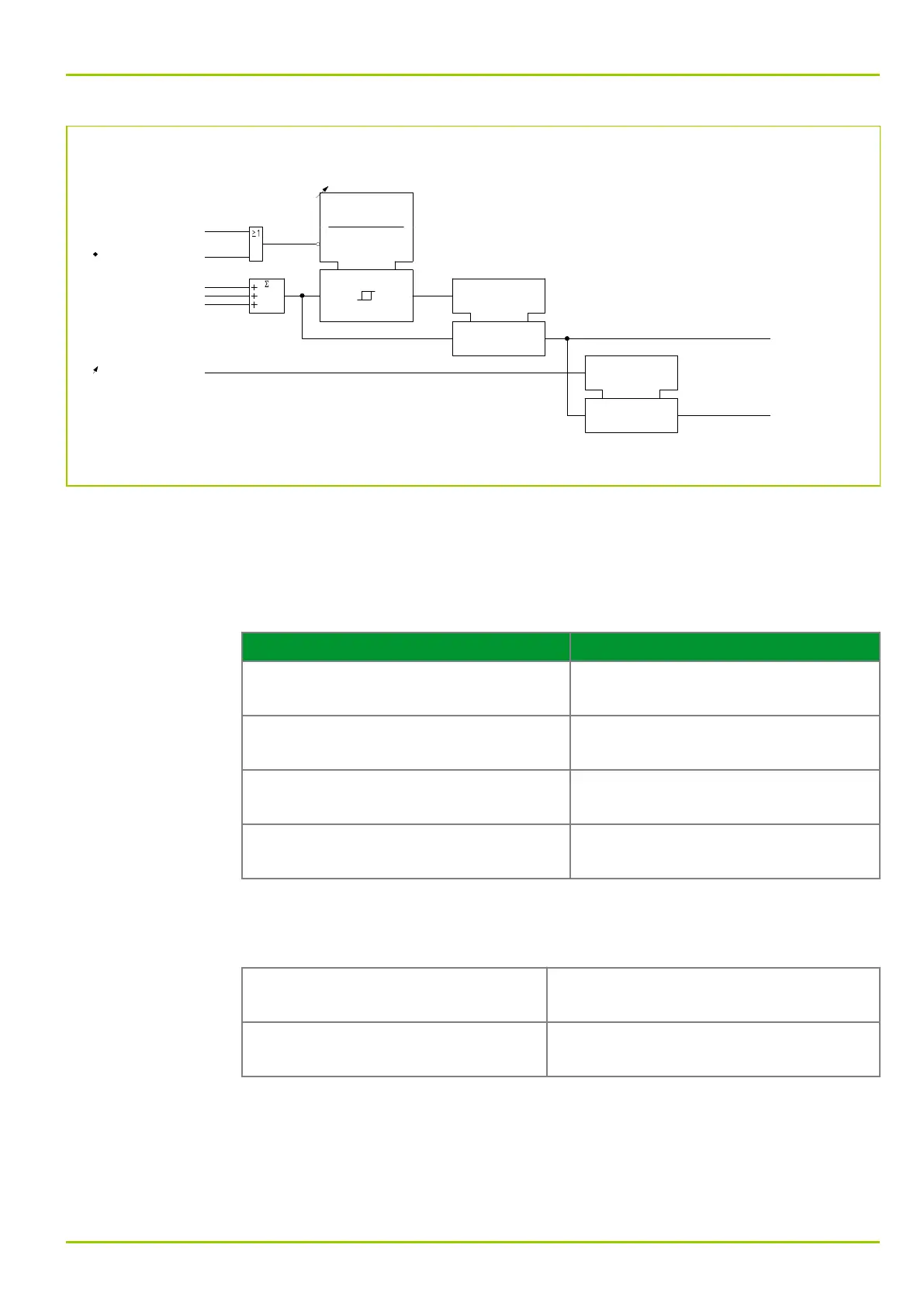

Fig. 3-45: Measured operating data for the residual currents, shown here for end a
3.12.3.3 Positive- and negative-sequence currents
The positive- and negative-sequence current measured values of all ends
(primary and per unit values) are determined continuously and displayed as
measured operating data:
End a End b
MAIN: Current Ineg a prim.
(005 125)
MAIN: Current Ineg b prim.
(005 129)
MAIN: Current Ipos a prim.
(005 127)
MAIN: Current Ipos b prim.
(005 134)
MAIN: Current Ineg a p.u.
(005 126)
MAIN: Current Ineg b p.u.
(005 130)
MAIN: Current Ipos a p.u.
(005 128)
MAIN: Current Ipos b p.u.
(005 135)
When the CB's contacts are open, it is also possible to force to zero the setting of
small positive- and negative-sequence current measured values if such
measured values are below additionally created settable thresholds.
Measured value relating to positive-
sequence current
MAIN: Meas.value rel. Ipos
(011 058)
Measured value relating to negative-
sequence current
MAIN: Meas.value rel. Ineg
(011 048)
