5-19Reference: The Preview Window

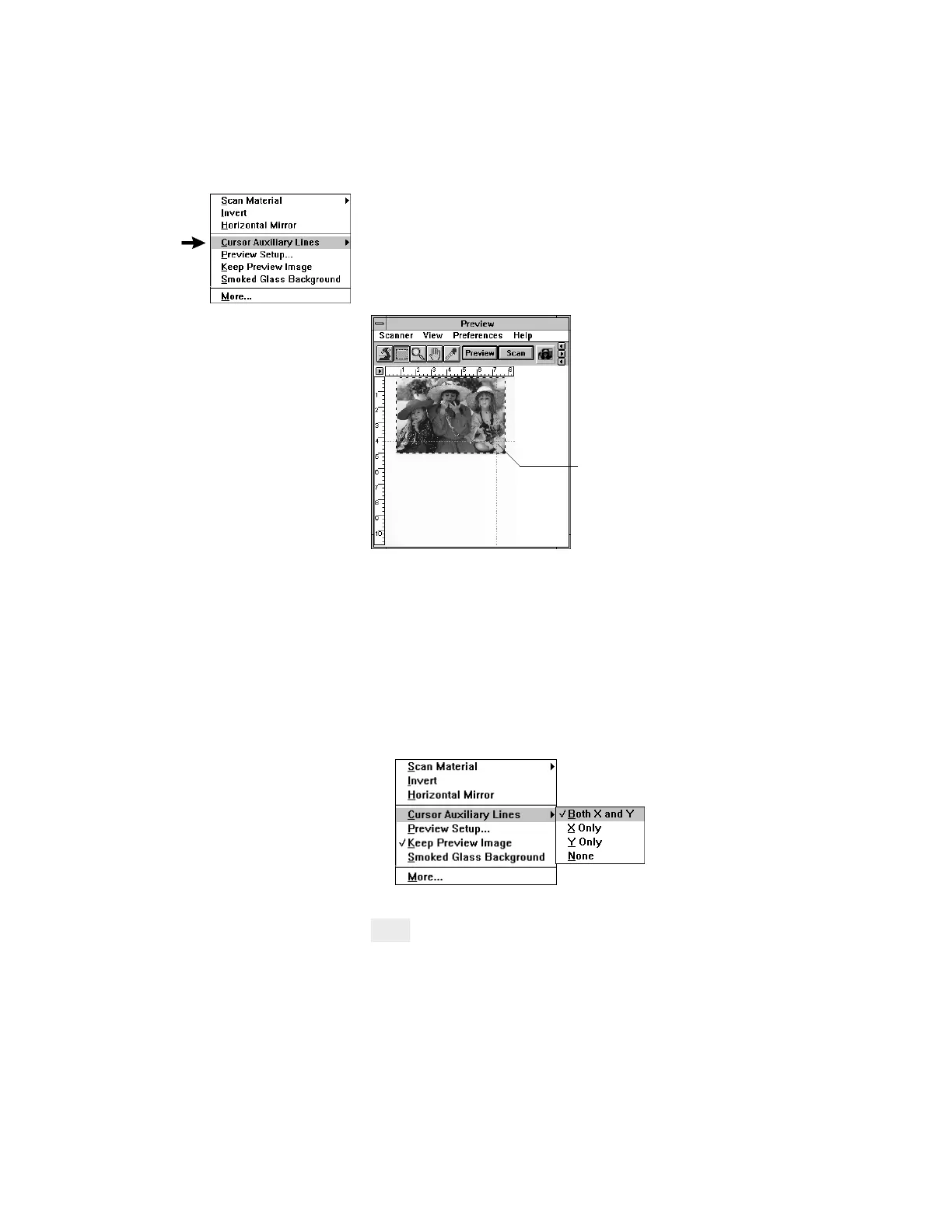

Cursor Auxiliary Lines
This command allows you to create horizontal and vertical
grid lines with your cursor to help define a scan frame
precisely. Using the grid lines, you can also read the mea-
surements off your ruler more easily.
To use this feature:
1 Choose the Cursor Auxiliary Lines command in the
Preferences menu. From the submenu that appears,
select how the cursor lines will appear.
• On both x (horizontal) axis and y (vertical) axis
• On x axis only
• On y axis only
• None (no cursor lines)
Cursor auxiliary lines
on the x and y axis
Note
If your Preview window is close to the right edge of your
monitor, the Cursor Auxiliary Lines submenu may appear on
the left side instead of on the right (as shown above). To
resolve this, move the Preview window towards the left to
create enough room for the submenu to drop down on the
right.
