Hardware Installation 2-43
Components of the ScanMaker 45t
The following items are included with your scanner package: a
standard film holder, a glass film holder, several film mounts, and
adhesive strips.

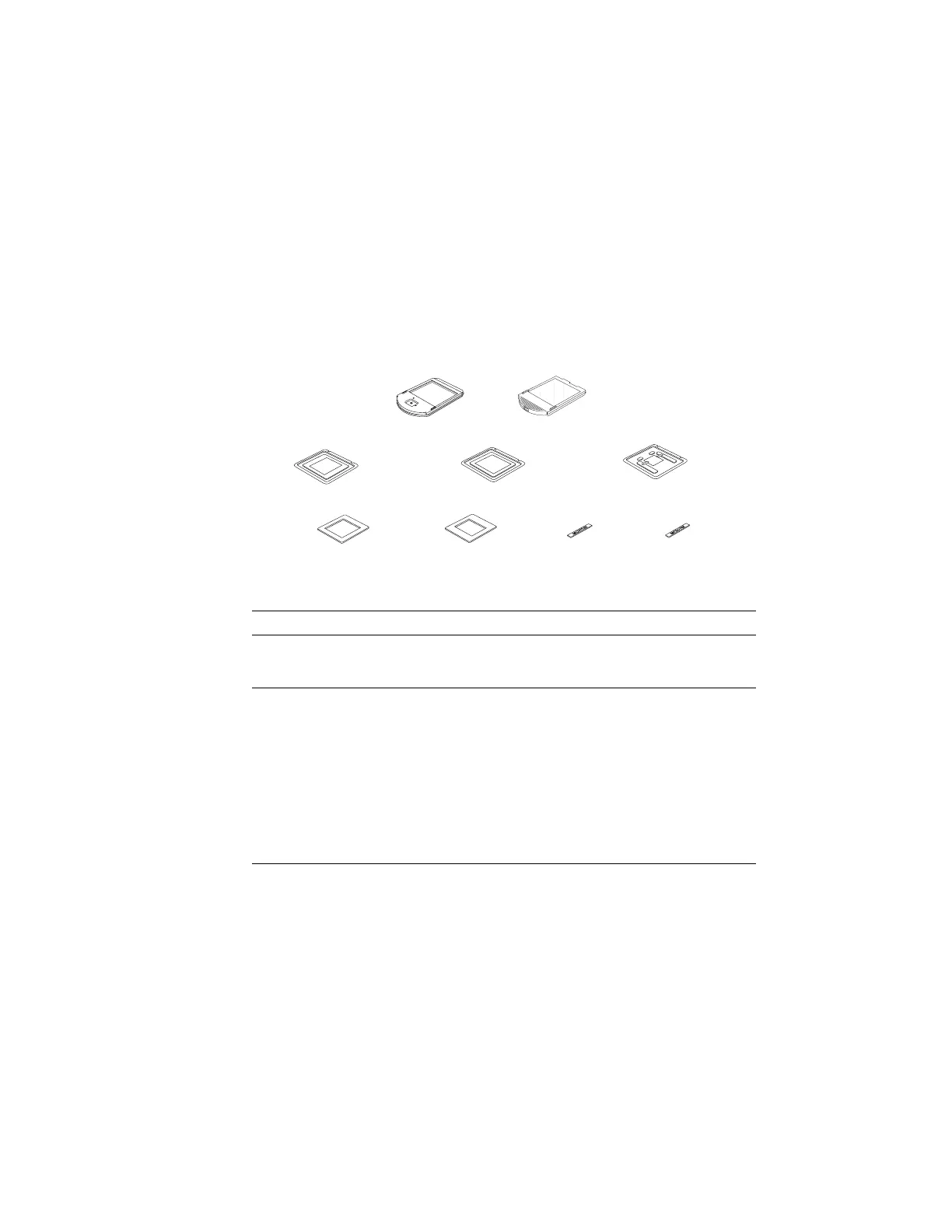

See illustrations below and check to see that you have all of the
items.
Item Qty Purpose
Glass film holder 1 To scan irregularly sized film up to 5" x 5"
Vinyl strips 4 To secure film to the glass film holder
Standard film holder 1 To scan standard sized film 60 mm x 60 mm
Film mount #1 1 To hold 60 mm x 60 mm film
Film mount #2 1 To hold 60 mm x 70 mm film
Film mount #3 1 To hold 35 mm x 35 mm film
35 mm slide mount 1 To enclose unmounted 35 mm slides
35 mm slide spacer 1 To raise the thickness of mounted 35 mm
slides so that slides can fit on film mount #3.
Magnetic strips 2 To secure film to the standard film holder
Glass film holder
Film mount #1 (60 mm x 60 mm)
THIS SIDE UP
THIS SIDE UP
Film mount #2 (60 mm x 70 mm)
THIS SIDE UP
Film mount #3 (for 35 mm slides)
UNLOCK
LOCK
Standard film holder
35 mm metal slide spacer
35 mm slide mount
Magnetic strips (2)
Vinyl strips (4)
