Microtronix Access User Guide
The Access 1000 and 4000 may also operate from an AC power source using the safety and agency
approved (CSA/UL etc.) external 100-240 VAC switching power supply.

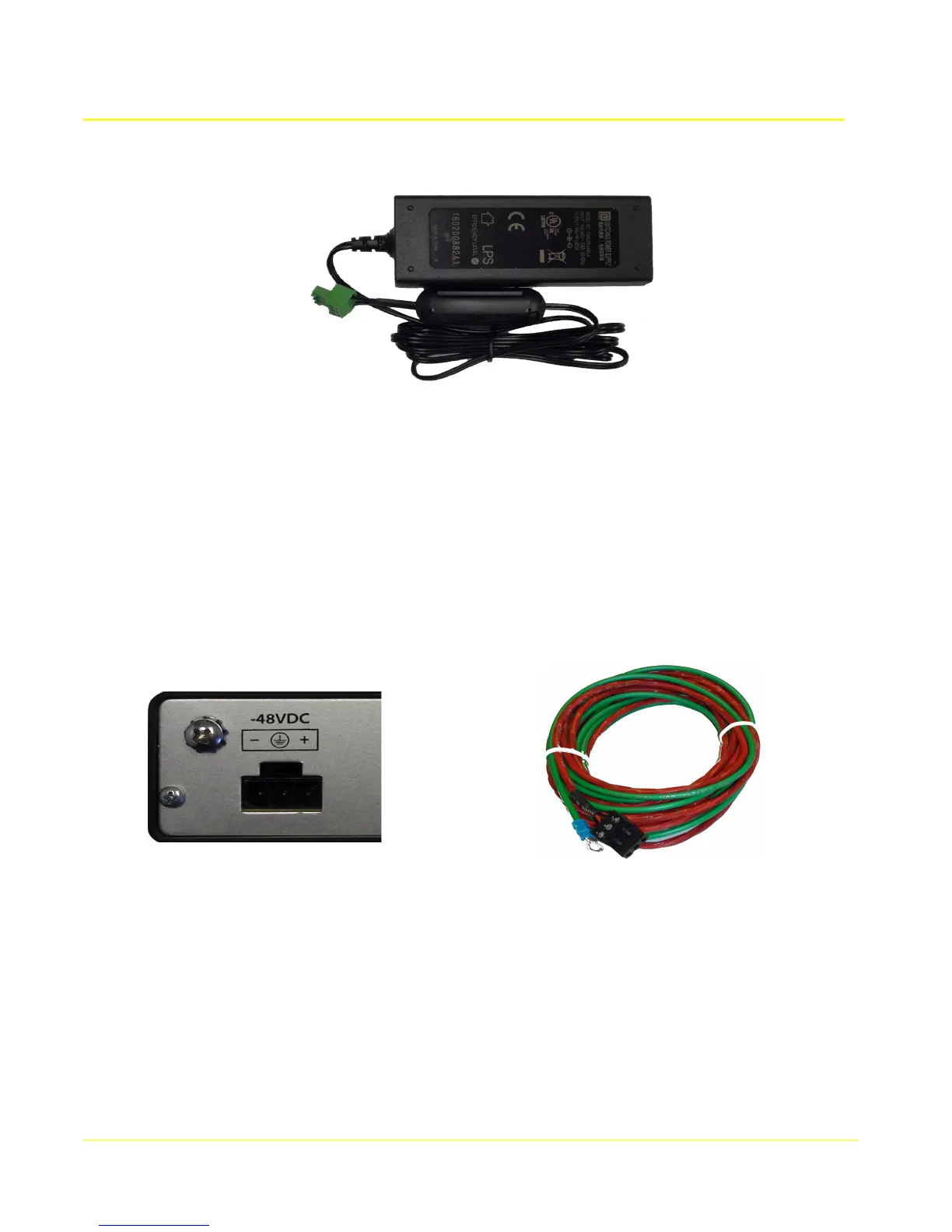

Model 1000-Sxx -48VDC AC power supply
The Access 4000 wire harness (part number W4002) has a Molex # 39860-0703 (Digi-Key # WM5855-
ND) female jack.
Figure 3: Model 4002-Nxx -48VDC power connector and W4002 wire harness
16
