Microtronix Access User Guide
1.2 Hardware Features and Interfaces

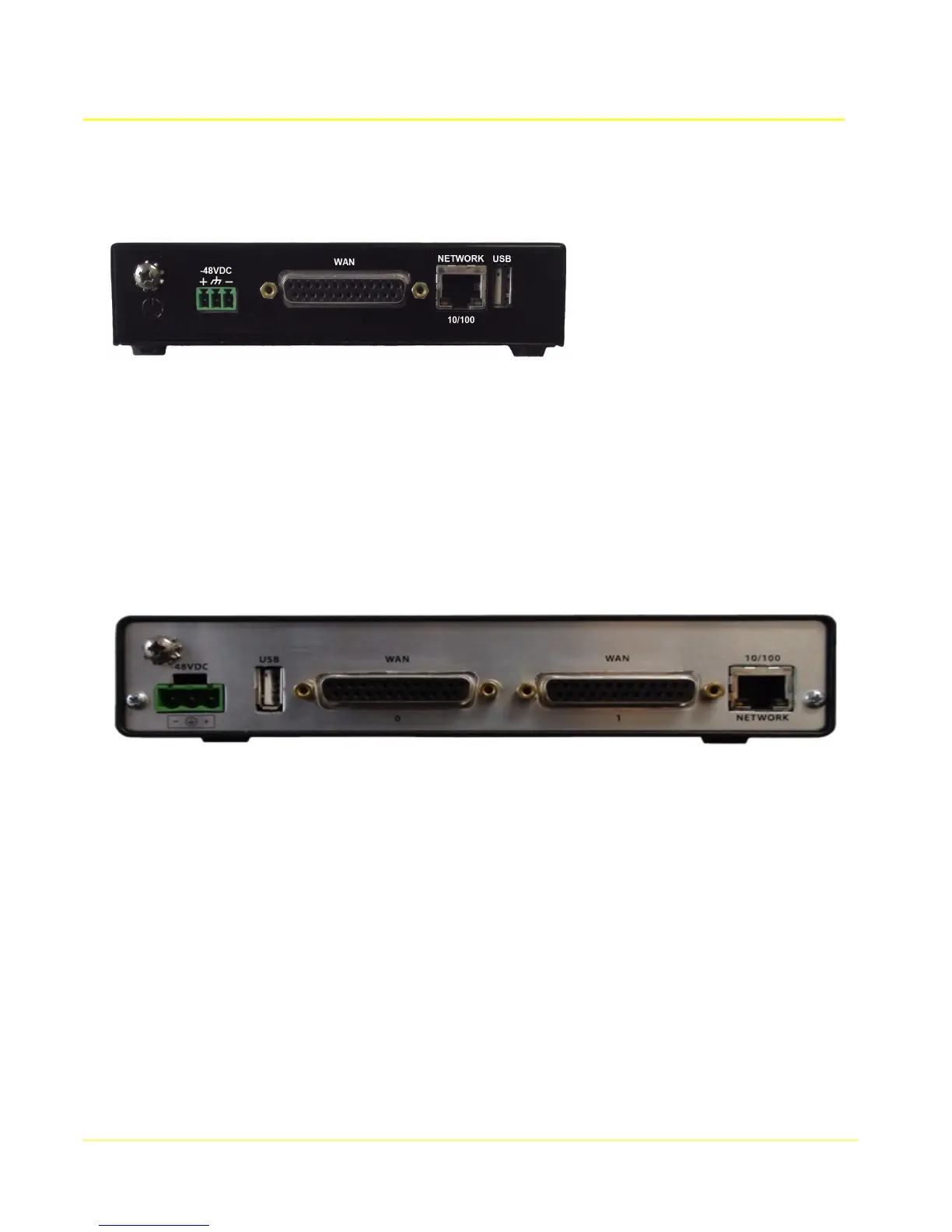

1.2.1 Model 1000-S04 and 1000-N04
● -48VDC connector for Central Office (CO) installation
● S04 includes 100-240VAC adapter, N04 includes -48VDC cable
● 10/100 Base-T Ethernet - RJ45
● WAN (console) interface - DB25F RS530[A] configurable for RS232/V.24, X.21, V.35, RS449/V.36
● USB Host Port interface - for additional serial interfaces or storage device
● Rack-mountable using 19” or 25” shelf
1.2.2 Model 4002-S04 and 4002-N04
● -48VDC connector for Central Office (CO) installation
● S04 includes 100-240VAC adapter, N04 includes -48VDC cable
● 10/100 Base-T Ethernet – RJ45
● 2 - WAN interfaces - DB25F RS530[A] configurable for RS232/V.24, X.21, V.35, RS449/V.36
● USB Host Port interface for additional serial interfaces or storage device
● Rack-mountable using 19” or 25” shelf
1.2.3 Model 4002-N04-RM
● 19” 1U rack mount enclosure (25” rack extension available)
● -48VDC connector for Central Office (CO) installation
● 10/100 Base-T Ethernet – RJ45
● 2 WAN interfaces - DB25F RS530[A] configurable for RS232/V.24, X.21, V.35, RS449/V.36
● Internally-mounted USB Host port interface for internal flash drive or 4 port serial expansion
