Microtronix Access User Guide

11 Cables and Connectors

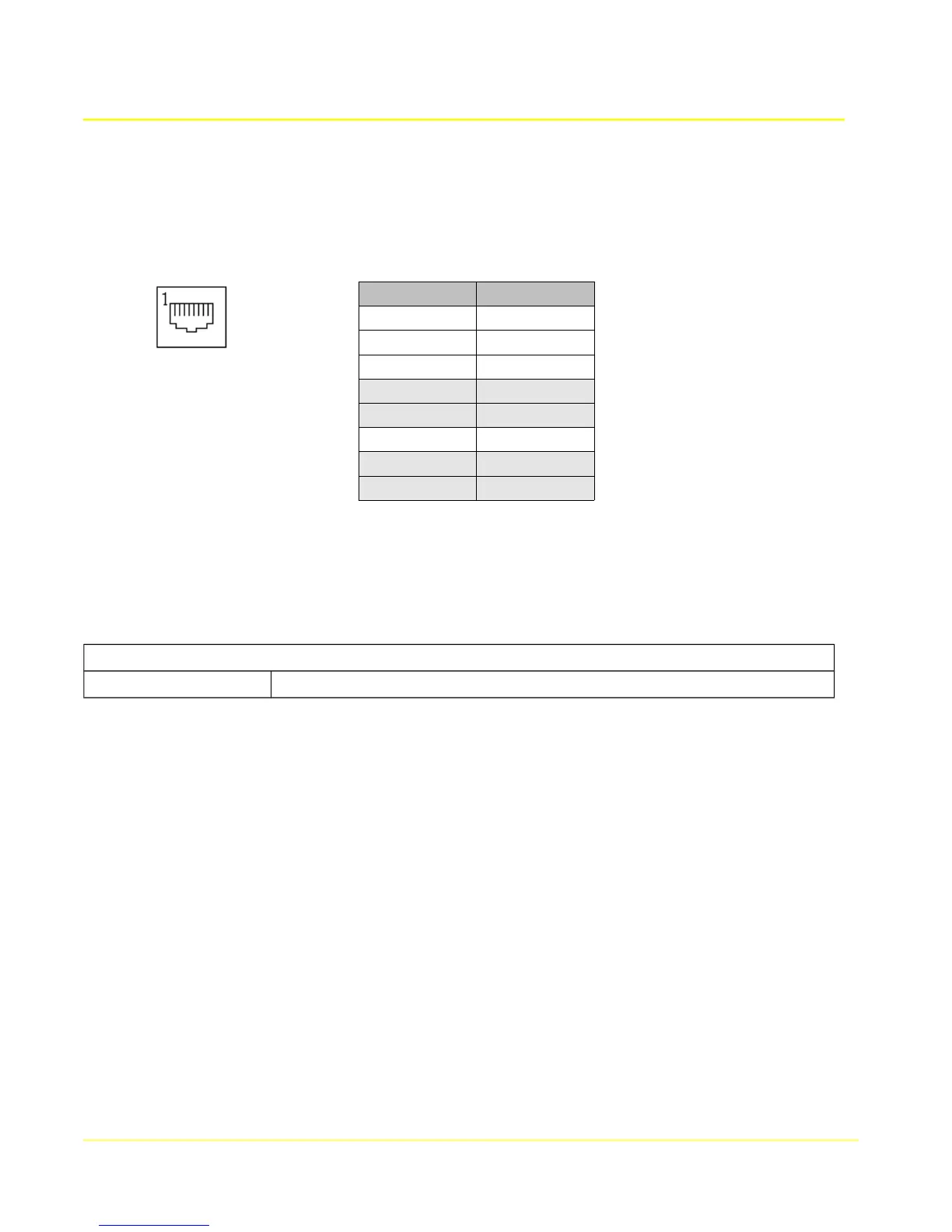

11.1 NETWORK - 10/100 Ethernet Interface

The 10/100 Base-T Ethernet port provides a standard twisted pair interface on an RJ45 socket.

Pin # Function

1 Transmit +

2 Transmit -

3 Receive +

4 n/c

5 n/c

6 Receive -

7 n/c

8 n/c

11.1.1 Ethernet Cables

A standard RJ45 Ethernet patch cable (straight-through) may be used to connect to a hub/switch, or

direct connection to a PC for initial configuration.

Ethernet cable part numbers

811-W6002-06 RJ45 Ethernet straight through patch cable (blue), 6 ft
